07- Body - Fender Kit

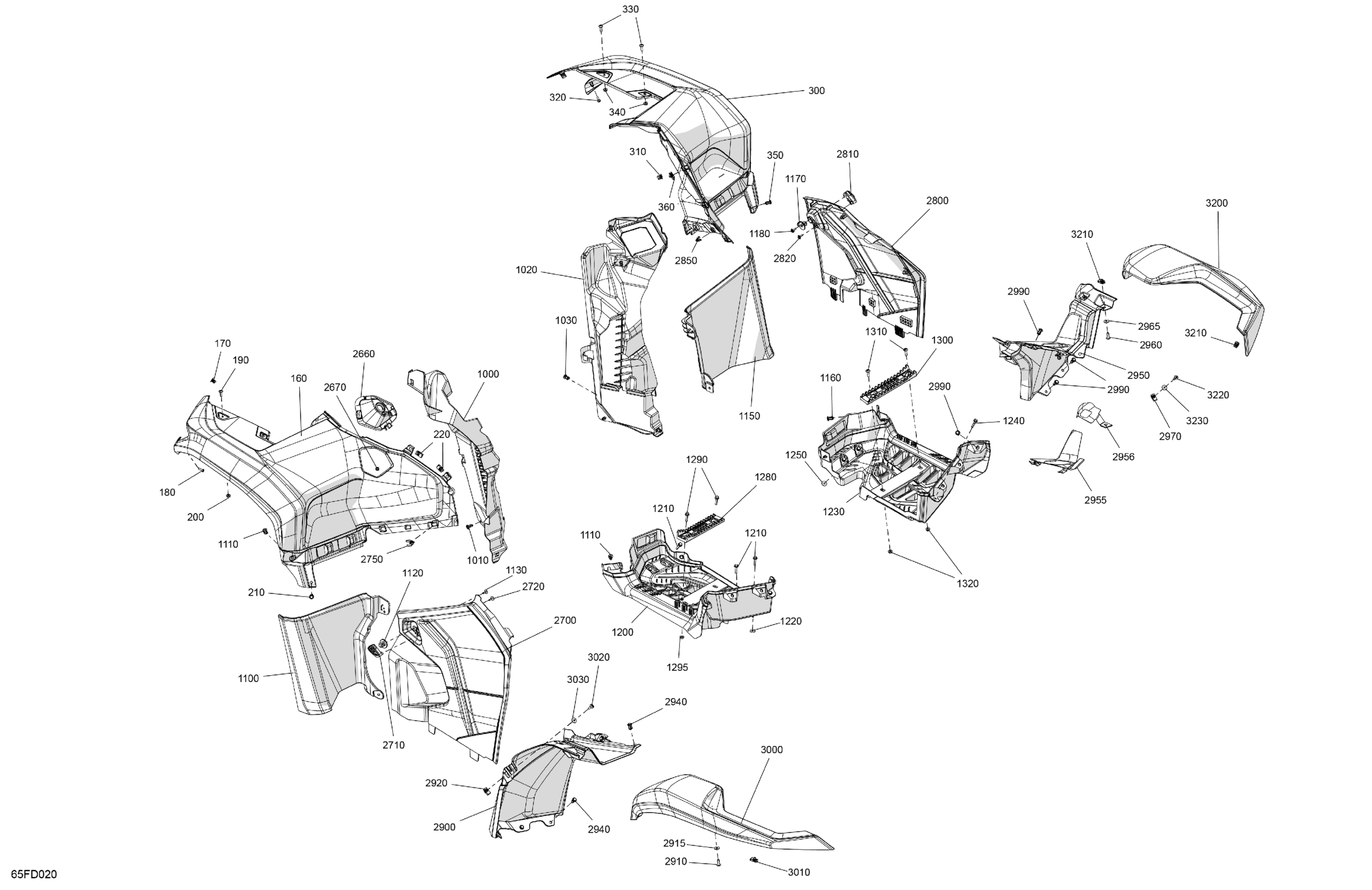

Can-Am Off-Road CE - Outlander PRO HD7 4X4 - 1MRF - XU Package - Tundra Green, 2024 07- Body - Fender Kit Diagram
#
160
Tundra Green, LH Front Fender Kit
715009500
$204.99
170
Edge Clip
517302785
$0.88
180
Torx Screw K50 X 16
250000720
$1.69
190
Screw Torx M6 X 20
250001257
$1.68
200
Hex. Flange Nut M6
233161414
$2.11
210
Tuflok Plastic Rivet
293150230
$1.47
220
Panel Nut M6 X 1.0
250100198
$2.11
300
Tundra Green, RH Front Fender Kit
715009521
$204.99
310
Edge Clip
517302785
$0.88
320
Torx Screw K50 X 16
250000720
$1.69
330
Screw Torx M6 X 20
250001257
$1.68
340
Hex. Flange Nut M6
233161414
$2.11
350
Tuflok Plastic Rivet
293150230
$1.47
360
Panel Nut M6 X 1.0
250100198
$2.11
1000
LH Inner Fender
705013311
$29.99
1010
Tuflok Plastic Rivet
293150230
$1.47
1020
LH Inner Fender
705013312
$29.99
1030
Tuflok Plastic Rivet
293150230
$1.47
1100
LH Upper Footstep
705014743
$82.99
1110
Tuflok Plastic Rivet
293150230
$1.47
1120
Rear Stud
517305985
$15.36
1130
Screw M4 X 16
250000725
$3.49
1150
RH Upper Footstep
705014744
$82.99
1160
Tuflok Plastic Rivet
293150230
$1.47
1170
Rear Stud
517305985
$15.36
1180
Screw M4 X 16
250000725
$3.49
1200
LH Footboard
705012789
$189.99
1210
Hex Flange Screw M6 X 25
250000841
$7.51
1220
Stainless Steel Flat Washer
234062670
$2.11
1230
RH Footboard
705012790
$139.99
1240
Hex Flange Screw M6 X 25
250000841
$7.51
1250
Stainless Steel Flat Washer
234062670
$2.11
1280
Footrest
705013651
$4.09
1290
Hex Flange Screw M6 X 25
250000841
$7.51
1295
Hex. Flange Nut M6
233161414
$2.11
1300
Footrest
705013651
$4.09
1310
Hex Flange Screw M6 X 25
250000841
$7.51
1320
Hex. Flange Nut M6
233161414
$2.11
2660
Switch Support
705014661
$13.49
2670
Pressure Nut
250100163
$0.98
2700
LH Panel
705019073
$54.99
2710
LH Rear Latch
517305774
$18.49
2720
Screw M4 X 16
250000725
$3.49
2750
Clip
517306478
$1.09
2800
RH Panel
705019064
$54.99
2810
RH Rear Latch
517305773
$18.49
2820
Screw M4 X 16
250000725
$3.49
2850
Clip
517306478
$1.09
2900
LH Rear Fender Support Kit
715009538
$86.99
2910
Torx-Truss M/S M6 X 25
250001000
$5.29
2915
Flat Washer 6 mm
234062410
$0.77
2920
Panel Nut M6 X 1.0
250100198
$2.11
2940
Tuflok Plastic Rivet
293150230
$1.47
2950
RH Rear Fender Support
705014734
$83.99
2955
Heat Shield
705018605
$3.89
2956
Heat Shield
705018563
$3.89
2960
Torx-Truss M/S M6 X 25
250001000
$5.29
2965
Flat Washer 6 mm
234062410
$0.77
2970
Panel Nut M6 X 1.0
250100198
$2.11
2990
Tuflok Plastic Rivet
293150230
$1.47
3000
Tundra Green, LH Rear Fender | Tundra Green Model
705017171
$139.99
3010
Panel Nut M6 X 1.0
250100198
$2.11
3020
Screw Torx M6 X 20
250001257
$1.68
3030
Flat Washer 6 mm
234062410
$0.77
3200
Tundra Green, RH Rear Fender | Tundra Green Model
705017172
$139.99
3210
Panel Nut M6 X 1.0
250100198
$2.11
3220
Screw Torx M6 X 20
250001257
$1.68
3230
Flat Washer 6 mm
234062410
$0.77
