06- Frame - System

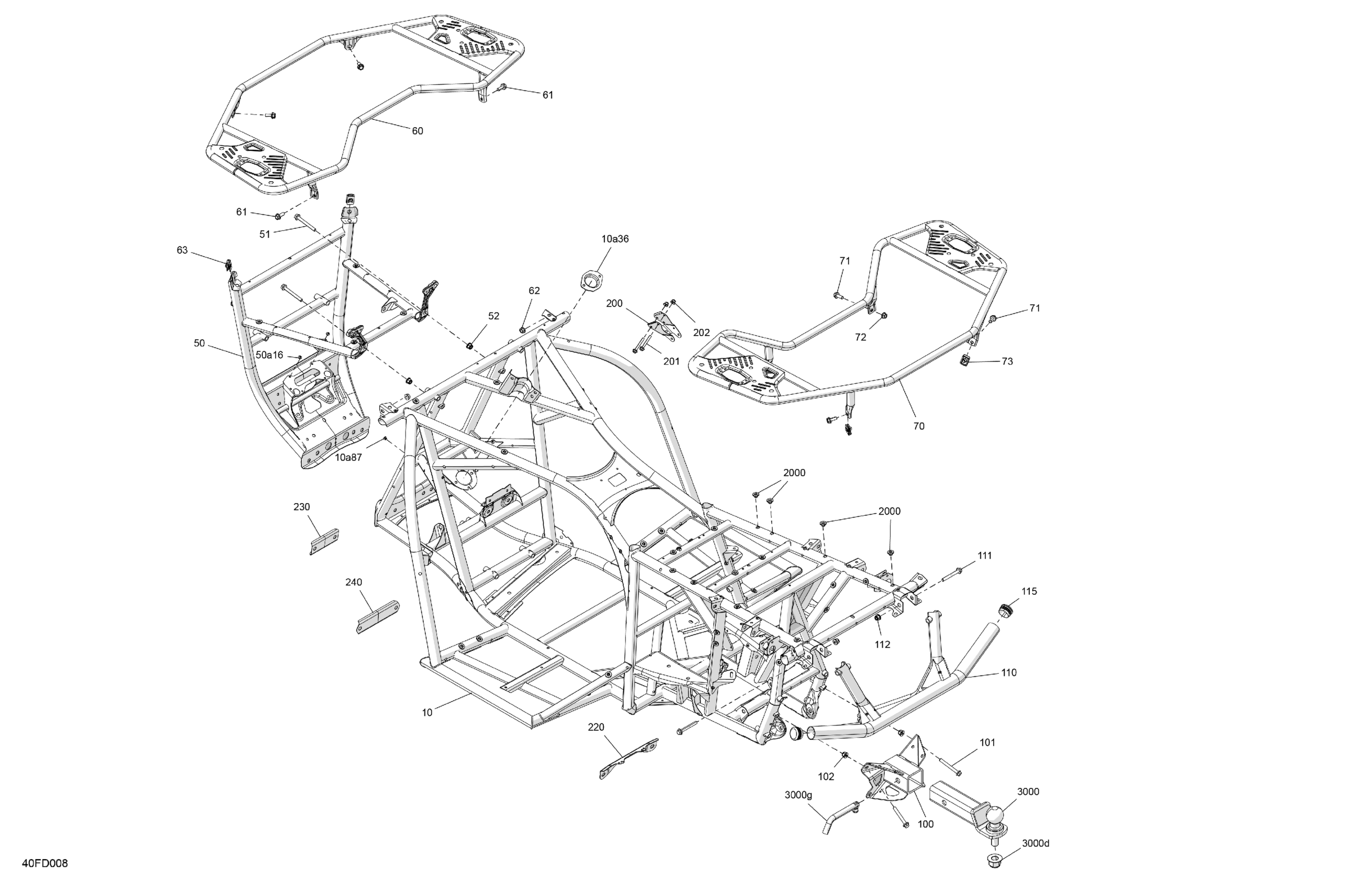

Can-Am Off-Road CE - Outlander PRO HD7 4X4 - 1MRF - XU Package - Tundra Green, 2024 06- Frame - System Diagram
#
Description
Price
10
Chassis | Includes 10 to 10a87
705211691
$1,049.99
10a36
Lower Bearing Support
709402713
$43.99
10a87
Pop Rivet 3/16"
390402200
$0.35
50
Front Bumper | Includes 50 to 50a16
705208429
$264.99
50a16
Pop Rivet 3/16"
390402200
$0.35
51
Hex. Flange Screw M8 X 70
207687044
$7.41
52
Hex. Flange Elastic Nut M8
233281414
$1.47
60
Deep Black, Front Luggage Rack
705208148
$264.99
61
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
$1.69
62
Hex. Flange Nut M8
233181414
$1.15
63
Panel Nut M8 X 1.25
250100236
$4.13
70
Deep Black, Rear Luggage Rack
705208247
$248.99
71
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
$1.69
72
Hex. Flange Nut M8
233181414
$1.15
73
Panel Nut M8 X 1.25
250100236
$4.13
100
Trailer Hitch Kit
715009558
$122.99
101
Hex. Flange Screw, M8 X 65
207686544
$13.16
102
Hex. Flange Elastic Nut M8
233281414
$1.47
110
Deep Black, Rear Bumper Kit
715009554
$121.49
111
Hex. Flange Screw, M8 X 65
207686544
$13.16
112
Hex. Flange Elastic Nut M8
233281414
$1.47
115
Cap
705202455
$5.69
200
Lever Support
705208228
$12.49
201
Hex. Flange Screw M6 X 45
207664544
$1.46
202
Hex. Flange Elastic Nut M6
233261466
$2.00
220
Rear Suspension Arm Reinforcement
705209026
$5.29
230
Front Upper Suspension Arm Reinforcement
705211665
$5.49
240
Front Lower Suspension Arm Reinforcement
705211664
$5.49
2000
Threaded Insert
293450383
$2.61
3000
Trailer Hitch Ass'y | Includes 3000 to 3000g
705211827
$122.99
3000d
Elastic Flange Nut M20
250100104
$12.66
3000g
Hitch Pin
705204490
$52.99
