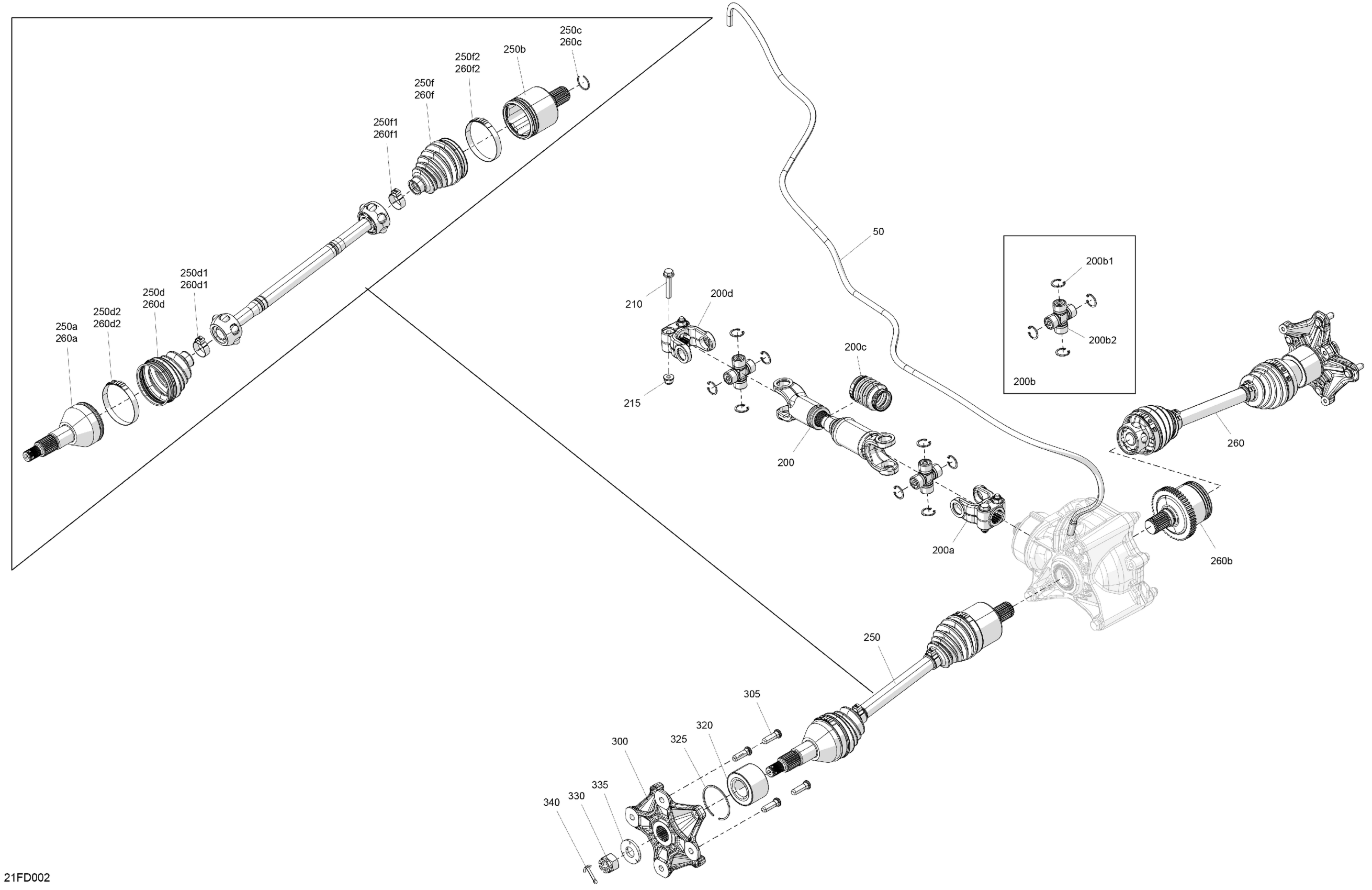

Can-Am CE - Outlander PRO HD7 4X4 - 1MRF - XU Package - Tundra Green, 2024 Drive - Rear - Common Parts Diagram

Description

Price

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

200

Rear Drive Axle

705502927

$264.99

200a

Connecting Yoke 18Th

715900938

$24.99

200b

Universal Joint Ass'y

715900911

$46.49

200b1

Circlip

715900912

Unavailable

200b2

Universal Joint

715900913

Unavailable

200c

Ball Joint Boot ( 927, 982 )

715900942

$14.30

200d

Connecting Yoke 20Th

715900939

$24.99

210

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.72

215

Hex. Elastic Flange Nut M8

233281416

$1.48

250

CV Joint | Includes 250 to 250f2

705502928

$243.99

250a

CV Joint Fix

715500461

$259.49

250b

Plunging Joint

715500462

$259.49

250c

Circlip Joint

715500463

$5.35

250d

CV Boot Joint Kit | Includes 250d to 250d2

715500464

$42.49

250d1

Clamp Small

715500475

$5.29

250d2

Clamp Large

715500476

$4.76

250f

CV Boot Joint Kit | Includes 250f to 250f2

715500465

$42.49

250f1

Clamp Small

715500475

$5.29

250f2

Clamp Large

715500477

$5.29

260

CV Joint | Includes 260 to 260f

705503078

$275.49

260a

CV Joint Fix

715500461

$259.49

260b

Plunging Joint

715500466

Unavailable

260c

Circlip Joint

715500463

$5.35

260d

CV Boot Joint Kit | Includes 250d to 250d2

715500464

$42.49

260d1

Clamp Small

715500475

$5.29

260d2

Clamp Large

715500476

$4.76

260f

CV Boot Joint Kit | Includes 250f to 250f2

715500465

$42.49

260f1

Clamp Small

715500475

$5.29

260f2

Clamp Large

715500477

$5.29

300

Wheel Hub

705503257

$101.49

305

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

320

Ball Bearing

293350150

$52.99

325

Circlip

293370019

$4.68

330

Hex. Flange Castellated Nut M18

232291413

$7.98

335

Conical Spring Washer M18

250200171

$7.65

340

Cotter Pin

250400071

$2.11
