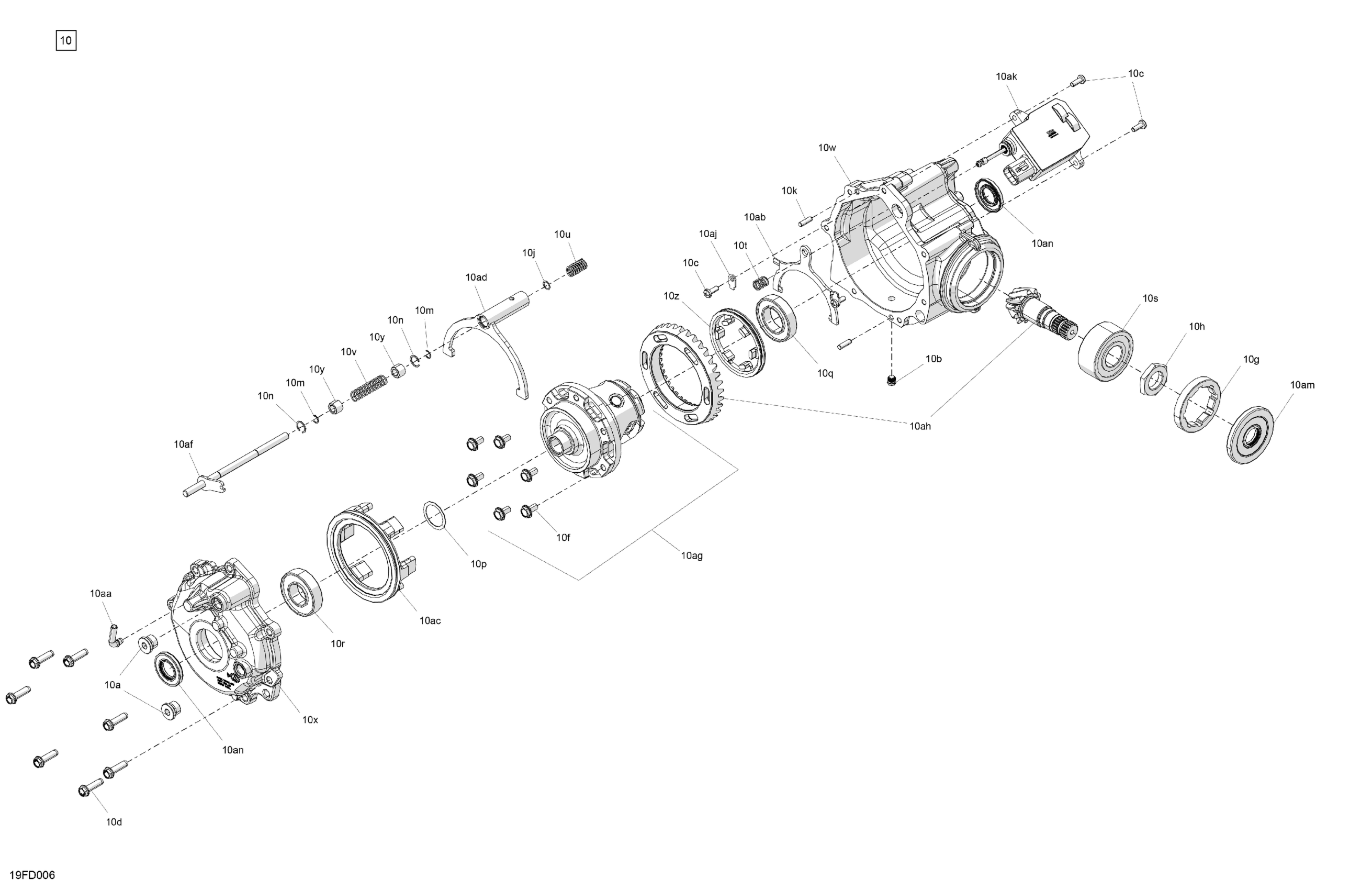

Can-Am CE - Outlander PRO HD7 4X4 - 1MRF - XU Package - Tundra Green, 2024 Drive - Front - Differential Parts Diagram

Description

Price

Differential | Includes 10 to 10an

705403529

$1,279.07

10a

Fill Level Plug

705501889

$18.63

10b

Fill Level Plug M10

715900563

$25.34

10c

Torx Screw M6 X 16

705402845

$9.25

10d

Bolt

705501886

$6.30

10f

Custom Hex Screw Flange Head

715900798

$2.66

10g

Nut M75 X 1.5

705401819

$22.36

10h

Nut M27 X 1.5

705401820

$19.37

10j

Thrust Washer | Not Shown

715900801

$32.06

10k

Dowel Pin

715900559

$6.16

10m

Ring External Shaft

715900719

$26.09

10n

Ring, Internal Spiral Housing

715900720

$25.34

10p

Shim | 4X4

705401604

$51.46

10q

Ball Bearing

705402847

$44.75

10r

Ball Bearing | 4X4

705401606

$47.73

10s

Ball Bearing

715900721

$63.40

10t

Compression Spring | Not Shown

715900802

$28.33

10u

Locker Spring | Not Shown

715900803

$9.76

10v

Spring

715900722

$64.15

10w

Case

715900830

$290.27

10x

Cover

715900831

$129.82

10y

Bushing

715900725

$17.88

10z

Dog Lock | Not Shown

715900806

$42.99

10aa

Vent Valve

705401935

$13.43

10ab

Front Differential Pivot Fork | Not Shown

715900807

$44.00

10ac

Ring Gear Connector

715900819

$163.40

10ad

Disconnect Fork

715900727

$83.55

10af

Shift Rail

715900728

$29.82

10ag

Differential Sub-Assembly

715900832

$708.99

10ah

Ring Gear And Pinion Set

715900820

$370.12

10aj

Retainer Fork | Not Shown

715900766

$10.78

10ak

Actuator

715900952

$208.18

10am

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$17.13

10an

Oil Seal

705401836

$6.96
