02- Engine - Exhaust

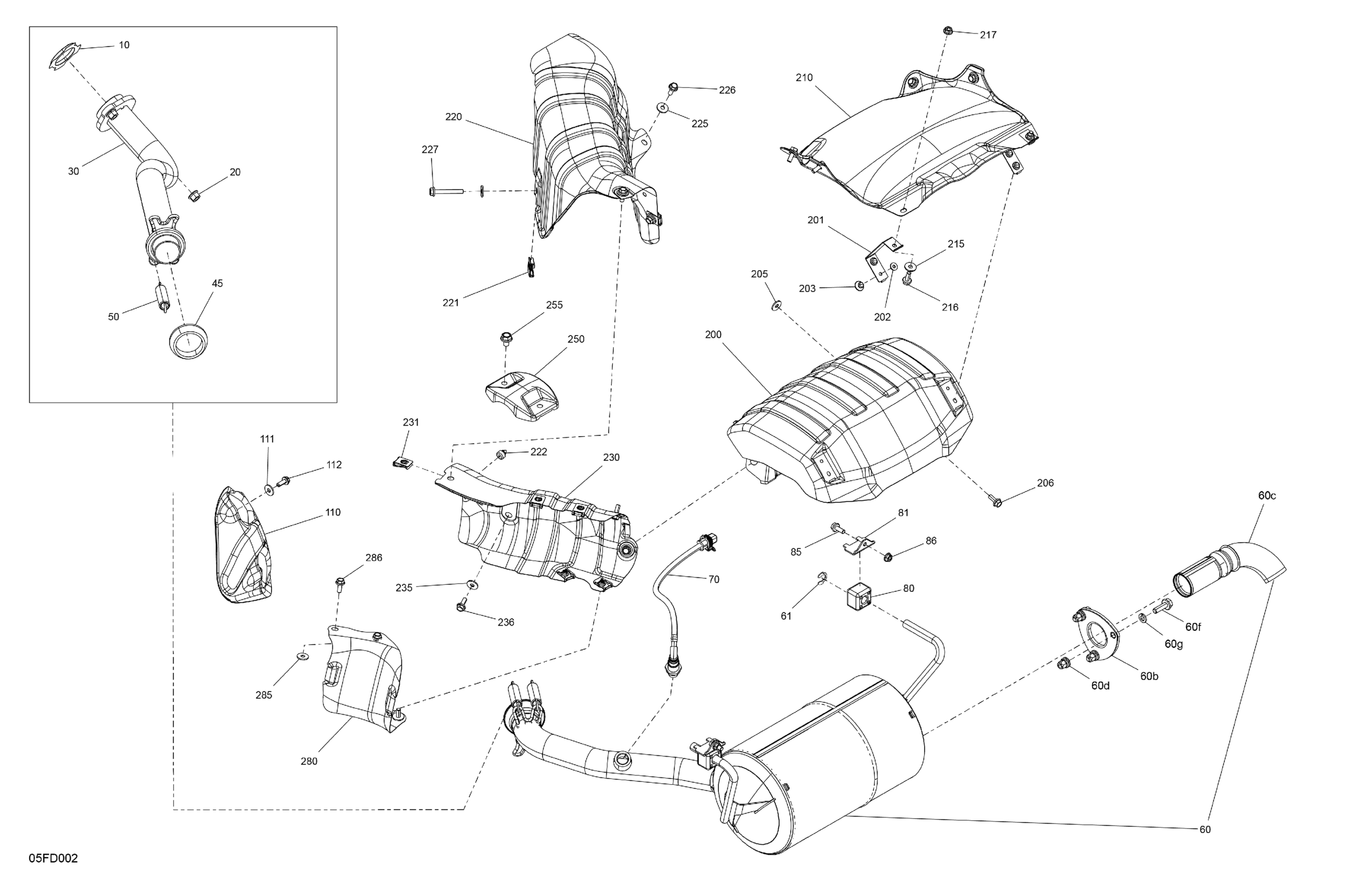

Can-Am Off-Road CE - Outlander PRO HD7 4X4 - 1MRF - XU Package - Tundra Green, 2024 02- Engine - Exhaust Diagram
#
10
Exhaust Gasket
707602697
$5.98
20
Hex. Flange Nut
233081436
$2.00
30
Exhaust Pipe | Includes 30 to 30f
707603186
$179.99
45
Exhaust Gasket
707603475
$26.49
50
Spring
707601834
$6.35
60
Exhaust Muffler Ass'y | Includes 60 to 60g
707602965
$1,123.49
60b
Gasket
707602780
$12.63
60c
Tail Pipe | Includes 60c to 60c4
707602969
$87.99
60d
Threaded Insert M8 X 1.25
250100238
$0.80
60f
Hex. Flange Screw M8 X 25
207682544
$1.35
60g
Lock Washer Din.127B
707603743
$2.00
61
External Retaining Ring
293370184
$1.89
70
Oxygen Sensor
707600872
$144.99
80
Vibration Damper
707603000
$7.90
81
Muffler Support
707603200
$18.54
85
Hex Flange Screw M6 X 16
250000906
$5.29
86
Hex. Flange Nut M6
233161414
$2.11
110
Heat Shield
707603009
$13.49
111
Flat Washer 6 mm
234062410
$0.77
112
Hex. Flange Screw M6 X 16
210261650
$1.67
200
Heat Shield
707603428
$47.99
201
Heat Shield Support
707603029
$3.29
202
Flat Washer
517225900
$0.18
203
Pop Rivet 3/16”
390910000
$0.57
205
Flat Washer 6 mm
234062410
$0.77
206
Hex Flange Screw M6 X 16
250000906
$5.29
210
Heat Shield
707603768
$60.99
215
Flat Washer 6 mm
234062410
$0.77
216
Hex Flange Screw M6 X 16
250000906
$5.29
217
Hex. Flange Nut M6
233161414
$2.11
220
Heat Shield
707603004
$36.99
221
Panel Nut M6 X 1.0
250100208
$1.46
222
Rubber Bumper
293830005
$8.09
225
Flat Washer 6 mm
234062410
$0.77
226
Hex Flange Screw M6 X 16
250000906
$5.29
227
Hex. Flange Screw M6 X 45
207664544
$1.46
230
Heat Shield
707603003
$36.99
231
Panel Nut M6 X 1.0
250100208
$1.46
235
Flat Washer 6 mm
234062410
$0.77
236
Hex Flange Screw M6 X 16
250000906
$5.29
250
Heat Shield
707603005
$13.49
255
Hex. Flange Screw M8 X 12, Scotch Grip
207581244
$1.15
280
Heat Shield
707603006
$13.49
285
Flat Washer 6 mm
234062410
$0.77
286
Hex Flange Screw M6 X 16
250000906
$5.29
