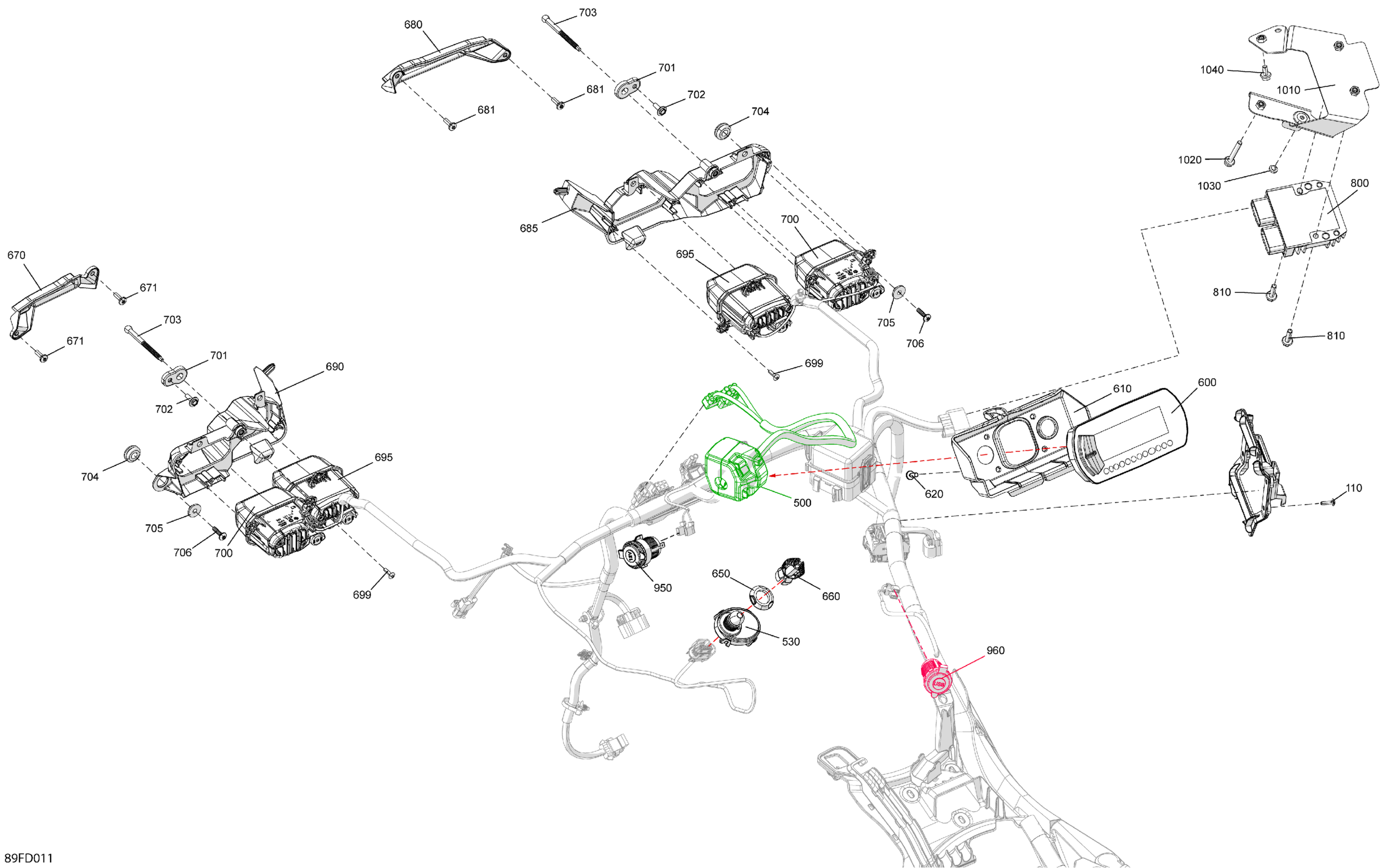

Can-Am CE - Outlander PRO HD7 4X4 - 1MRD - XU Package - Tundra Green, 2024 Electric - Front Section Diagram

Description

Price

110

Torx-Truss Pt K40 X 16

250000759

$2.00

500

LH Front Switch Housing

710006143

$257.43

530

Terminal DESS CAN | CARB Vehicle

710008832

$69.37

600

Multifunction Compact Gauge

710008298

$347.73

610

Int Gauge Support

710007694

$5.48

620

Torx Screw K50 X 16

250000720

$1.60

650

Specialized Nut

278004274

$3.12

660

Grey, Can-Am DESS Key

515179384

$53.70

670

LH Cap

705015024

$9.91

671

Torx Screw K50 X 16

250000720

$1.60

680

RH Cap

705015025

$9.21

681

Torx Screw K50 X 16

250000720

$1.60

685

RH Front Headlight Support

710008319

$39.52

686

Support Pivot | Not Shown

517309049

$2.89

687

Threaded Rod | Not Shown

517309133

$6.01

688

Specialized Nut | Not Shown

517309134

$0.96

689

Compression Spring | Not Shown

517309058

$7.01

690

LH Front Headlight Support

710008318

$39.52

695

HIgh Beam Light

710006910

$152.21

699

Torx-Truss Pt K40 X 16

250000759

$2.00

700

Low Beam Light

710008088

$152.21

701

Ball Socket

293900157

$7.88

702

Screw PT Type K-50 X 16

250000959

$2.00

703

Ajustment Screw

710005837

$5.90

704

Overmolded Grommet

293720130

$4.25

705

Shoulder Bushing

710004749

$2.69

706

Torx Screw K50 X 16

250000720

$1.60

800

Voltage Regulator | Package-DPS, Model-Europe

710005569

$98.48

810

Hex. Flange Screw M6 X 25

207562544

$1.60

950

DC Outlet

710001248

$35.79

960

USB Outlet

219400510

$43.99

1010

Voltage Regulator Support

710006542

$15.64

1020

Hex. Flange Screw M6 X 40

207664044

$2.12

1030

Rubber Stopper

293830229

$6.57

1040

Hex. Flange Screw M6 X 12

207661244

$1.96
