01- ROTAX - Valve Train

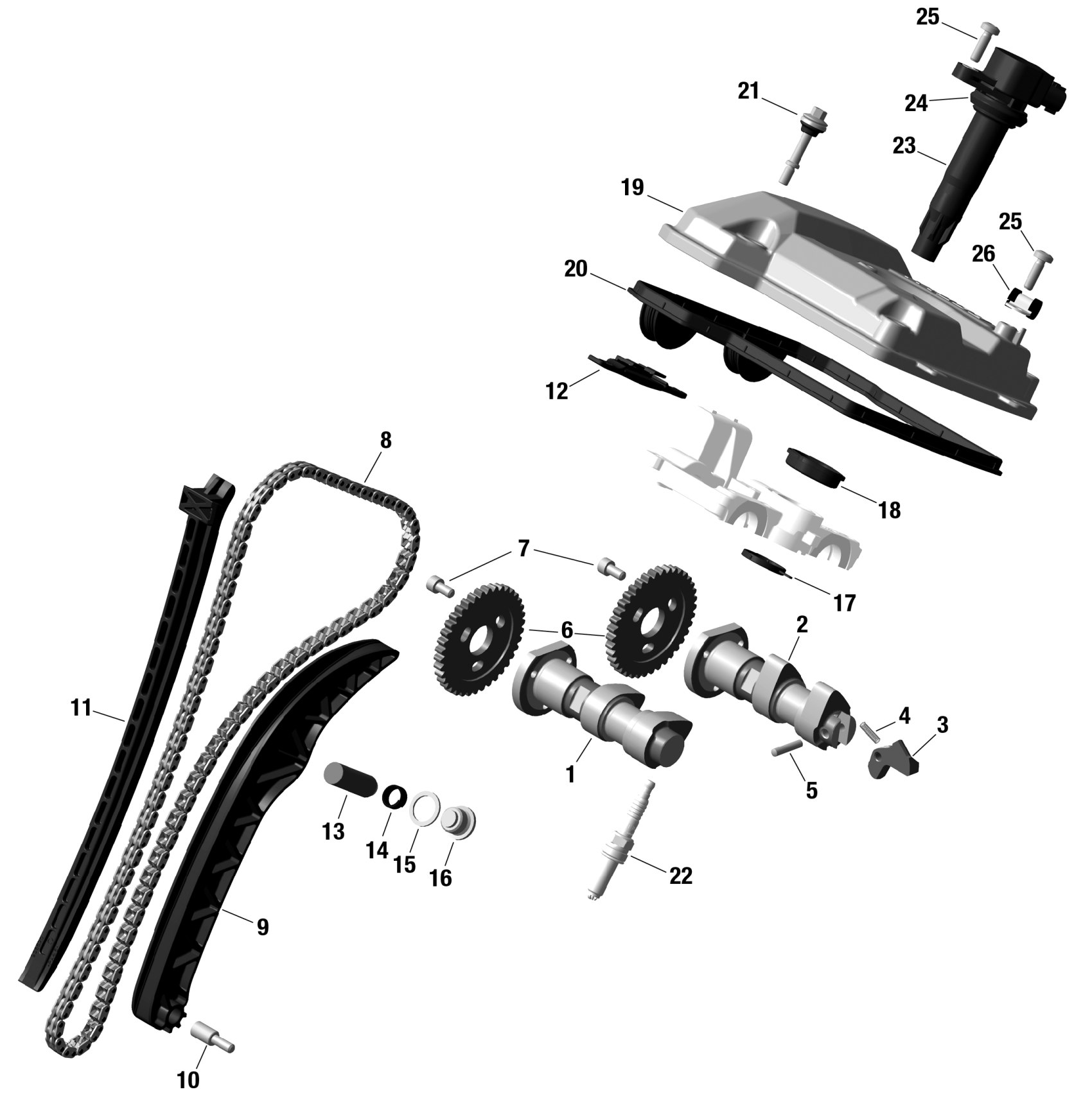

Can-Am Off-Road CE - Outlander PRO HD5 4X4 - 1LRE - XU Package - Tundra Green, 2024 01- ROTAX - Valve Train Diagram
#
Description
Price
1
CAMSHAFT INTAKE -33/53
420281612
$171.49
2
Camshaft Exhaust Ass'y | Includes no. 2-5
420281583
$190.49
3
Not Available As Spare Parts
XXX
Unavailable
4
Not Available As Spare Parts
XXX
Unavailable
5
Not Available As Spare Parts
XXX
Unavailable
6
Camshaft Sprocket 38 Teeth
420254446
$18.49
7
Allen Screw M6 X 12
420840032
$4.44
8
Silent Chaine
420297075
$90.99
9
Chain Tension Guide
420936530
$30.49
10
Bearing Screw M6
420240945
$5.24
11
Chain Guide
420936520
$13.16
12
Upper Chain Guide
420936540
$6.56
13
Chain Tensioner
420236395
$47.49
14
Compression Spring
420238732
$5.89
15
Gasket Ring
420430624
$1.89
16
Plug Screw
420840591
$8.57
17
Camshaft Housing Gasket
420431760
$3.17
18
Valve Cover Gasket
420431751
$3.17
19
Valve Cover
420610445
$29.49
20
Gasket | Included in gasket kit
420630281
$36.99
21
Hex Screw M6 X 30
420440568
$8.58
22
Spark Plug
715900785
$21.99
23
Ignition Coil Ass'y | Includes no. 23-24
420666148
$124.99
24
Protection Cap
420201430
$7.51
25
Torx Flange Screw M6 X 20
420441383
$5.40
26
Clamp
420853414
$18.49
