01- ROTAX - GearBox

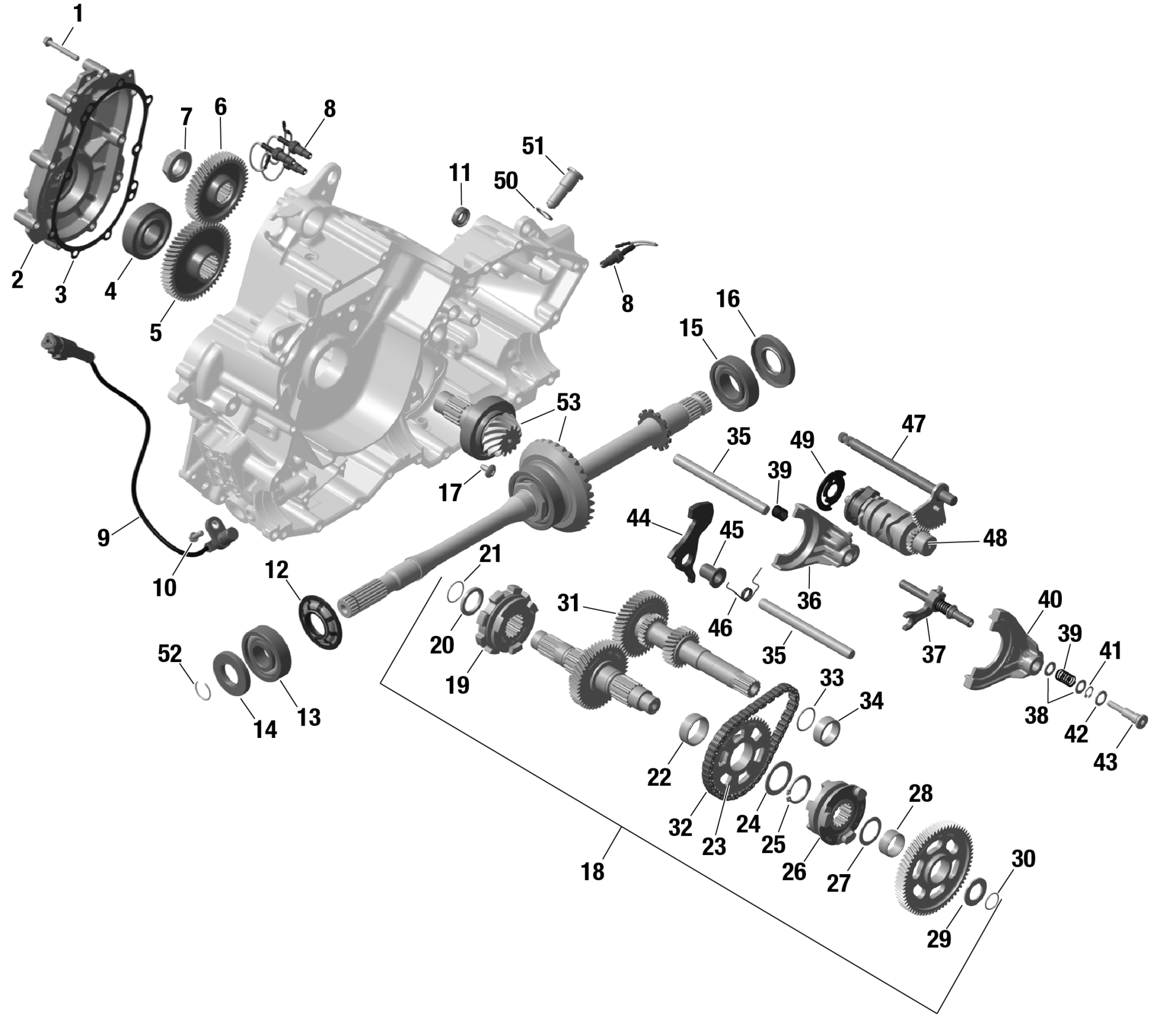

Can-Am Off-Road CE - Outlander PRO HD5 4X4 - 1LRE - XU Package - Tundra Green, 2024 01- ROTAX - GearBox Diagram
#
1
Torx Flange Screw M6 X 45
420440324
$0.98
2
Gear Box Cover
420686891
$58.99
3
Gasket | Included in gasket kit
420651275
$20.49
4
Ball Bearing
420932822
$30.49
5
Intermediate Gear, 52 Teeth
420435965
$77.49
6
Intermediate Gear, 47 Teeth
420435961
$77.49
7
Hex. Flange Nut M22X1
420842245
$19.07
8
3 Position Switch
420640192
$42.49
9
Camshft Position Sensor Ass'y
420265727
$109.99
10
Torx Flange Screw M6 X 16
420440162
$3.17
11
Oil Seal
420250455
$17.38
12
Oil Seal | Included in gasket kit
420931940
$30.49
13
Ball Bearing
420932822
$30.49
14
Oil Seal
420831178
$35.99
15
Ball Bearing
420932580
$10.33
16
Oil Seal 32X60X7 | Included in gasket kit
420830753
$38.99
17
Torx Screw M6X13
420240051
$0.90
18
Main Shaft Ass'y | Includes Ill. no. 19-31
420820327
$294.99
19
Shifting Sleeve
420257254
$48.99
20
Thrust Washer
420227864
$8.49
21
O-Ring
420931391
$10.59
22
Needle Bearing
420632359
$7.30
23
Pinion Gear 49 Teeth
420934190
$109.99
24
Thrust Washer
420626875
$3.17
25
Retaining Ring
420945620
$4.29
26
Shifting Sleeve
420257244
$48.99
27
Thrust Washer
420427012
$3.17
28
Needle Bearing
420632075
$7.30
29
Thrust Washer
420627301
$7.20
30
O-Ring
420230371
$10.11
31
Countershaft
420820330
$279.99
32
Chain
420898532
$98.49
33
O-Ring | Included in gasket kit
420631616
$3.17
34
Distance Ring
420247591
$20.49
35
Dowel Pin 12X140
420229242
$7.29
36
Shift Fork
420657695
$43.99
37
Shifting Block Ass'y
420657707
$38.99
38
Thrust Washer
420827590
$4.01
39
Spring
420638151
$4.59
40
Gearshift Fork Ass'y
420657685
$43.99
41
Snap Ring
420245330
$1.79
42
Aluminum Sealing Ring
420250016
$5.39
43
Bearing Screw M12X1.5
420240921
$11.11
44
Parking Lock Lever
420657760
$80.99
45
Collar Sleeve
420647132
$38.99
46
Helical Spring
420638185
$7.83
47
Shift Shaft Ass'y
420820346
$98.99
48
Shifting Drum Ass'y
420657666
$309.99
49
Isolating Washer
420637955
$5.50
50
Gasket Ring
420430624
$1.89
51
Index Screw Ass'y M16X1.5
420441395
$15.36
52
Not Available As Spare Parts
XXX
Unavailable
53
Not Available As Spare Parts
XXX
Unavailable
