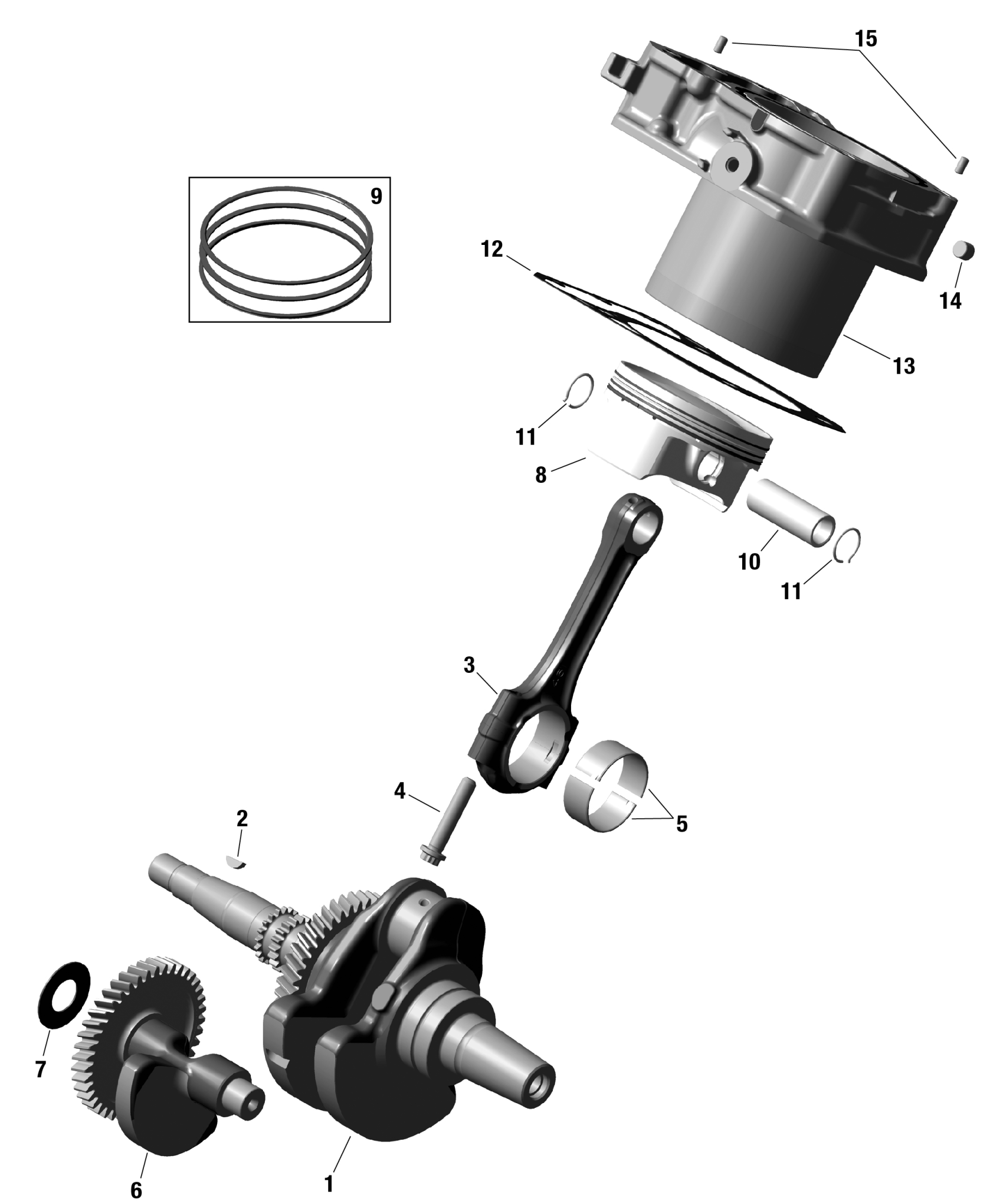

Can-Am CE - Outlander PRO HD5 4X4 - 1LRE - XU Package - Tundra Green, 2024 ROTAX - Crankshaft, Pistons and Cylinder Diagram

Crankshaft Ass'y

420295038

$808.99

Woodruff Key 4 X 5

420246570

$3.38

Connecting Rod Ass'y | Includes no. 3-4

420217467

$266.49

Connecting Rod Screw M9 X 1

420641475

$17.53

Plain Bearing

420233726

$17.59

Balance Shaft Ass'y | Includes no. 6-7

420637483

$301.99

Thrust Washer 20/41/0,8

420627075

$11.06

Thrust Washer 20/41/1.0

420627076

$11.06

Thrust Washer 20/41/1.2

420627077

$3.98

Thrust Washer 20/41/1.4

420627078

$11.06

Thrust Washer 20/41/0,7

420627082

$11.06

Thrust Washer 20/41/0,9

420627083

$11.06

Thrust Washer 20/41/1.1

420627084

$11.06

Thrust Washer 20/41/1.3

420627085

$11.06

Thrust Washer 20/41/1.5

420627086

$11.06

Piston Ass'y -  Includes Piston Ring Set

420686387

$153.99

Piston Ring Set

420615180

$82.99

Piston Pin 20/12.1/51

420216285

$31.99

Piston Circlip

420845107

$4.89

Gasket | Included in gasket kit

420450335

$10.01

Cylinder With Sleeve | Includes no. 13-14

420413177

$414.99

Plug Screw M10 X 1

420641323

$14.28

Drive Pin 5 X 10

420929650

$1.68
