01- ROTAX - Crankcase

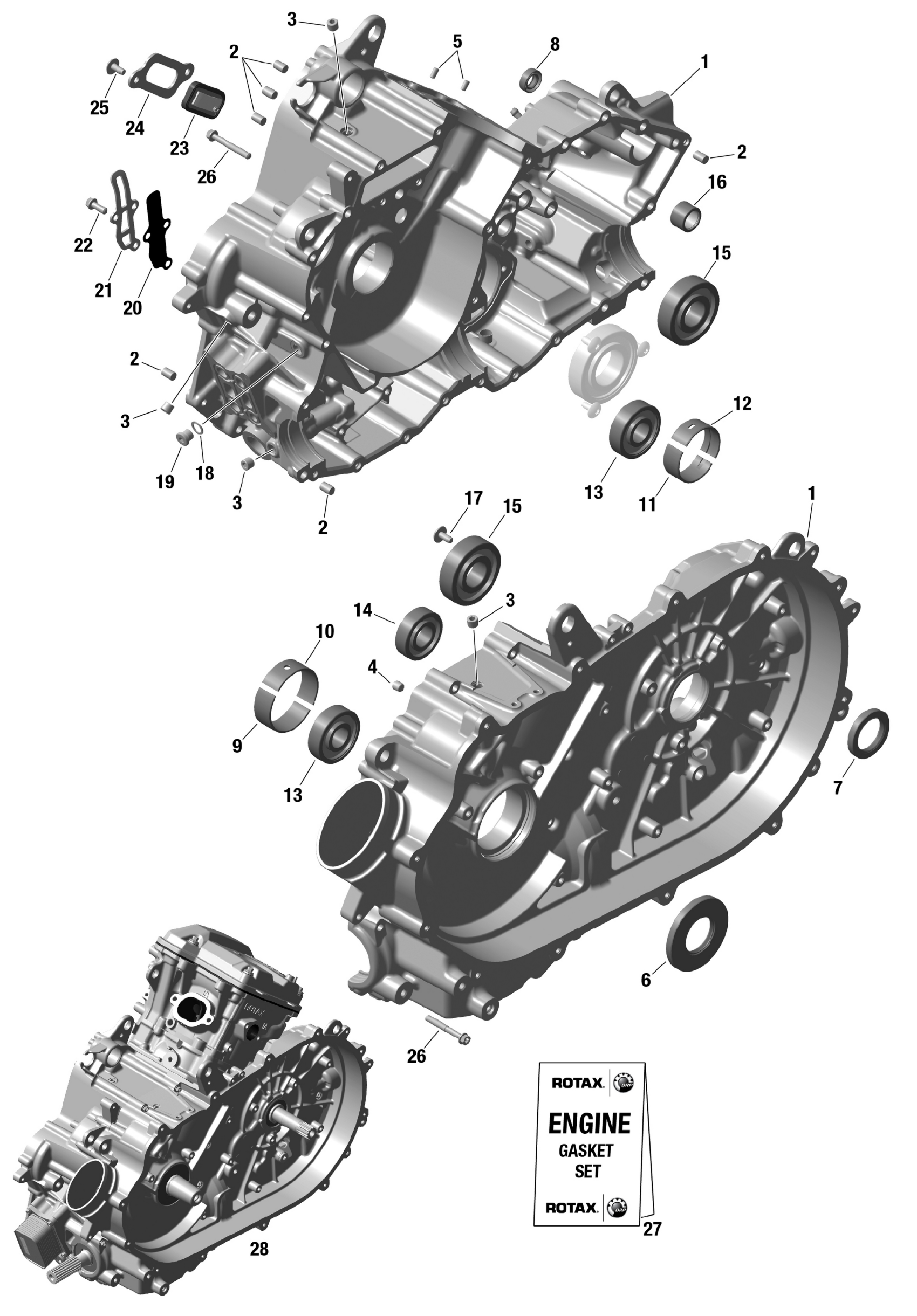

Can-Am Off-Road CE - Outlander PRO HD5 4X4 - 1LRE - XU Package - Tundra Green, 2024 01- ROTAX - Crankcase Diagram
#
Description
Price
1
Not Available As Spare Parts
XXX
Unavailable
2
Center Pin 8 X 12
420632010
$4.01
3
Plug Screw M10 X 1
420641323
$14.28
4
Plug Screw
420941611
$12.18
5
Drive Pin 5 X 10
420929650
$1.68
6
Oil Seal
420431402
$19.49
7
Oil Seal
420950089
$19.49
8
Oil Seal
420250455
$17.38
9
Half Bushing
420933498
$15.87
10
Bearing Sleeve
420933493
$26.49
11
Bearing Sleeve
420233376
$23.99
12
Bearing Sleeve
420233371
$23.99
13
Ball Bearing
420932093
$35.99
14
Ball Bearing 6204
420932433
$23.49
15
Ball Bearing
420932822
$30.49
16
Needle Bushing
420832240
$20.99
17
Torx Screw M6X13
420240051
$0.90
18
Oil Seal
420230154
$3.06
19
Plug Screw M10 X 1.5
420641326
$14.22
20
Reed Valve
420224721
$19.19
21
Reed Valve Stop
420224725
$11.63
22
Torx Flange Screw M6 X 20
420440207
$3.06
23
Reed Valve Ass'y | Included in gasket kit
420224771
$46.49
24
Reed Valve Membrane
420612085
$11.65
25
Torx Screw M6X13
420240051
$0.90
26
Torx Flange Screw M6 X 45
420440324
$0.98
27
Engine Gasket Set
420684158
$487.49
28
Long-Block
420065004
$3,887.99
