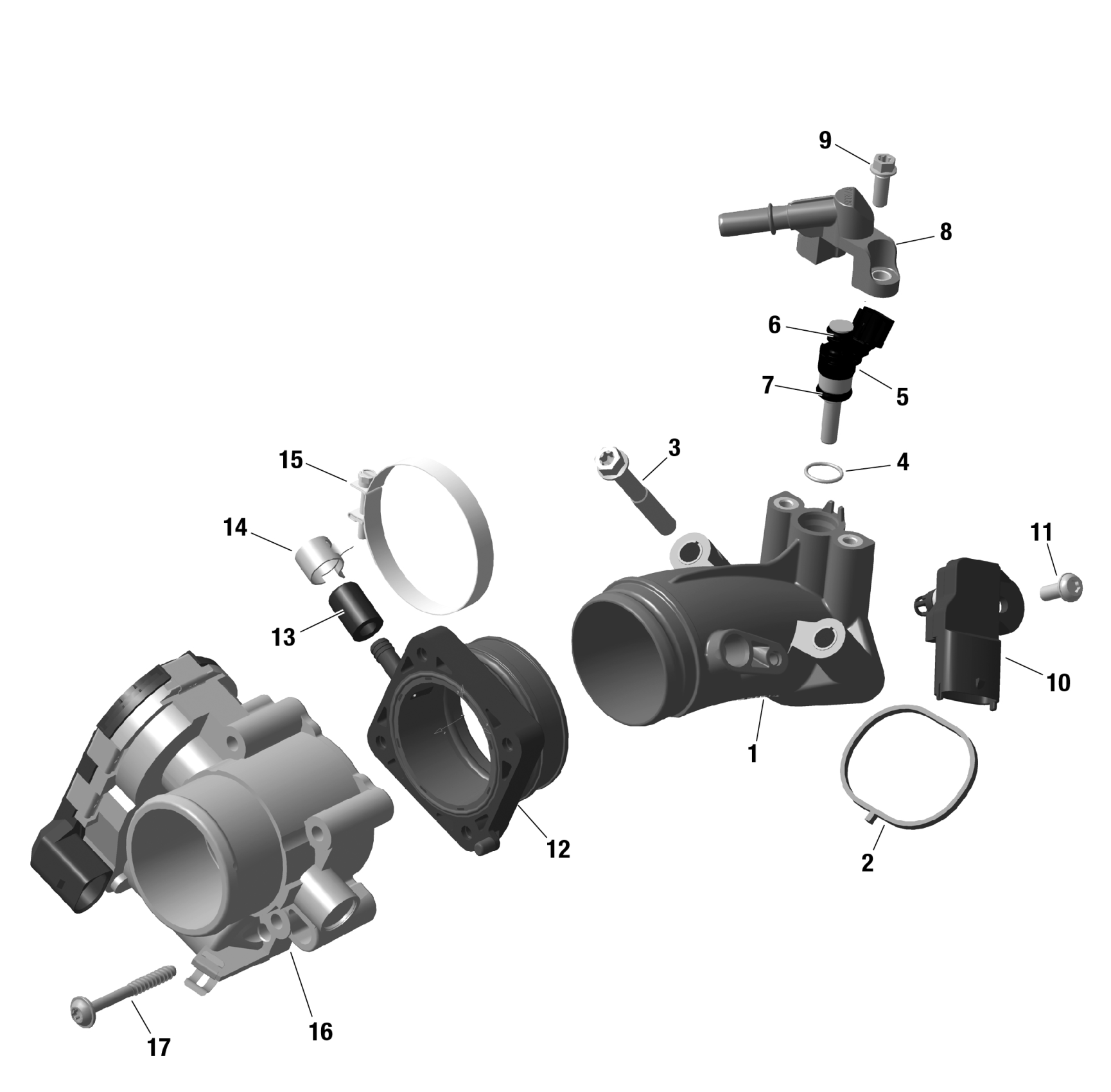

Can-Am Off-Road CE - Outlander PRO HD5 4X4 - 1LRE - XU Package - Tundra Green, 2024 01- ROTAX - Air Intake Manifold And Throttle Body Diagram

Description

Price

Air Intake Manifold

420267552

$48.99

Gasket | Included in gasket kit

420630655

$4.86

Torx Flange Screw M8 X 55

420641213

$7.41

O-Ring

420230451

$12.11

Fuel Injector EV-SE

420874859

$116.49

Fuel Injector Gasket Kit | Includes no. 6-7

420684159

$23.49

Not Available As Spare Parts

XXX

Unavailable

Fuel Rail

420874935

$17.73

Torx Flange Screw M6 X 16

420440164

$2.19

Pressure And Temperature Sensor

420874658

$119.99

Torx Flange Screw M6 X 16

420641588

$2.11

Intake Socket

420267217

$65.99

Cap

420201910

$6.82

Spring Type Clamp 14

420853512

$4.55

Clamp 63

420851086

$12.17

Throttle Body

420893149

$646.49

Torx Flange Screw M6 X 50

420441588

$4.44
