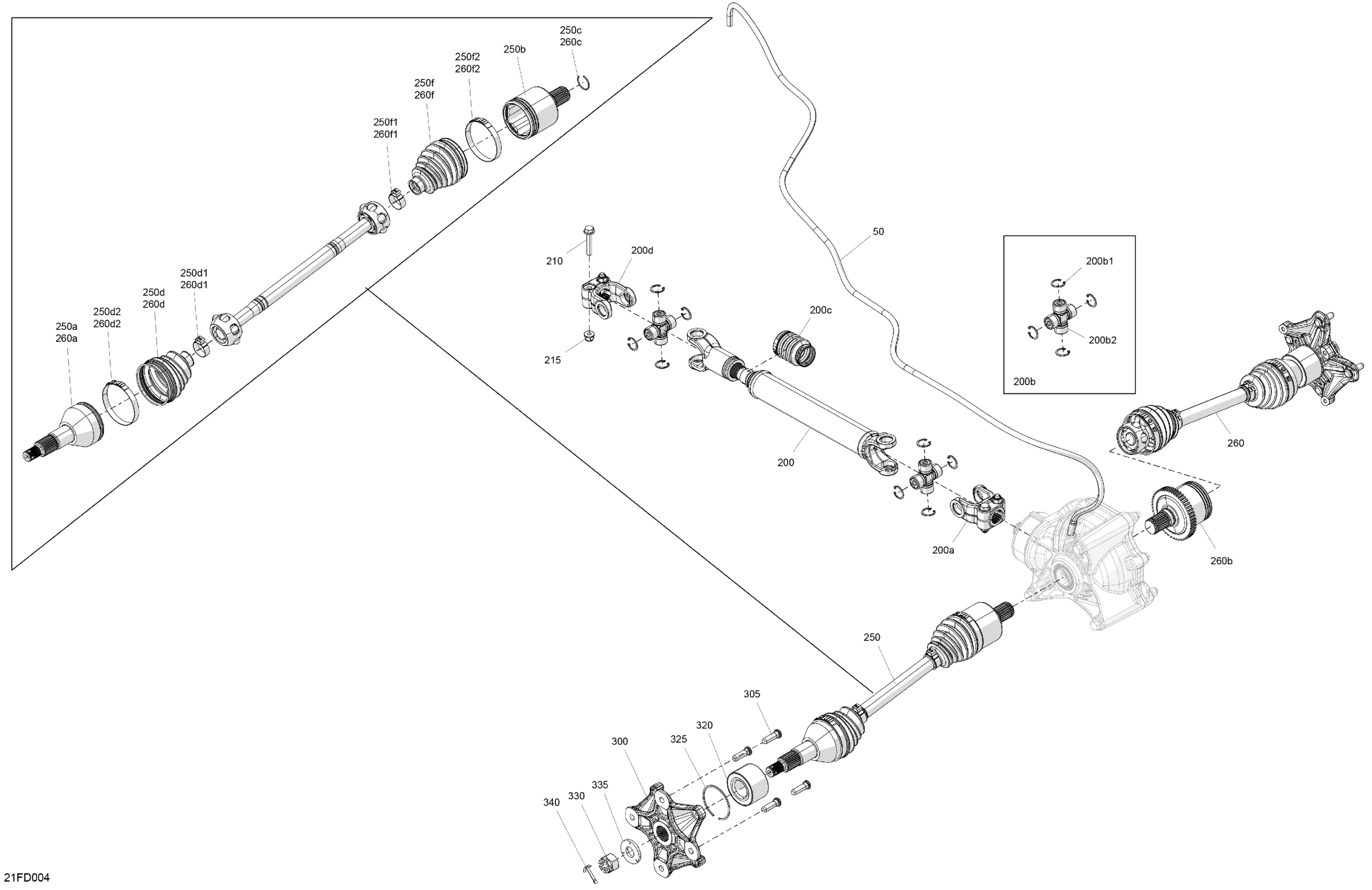

Can-Am CE - Outlander Max 700 4X4 - 1YRE - XT Package - Platinum Silver Satin, 2024 Drive - Rear - Common Parts Diagram

Description

Price

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

200

Rear Drive Axle

705502982

$243.25

200a

Connecting Yoke 18Th

715900938

$23.10

200b

Universal Joint Ass'y

715900911

$43.25

200b1

Circlip

715900912

Unavailable

200b2

Universal Joint

715900913

Unavailable

200c

Ball Joint Boot ( 927, 982 )

715900942

$13.28

200d

Connecting Yoke 20Th

715900939

$23.10

210

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.79

215

Hex. Elastic Flange Nut M8

233281416

$1.43

250

CV Joint | Includes 250 to 250f2

705502928

$226.84

250a

CV Joint Fix

715500461

$241.01

250b

Plunging Joint

715500462

$240.27

250c

Circlip Joint

715500463

$4.19

250d

CV Boot Joint Kit | Includes 250d to 250d2

715500464

$39.52

250d1

Clamp Small

715500475

$4.94

250d2

Clamp Large

715500476

$4.45

250f

CV Boot Joint Kit | Includes 250f to 250f2

715500465

$39.52

250f1

Clamp Small

715500475

$4.94

250f2

Clamp Large

715500477

$4.94

260

CV Joint | Includes 260 to 260f

705503078

$255.94

260a

CV Joint Fix

715500461

$241.01

260b

Plunging Joint

715500466

Unavailable

260c

Circlip Joint

715500463

$4.19

260d

CV Boot Joint Kit | Includes 250d to 250d2

715500464

$39.52

260d1

Clamp Small

715500475

$4.94

260d2

Clamp Large

715500476

$4.45

260f

CV Boot Joint Kit | Includes 250f to 250f2

715500465

$39.52

260f1

Clamp Small

715500475

$4.94

260f2

Clamp Large

715500477

$4.94

300

Wheel Hub

705503257

$94.00

305

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.18

320

Ball Bearing

293350150

$50.34

325

Circlip

293370019

$4.68

330

Hex. Flange Castellated Nut M18

232291413

$3.24

335

Conical Spring Washer M18

250200171

$6.06

340

Cotter Pin

250400071

$2.00
