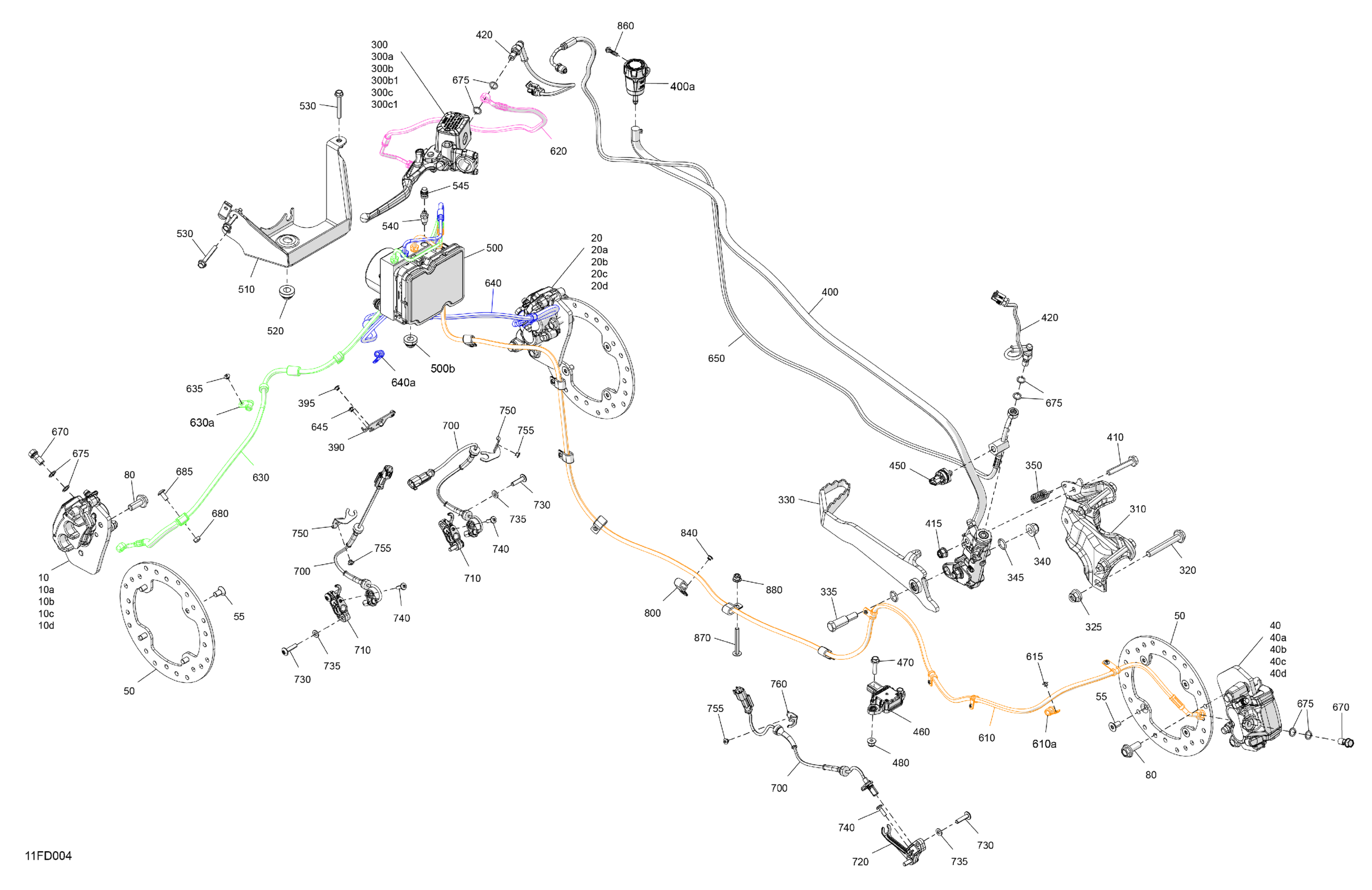

Can-Am CE - Outlander Max 700 4X4 - 1YRE - XT Package - Platinum Silver Satin, 2024 Mechanic - Brake System Diagram

#

Description
Price

10

LH Front Brake Caliper | Includes 10 to 10d

705601808

$270.49

10a

LH Pad Brake

705602070

$79.49

10b

Pin Set

705601016

$9.26

10c

Bleeding Screw

705601017

$6.35

10d

Retaining Spring

705601018

$7.55

20

RH Front Brake Caliper | Includes 20 to 20d

705601809

$270.49

20a

PAD_BRAKE R - Call your local BRP dealership

705602071

$82.47

20b

Pin Set

705601016

$9.26

20c

Bleeding Screw

705601017

$6.35

20d

Retaining Spring

705601018

$7.55

40

RH Rear Brake Caliper | Includes 40 to 40d

705601811

$312.49

40a

PAD_BRAKE R - Call your local BRP dealership

705602071

$82.47

40b

Pin Set

705601016

$9.26

40c

Bleeding Screw

705601017

$6.35

40d

Retaining Spring

705601018

$7.55

50

Disc Brake

705601997

$67.99

55

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

80

Hex. Flange Screw M10 X 25

207502546

$2.11

300

LH Front Brake Master Cylinder | Includes 300 to 300c

705602017

$244.99

300a

Master Cylinder Lever

705602075

$54.99

300b

Clamp And Screw Kit

507032477

$23.99

300b1

Hex. Flange Screw M6 X 25

250000447

$2.11

300c

Cap Set

219800096

$21.99

300c1

Screw M4 X 20

415129356

$2.22

310

Master Cylinder Support

705207200

$32.99

320

Hex. Flange Screw M10 X 70

207607046

$2.96

325

Hex. Flange Elastic Nut M10

233201436

$2.11

330

Brake Pedal

705601683

$67.99

335

Shoulder Screw M10

250000513

$6.77

340

Hex. Flange Elastic Nut M10

233201436

$2.11

345

O-Ring

293300144

$3.82

350

Brake Pedal Spring

705600792

$9.10

390

Hose Support

705602165

$7.19

395

Pop Rivet 3/16 X ,425

293150293

$0.35

400

Rear Brake Master Cylinder Ass'y | Includes 400 to 400a

705602297

$269.99

400a

Brake Fluid Reservoir

705602137

$244.99

410

Hex. Flange Screw M8 X 50

207685044

$1.69

415

Hex. Flange Elastic Nut M8

233281414

$1.47

420

Brake Switch

705601669

$51.99

450

Oil Pressure Sensor

705602044

$94.49

460

Yaw Rate Sensor

710005658

$179.99

470

Hex. Flange Screw M6 X 25

207662554

$1.48

480

Hex. Flange Elastic Nut M6

233261466

$2.00

500

MOD ESP WET PROG & GROMMET KIT | Includes 500 to 500b

703501266

$1,539.99

500b

Shock Damper

710003279

$10.49

510

Module Support

705602000

$23.49

520

Vibration Damper

710009090

$10.49

530

Hex. Flange Screw M6 X 45

207664544

$1.46

540

Purge Screw M12 X 1.0

705602133

$12.16

545

Bleeder Bolt Cap

705601190

$4.44

610

RH Rear Caliper Hose | Includes 610 to 610a

705601846

$78.49

610a

Clamp

293650256

$5.49

615

Pop Rivet 3/16 X ,425

293150293

$0.35

620

LH Front Master Cylinder Hose

705601831

$86.99

630

LH Front Caliper Hose | Includes 630 to 630a

705601832

$78.49

630a

Clamp

293650256

$5.49

635

Pop Rivet 3/16 X ,425

293150293

$0.35

640

RH Front Caliper Hose | Includes 640 to 640a

705601833

$78.49

640a

Clamp

293650256

$5.49

645

Pop Rivet 3/16 X ,425

293150293

$0.35

650

Rear Master Cylinder Hose

705601835

$86.99

670

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

675

Washer

414920600

$1.90

680

Elastic Stop Nut M6

232561434

$1.99

685

Torx Truss M6X14

250000789

$5.39

700

Speed Sensor

710006981

$83.99

710

Molded Sensor Support

705402628

$2.54

720

Molded Sensor Support

705601955

$2.54

730

Torx Truss Screw M6 X 25

250000807

$2.11

735

Flat Washer 6 mm

234061410

$1.36

740

Torx Screw K50 X 16

250000720

$1.69

750

Sensor Support

705602166

$2.54

755

Pop Rivet 3/16 X ,425

293150293

$0.35

760

Sensor Support

705601986

$2.54

800

Clamp

293650220

$0.90

840

Pop Rivet 3/16 X ,425

293150293

$0.35

860

Hex. Flange Screw K50 X 20

241152060

$1.99

870

Torx Screw M6 X 50

250000317

$2.11

880

Hex. Flange Elastic Nut M6

233261466

$2.00
