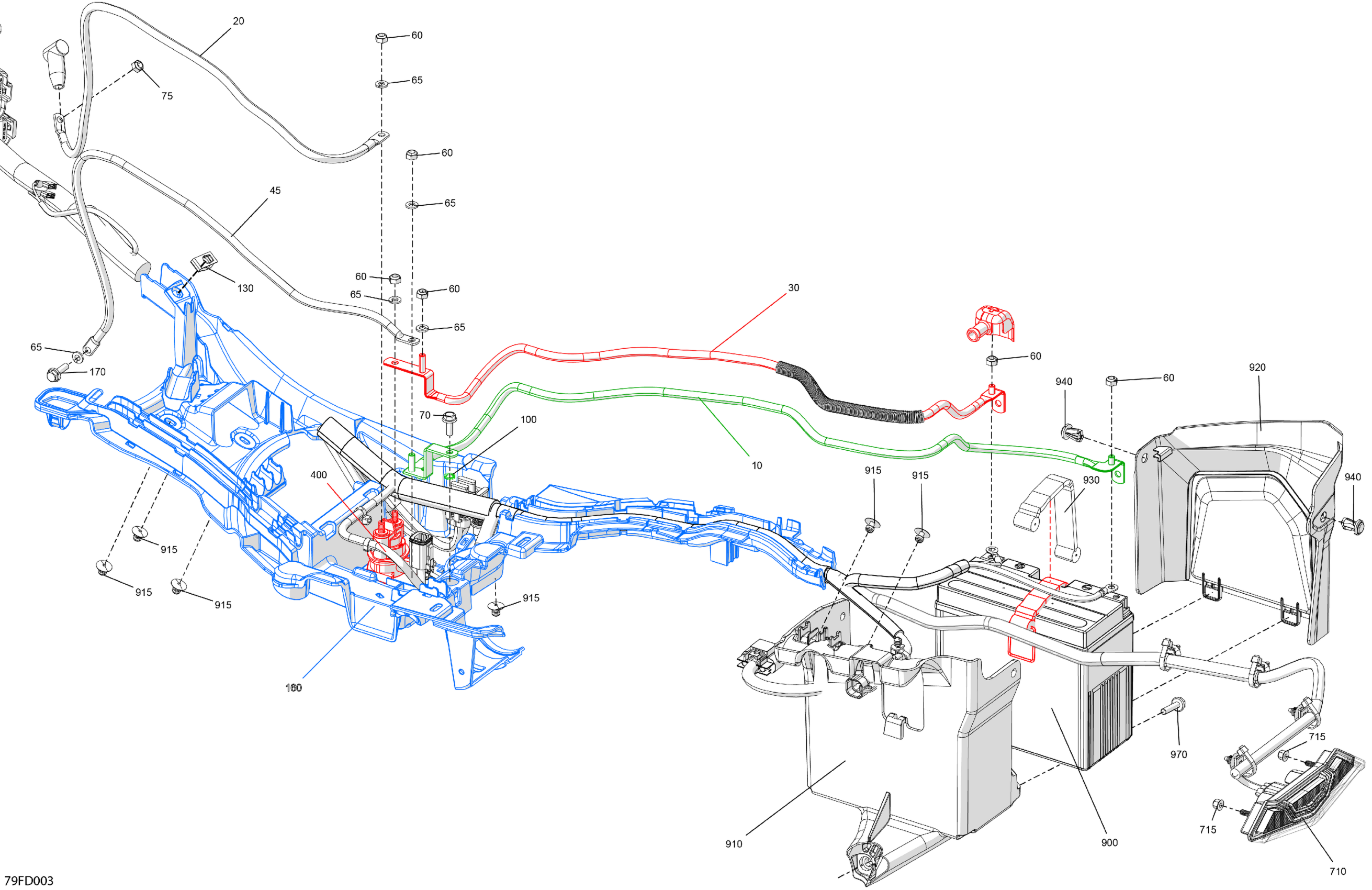

Can-Am CE - Outlander Max 700 4X4 - 1YRD - XT Package - Platinum Silver Satin, 2024 Electric - Rear Section Diagram

Description

Price

Negative Cable

710009369

$35.04

Positive Cable

710006411

$43.25

Positive Cable

710009370

$43.25

Negative Cable

710007321

$35.04

Elastic Stop Nut M6

232561434

$1.78

Lock Washer Helical M6

234161601

$1.06

Hex. Flange Screw M6 X 16

207661646

$1.15

Elastic Stop Nut M6

232561434

$1.78

100

External Serrated Lock Washer 6 mm

234461608

$1.06

130

Panel Nut M6 X 1.0

250100198

$1.99

160

Starter Relay Support

710006305

$38.78

170

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

400

Starter Relay

278003012

$40.27

710

Tail Light

710006633

$57.43

715

Flange Elastic Nut M5

233251434

$1.91

900

12 Volt Battery 18AH In Box | Includes items 7 to 8

296000444

$144.75

910

Battery Support

710008195

$41.76

915

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

920

Battery Cover

710008267

$14.91

930

Holding Strap

293850112

$16.39

940

Tuflok Plastic Rivet

293150230

$1.39

970

Hex. Flange Screw M6 X 25

207562544

$1.60

4710

Screw | Not Shown

710009084

$1.48

4720

Washer | Not Shown

710009082

$0.99
