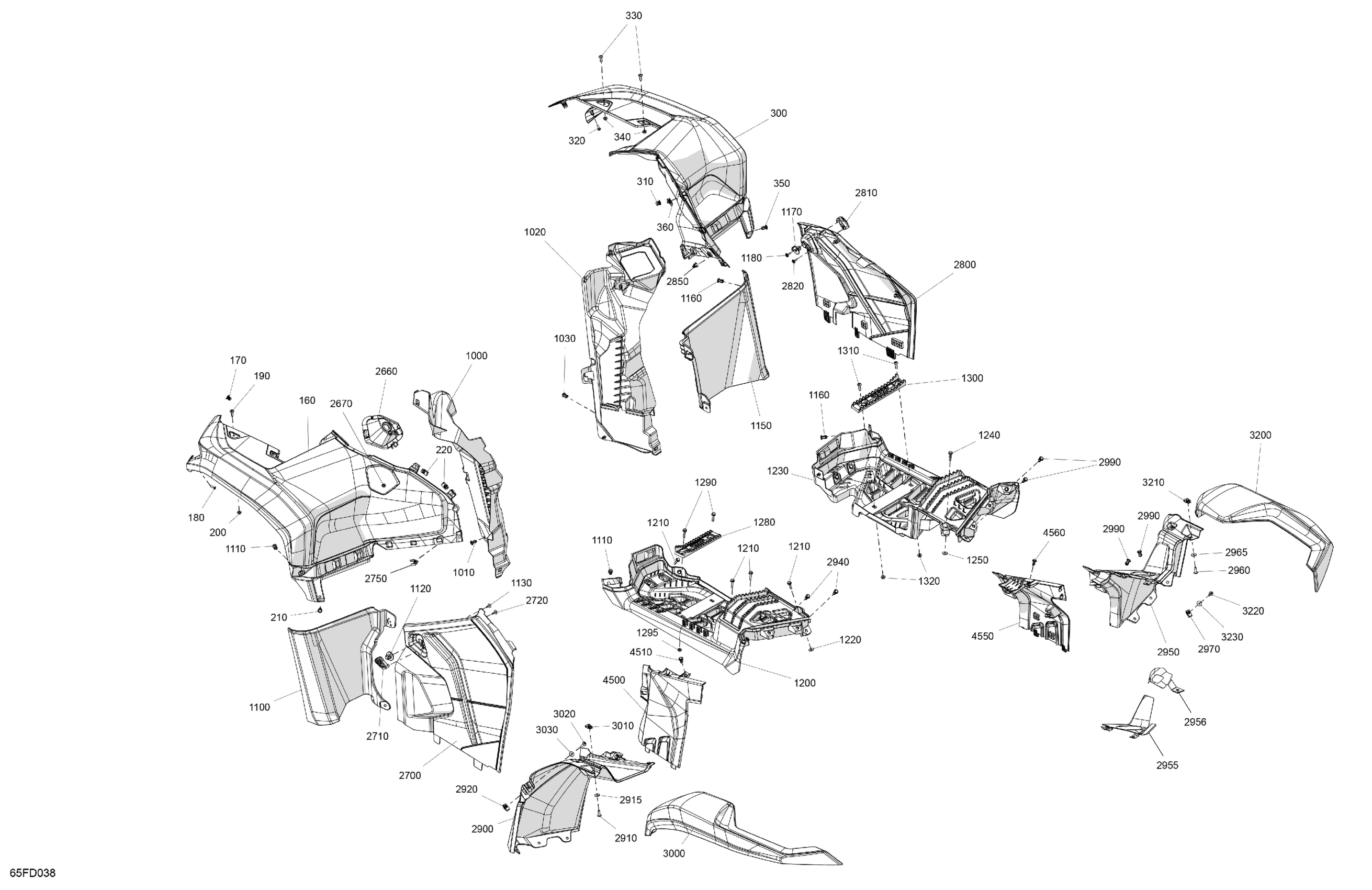

Can-Am CE - Outlander Max 700 4X4 - 1YRD - XT Package - Platinum Silver Satin, 2024 Body - Fender Kit Diagram

#

Description
Price

160

Platinum Silver, LH Front Fender Kit

715009493

$409.99

170

Edge Clip

517302785

$0.88

180

Torx Screw K50 X 16

250000720

$1.69

190

Screw Torx M6 X 20

250001257

$1.68

200

Hex. Flange Nut M6

233161414

$2.11

210

Tuflok Plastic Rivet

293150230

$1.47

220

Panel Nut M6 X 1.0

250100198

$2.11

300

Platinum Silver, RH Front Fender Kit

715009514

$409.99

310

Edge Clip

517302785

$0.88

320

Torx Screw K50 X 16

250000720

$1.69

330

Screw Torx M6 X 20

250001257

$1.68

340

Hex. Flange Nut M6

233161414

$2.11

350

Tuflok Plastic Rivet

293150230

$1.47

360

Panel Nut M6 X 1.0

250100198

$2.11

1000

LH Inner Fender

705013311

$29.99

1010

Tuflok Plastic Rivet

293150230

$1.47

1020

LH Inner Fender

705013312

$29.99

1030

Tuflok Plastic Rivet

293150230

$1.47

1100

LH Upper Footstep

705014743

$82.99

1110

Tuflok Plastic Rivet

293150230

$1.47

1120

Rear Stud

517305985

$15.36

1130

Screw M4 X 16

250000725

$3.49

1150

RH Upper Footstep

705014744

$82.99

1160

Tuflok Plastic Rivet

293150230

$1.47

1170

Rear Stud

517305985

$15.36

1180

Screw M4 X 16

250000725

$3.49

1200

LH Footboard

705014262

$189.99

1210

Hex Flange Screw M6 X 25

250000841

$7.51

1220

Stainless Steel Flat Washer

234062670

$2.11

1230

RH Footboard

705014263

$139.99

1240

Hex Flange Screw M6 X 25

250000841

$7.51

1250

Stainless Steel Flat Washer

234062670

$2.11

1280

Footrest

705013651

$4.09

1290

Hex Flange Screw M6 X 25

250000841

$7.51

1295

Hex. Flange Nut M6

233161414

$2.11

1300

Footrest

705013651

$4.09

1310

Hex Flange Screw M6 X 25

250000841

$7.51

1320

Hex. Flange Nut M6

233161414

$2.11

2660

Switch Support

705014661

$13.49

2670

Pressure Nut

250100163

$0.98

2700

LH Panel

705019073

$54.99

2710

LH Rear Latch

517305774

$18.49

2720

Screw M4 X 16

250000725

$3.49

2750

Clip

517306478

$1.09

2800

RH Panel

705019064

$54.99

2810

RH Rear Latch

517305773

$18.49

2820

Screw M4 X 16

250000725

$3.49

2850

Clip

517306478

$1.09

2900

LH Rear Fender Support Kit

715009540

$29.99

2910

Torx-Truss M/S M6 X 25

250001000

$5.29

2915

Flat Washer 6 mm

234062410

$0.77

2920

Panel Nut M6 X 1.0

250100198

$2.11

2940

Tuflok Plastic Rivet

293150230

$1.47

2950

RH Rear Fender Support

705014734

$83.99

2955

Heat Shield

705018605

$3.89

2956

Heat Shield

705018563

$3.89

2960

Torx-Truss M/S M6 X 25

250001000

$5.29

2965

Flat Washer 6 mm

234062410

$0.77

2970

Panel Nut M6 X 1.0

250100198

$2.11

2990

Tuflok Plastic Rivet

293150230

$1.47

3000

Platinum Silver, LH Rear Fender | Platinum Silver Satin Model

705017155

$204.99

3010

Panel Nut M6 X 1.0

250100198

$2.11

3020

Screw Torx M6 X 20

250001257

$1.68

3030

Flat Washer 6 mm

234062410

$0.77

3200

Platinum Silver, RH Rear Fender | Platinum Silver Satin Model

705017156

$204.99

3210

Panel Nut M6 X 1.0

250100198

$2.11

3220

Screw Torx M6 X 20

250001257

$1.68

3230

Flat Washer 6 mm

234062410

$0.77

4500

LH Extension Panel

705013653

$18.49

4510

Tuflok Plastic Rivet

293150230

$1.47

4550

RH Extension Panel

705013654

$18.49

4560

Tuflok Plastic Rivet

293150230

$1.47
