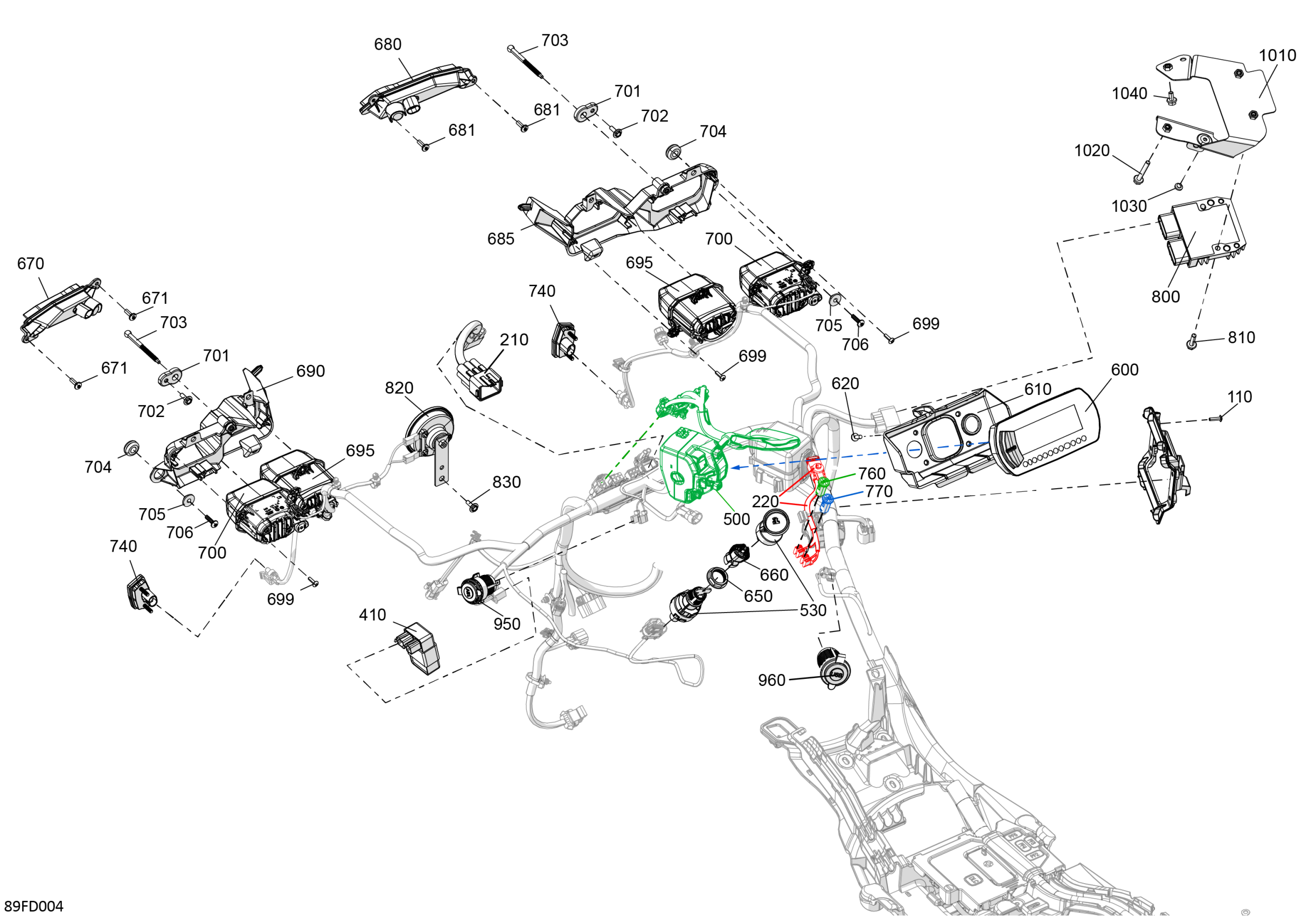

Can-Am CE - Outlander Max 700 4X4 - 1WRG - DPS Package - Legion Red, 2024 08- Electric - Front Section Diagram

#

Description

Price

110

Torx-Truss Pt K40 X 16

250000759

Unavailable

210

Switch Wiring Harness

710009366

Unavailable

220

Marker Light Wiring Harness

710007616

Unavailable

410

Flasher Unit

710003239

Unavailable

500

LH Front Multifunction Switch

710006945

Unavailable

530

Terminal DESS CAN | CARB Vehicle

710008832

Unavailable

600

Multifunction Compact Gauge

710008298

Unavailable

610

Int Gauge Support

710007694

Unavailable

620

Torx Screw K50 X 16

250000720

Unavailable

650

Specialized Nut

278004274

Unavailable

660

Grey, Can-Am DESS Key

515179384

Unavailable

670

LH Front Daytime Headlight

710006495

Unavailable

671

Torx Screw K50 X 16

250000720

Unavailable

680

RH Front Daytime Headlight

710006496

Unavailable

681

Torx Screw K50 X 16

250000720

Unavailable

685

RH Front Headlight Support

710008319

Unavailable

686

Support Pivot | Not Shown

517309049

Unavailable

687

Threaded Rod | Not Shown

517309133

Unavailable

688

Specialized Nut | Not Shown

517309134

Unavailable

689

Compression Spring | Not Shown

517309058

Unavailable

690

LH Front Headlight Support

710008318

Unavailable

695

HIgh Beam Light

710006910

Unavailable

699

Torx-Truss Pt K40 X 16

250000759

Unavailable

700

Low Beam Light

710008088

Unavailable

701

Ball Socket

293900157

Unavailable

702

Screw PT Type K-50 X 16

250000959

Unavailable

703

Ajustment Screw

710005837

Unavailable

704

Overmolded Grommet

293720130

Unavailable

705

Shoulder Bushing

710004749

Unavailable

706

Torx Screw K50 X 16

250000720

Unavailable

740

Amber Light Turn Signal

710007217

Unavailable

760

Pilot Light Trailer Flasher

710005766

Unavailable

770

Pilot Light Tail Lamp

710005767

Unavailable

800

Voltage Regulator | Package-DPS, Model-Europe

710005569

Unavailable

810

Hex. Flange Screw M6 X 25

207562544

Unavailable

820

Horn

710008852

Unavailable

830

Screw PT Type K-50 X 16

250000959

Unavailable

950

DC Outlet

710001248

Unavailable

960

USB Outlet

219400510

Unavailable

1010

Voltage Regulator Support

710006542

Unavailable

1020

Hex. Flange Screw M6 X 40

207664044

Unavailable

1030

Rubber Stopper

293830229

Unavailable

1040

Hex. Flange Screw M6 X 12

207661244

Unavailable
