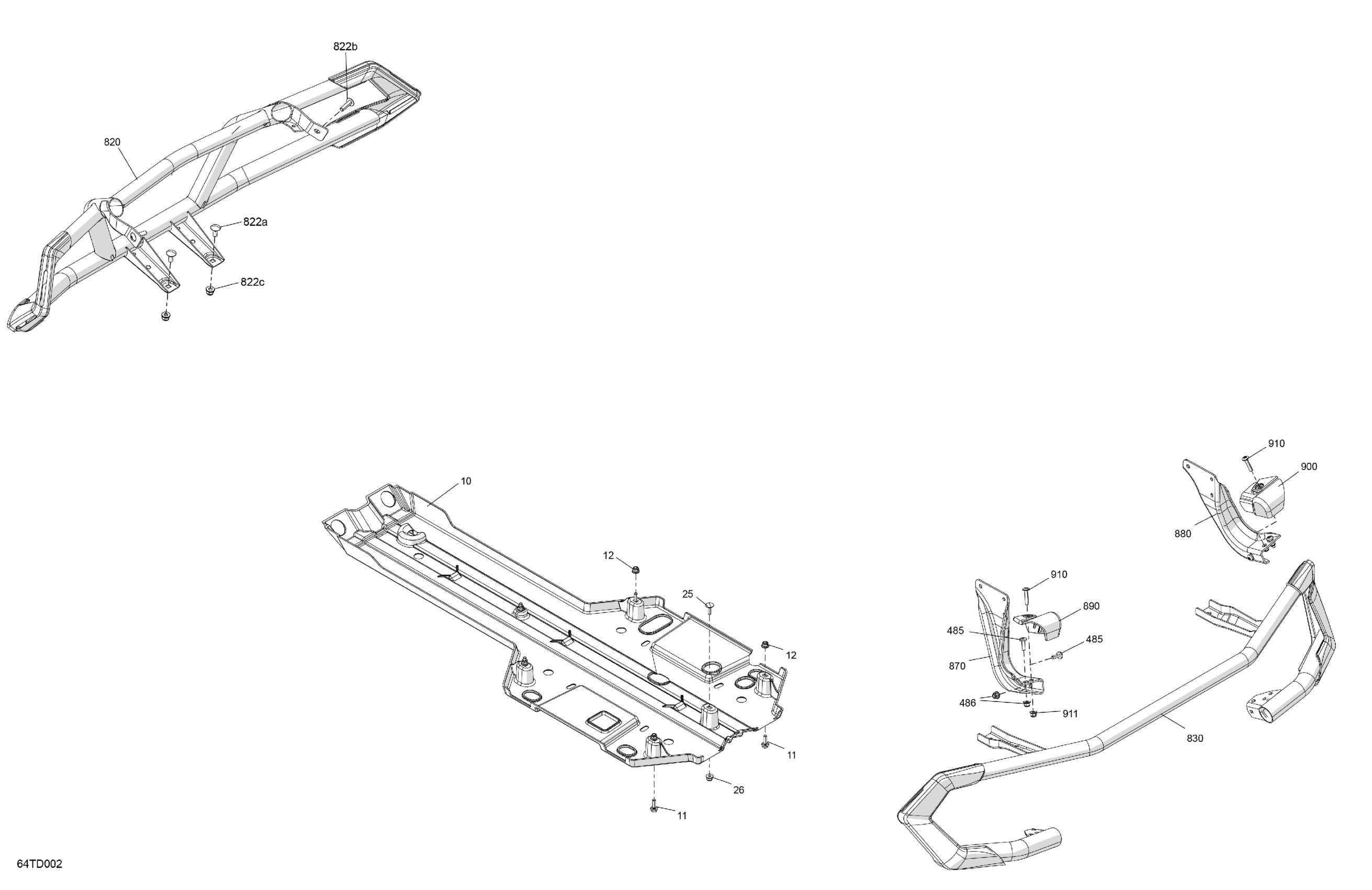

Can-Am CE - Outlander MAX 1000R EFI 4X4 - 5WRD - Limited Package - Asphalt Grey, 2024 Body - Skid Plate and Bumper Diagram

Description

Price

Protective Plate Kit

715002374

$64.58

Hex. Flange Screw M6 X 20

207662054

$0.83

Flange Elastic Nut M6

233261434

$3.61

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.26

Flange Elastic Nut M6

233261434

$3.61

485

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.26

486

Flange Elastic Nut M6

233261434

$3.61

820

Deep Black, Bumber Kit

715004837

$227.99

822a

Carriage Bolt, M8 X 20

207782044

$1.56

822b

Torx Screw M8 X 30

250000886

$1.74

822c

Hex. Flange Elastic Nut M8

233281414

$1.14

830

Rear Bumper

715004920

$227.99

870

LH Rear Bracket | XT

705008164

$34.58

880

RH Rear Bracket | XT

705008165

$34.58

890

LH Rear Bumper Trim

705017676

$7.37

900

RH Rear Bumper Trim

705017677

$7.37

910

Stainless, Torx Screw M6 X 30

250000842

$1.74

911

Flange Elastic Nut M6

233261434

$3.61
