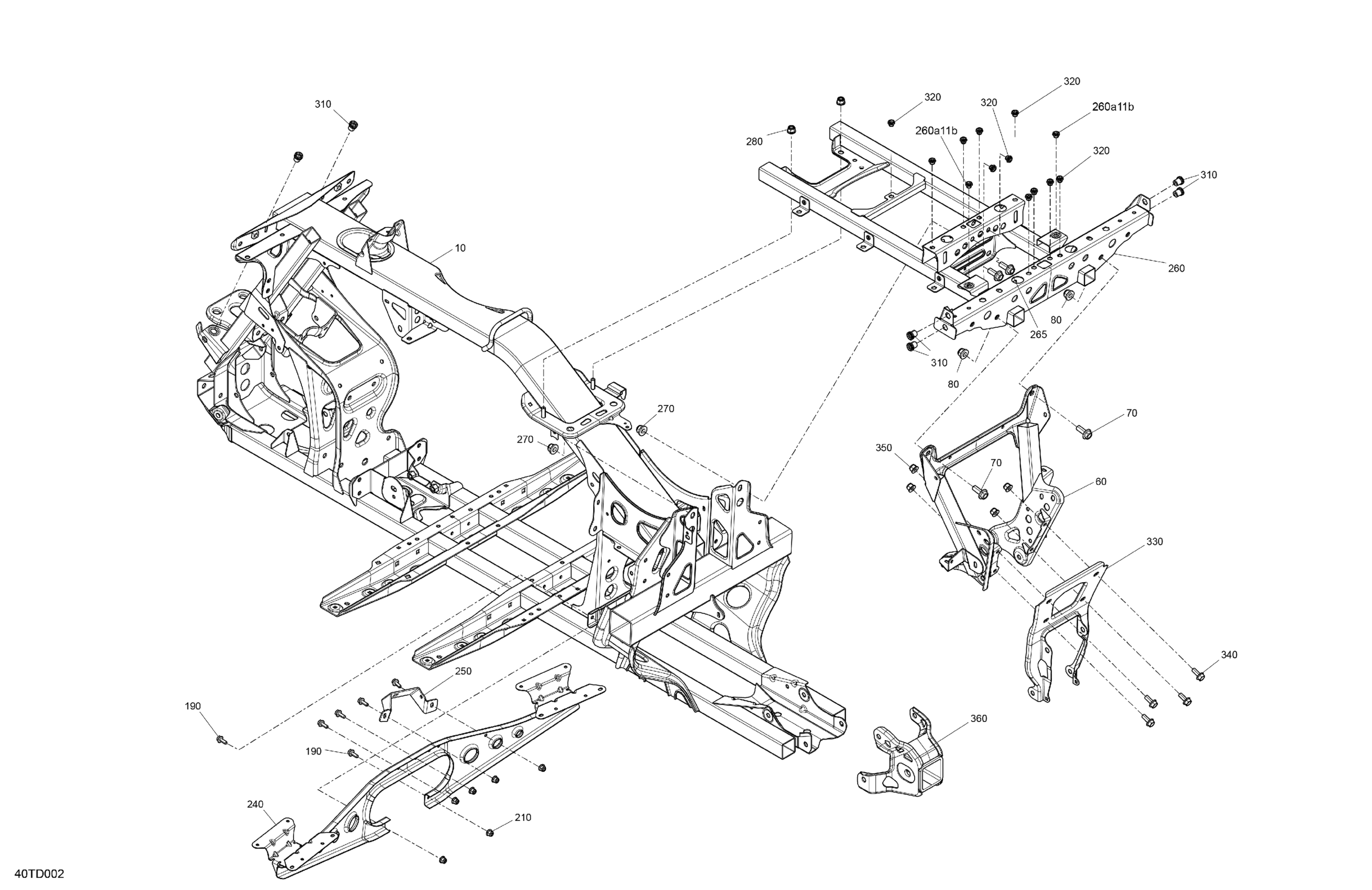

Can-Am CE - Outlander MAX 1000R EFI 4X4 - 5WRD - Limited Package - Asphalt Grey, 2024 Frame - System Diagram

Chassis

705210816

$1,049.99

Rear Pillar

705210818

$69.99

Hex. Flange Screw M10 X 25

207602546

$1.74

Hex. Flange Elastic Nut M10

233201436

$1.74

Hex. Flange Screw M6 X 16

207661644

$0.61

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Footrest Support

705210817

$79.99

Master Cylinder Support

705211539

$11.49

Chassis Extension

705210822

$118.74

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Hex. Flange Screw M10 X 25

207602546

$1.74

Hex. Flange Elastic Nut M10

233201436

$1.74

Hex. Flange Elastic Nut M8

233281414

$1.14

Insert Half Hex Body M8 x 1.25

293450307

$2.03

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Rear Support

705203301

$41.51

Hex. Flange Screw M8 X 20

207682046

$1.82

Hex. Elastic Flange Nut M8

233281416

$1.25

Trailer Hitch

715005186

$134.99
