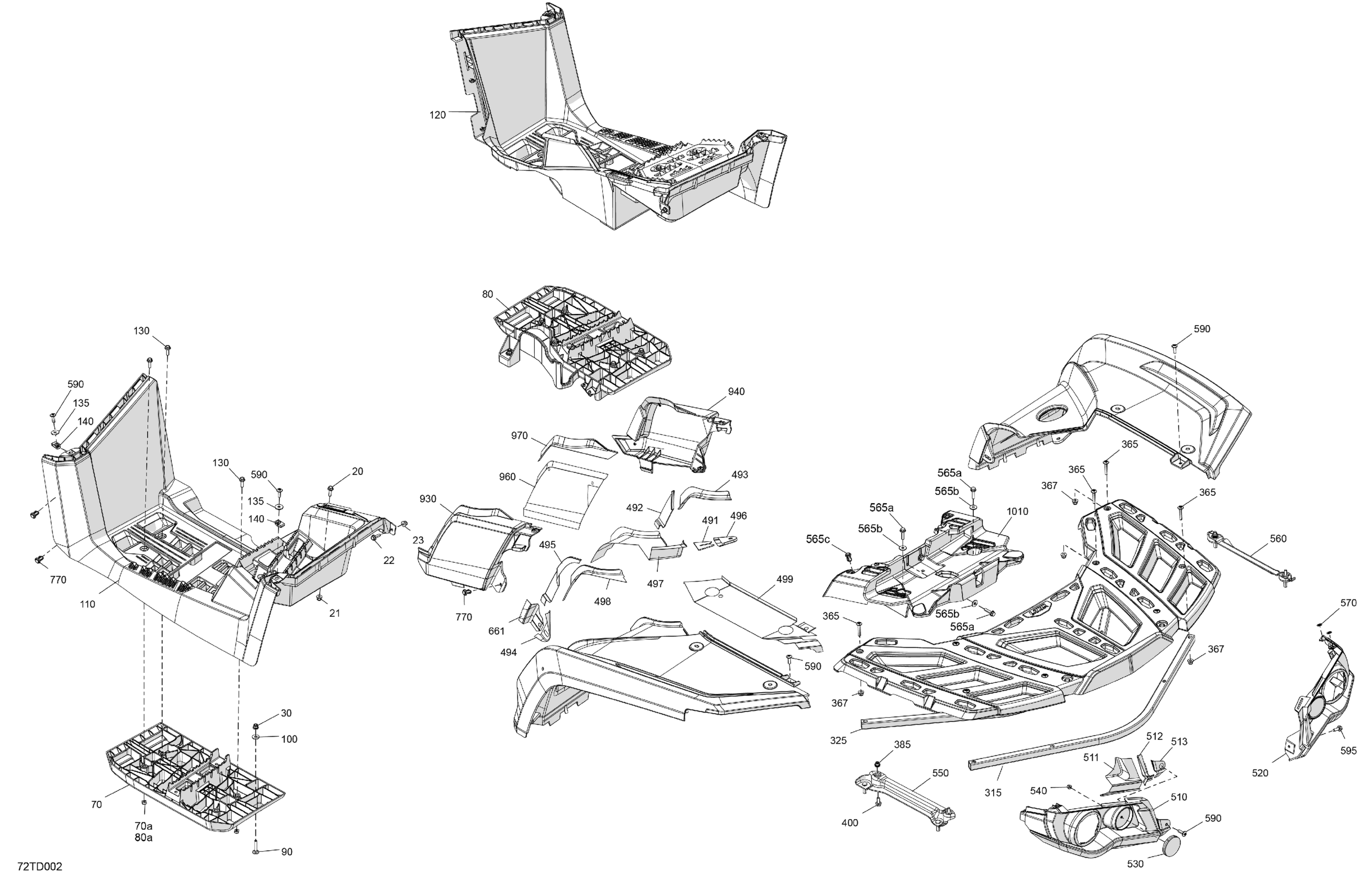

Can-Am CE - Outlander MAX 1000R EFI 4X4 - 5JRC - XT-P Package - Hyper Silver, 2024 Body - Rear Section Diagram

#

Description
Price

20

Hex. Flange Screw M6 X 20

207662054

$0.96

21

Flange Elastic Nut M6

233261434

$4.15

22

Hex. Flange Screw M6 X 20

207662054

$0.96

23

Flange Elastic Nut M6

233261434

$4.15

30

Flange Elastic Nut M6

233261434

$4.15

70

LH Structural Footboard

705011540

$108.18

70a

Square Nut M6

232862412

$1.36

80

RH Structural Footboard

705011542

$95.49

80a

Square Nut M6

232862412

$1.36

90

Carriage Bolt M6 X 35

207763554

$1.96

100

Flat Washer 6 mm

234062410

$0.73

110

LH Footrest Max

705003525

$117.88

120

RH Footrest Max

705003521

$117.88

130

Hex. Flange Screw M6 X 20

207662054

$0.96

135

Flat Washer

224061201

$1.27

140

Panel Nut M6 X 1.0

250100198

$1.99

315

Sectional Bent Tube

705016640

$34.30

325

Sectional Bent Tube

705016641

$38.03

365

Black, Torx Screw M6 X 35

250000646

$0.90

367

Flange Elastic Nut M6

233261434

$4.15

385

Insert Half Hex Body M6 x 1.0

250100199

$2.91

400

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

491

Heat Shield

707002456

$3.81

492

Heat Shield

707002457

$3.81

493

Heat Shield

707002458

$16.39

494

Heat Shield

707002459

$3.81

495

Heat Shield

707002460

$3.81

496

Heat Shield

707002461

$3.81

497

Heat Shield

707002462

$3.81

498

Heat Shield

707002583

$3.81

499

Heat Shield

707002464

$3.81

510

LH Rear Facia | North America, International

705006643

$14.27

511

Heat Shield

707002103

$8.66

512

Heat Shield

707002107

$1.91

513

Heat Shield

707002594

$0.88

520

RH Rear Facia | North America, International

705006650

$14.27

530

Red, Reflector

705016982

$11.96

540

Flange Elastic Nut M5

233251434

$1.91

550

LH Support

705007277

$27.58

560

RH Support

705007278

$27.58

565a

Hex Flange Screw M6 X 25

250000841

$7.06

565b

Stainless Steel Flat Washer

234062670

$2.00

565c

Tuflok Plastic Rivet

293150230

$1.39

570

Push Nut

732610072

$1.97

590

Torx Screw M6 X 20

250000722

$1.54

595

Hex. Flange Screw M6 X 16

207661654

$2.00

661

Heat Shield

707002467

$3.81

770

Tuflok Plastic Rivet

293150230

$1.39

930

LH Extension Panel

715001897

$24.60

940

RH Extension Panel

705004348

$23.85

960

Heat Shield

705006870

$4.76

970

Heat Shield

705006871

$4.76

1010

Seat Holder

705007948

$52.21
