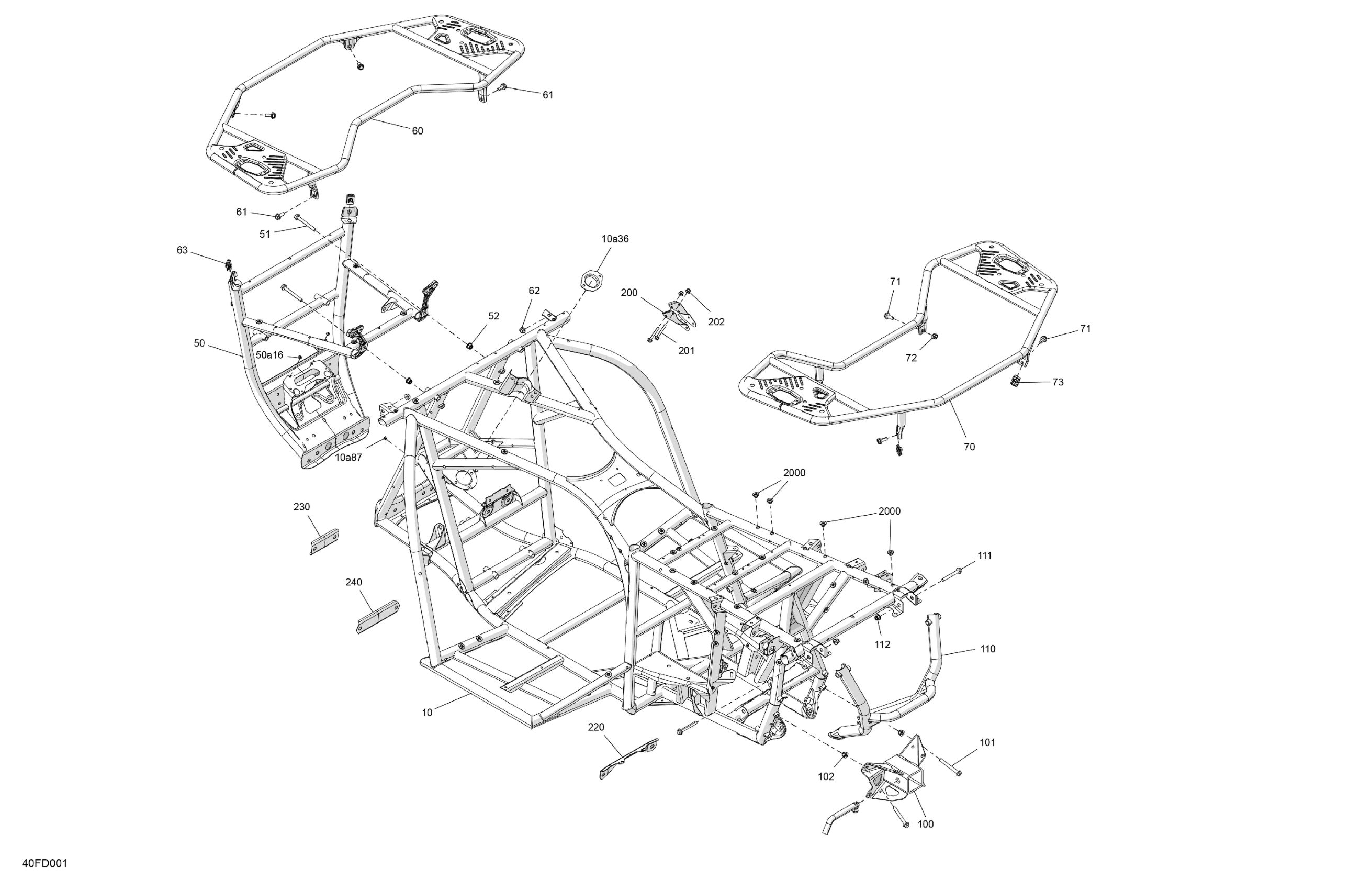

Can-Am CE - Outlander 700 4X4 - 1ERH - DPS Package - Legion Red, 2024 Frame - System Diagram

Chassis | Includes 10 to 10a87

705211691

$1,899.99

Lower Bearing Support

709402713

$41.51

Pop Rivet 3/16"

390402200

$0.26

Front Bumper | Includes 50 to 50a16

705208429

$258.43

Pop Rivet 3/16"

390402200

$0.26

Hex. Flange Screw M8 X 70

207687044

$6.11

Hex. Flange Elastic Nut M8

233281414

$1.14

Deep Black, Front Luggage Rack

705208148

$258.43

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Hex. Flange Nut M8

233181414

$0.91

Panel Nut M8 X 1.25

250100236

$3.43

Deep Black, Rear Luggage Rack

705208247

$239.97

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Hex. Flange Nut M8

233181414

$0.91

Panel Nut M8 X 1.25

250100236

$3.43

Trailer Hitch Kit

715009558

$115.35

Hex. Flange Screw, M8 X 65

207686544

$9.74

Hex. Flange Elastic Nut M8

233281414

$1.14

Rear Chassis Reinforcement Kit

715009552

$73.82

Hex. Flange Screw, M8 X 65

207686544

$9.74

Hex. Flange Elastic Nut M8

233281414

$1.14

Lever Support

705208228

$10.62

Hex. Flange Screw M6 X 45

207664544

$1.07

Hex. Flange Elastic Nut M6

233261466

$1.66

Rear Suspension Arm Reinforcement

705209026

$4.91

Front Upper Suspension Arm Reinforcement

705211665

$5.52

Front Lower Suspension Arm Reinforcement

705211664

$5.52

Threaded Insert

293450383

$2.31
