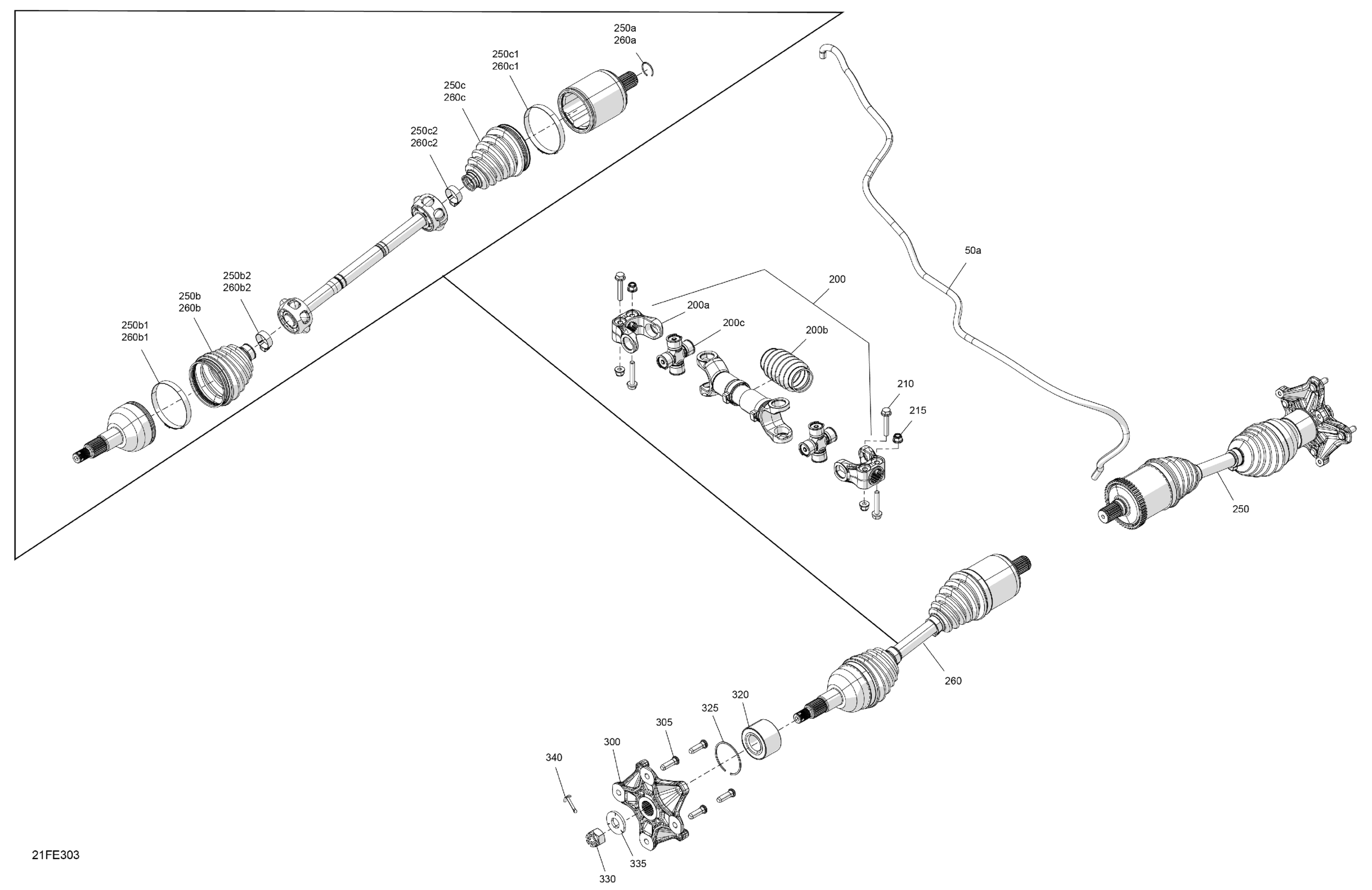

Can-Am CE - OUTLANDER - 4X4 - XTP - 1000R - 4HSD - Mineral Gray Satin - 2025 Drive - Rear - Common Parts Diagram

Description

Price

50a

Hose 6.35MM ID

219704534

$23.10

200

Rear Drive Axle | Includes 200 to 200c

705503887

$164.15

200a

Connecting Yoke 20Th

715900974

$35.79

200b

Drive Shaft Boot Kit

715900975

$13.28

200c

Universal Joint Ass'y

715900976

$43.25

210

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.79

215

Hex. Elastic Flange Nut M8

233281416

$1.43

250

CV Joint | Includes 250 to 250c2

705503460

$255.94

250a

Circlip Joint

715500463

$4.19

250b

CV Joint Boot Kit | Includes 250b to 250b2

715500531

$39.52

250b1

Clamp, Large

715500537

$4.94

250b2

Small Clamp

715500533

$4.94

250c

CV Joint Boot Kit | Includes 250c to 250c2

715500532

$39.52

250c1

Clamp, Large

715500538

$4.94

250c2

Small Clamp

715500533

$4.94

260

CV Joint | Includes 250 to 250c2

705503459

$226.84

260a

Circlip Joint

715500463

$4.19

260b

CV Joint Boot Kit | Includes 250b to 250b2

715500531

$39.52

260b1

Clamp, Large

715500537

$4.94

260b2

Small Clamp

715500533

$4.94

260c

CV Joint Boot Kit | Includes 250c to 250c2

715500532

$39.52

260c1

Clamp, Large

715500538

$4.94

260c2

Small Clamp

715500533

$4.94

300

Wheel Hub

705503257

$94.00

305

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.18

320

Ball Bearing

293350150

$52.21

325

Circlip

293370019

$4.68

330

Hex. Flange Castellated Nut M18

232291413

$3.24

335

Conical Spring Washer M18

250200171

$6.06

340

Cotter Pin

250400071

$2.00
