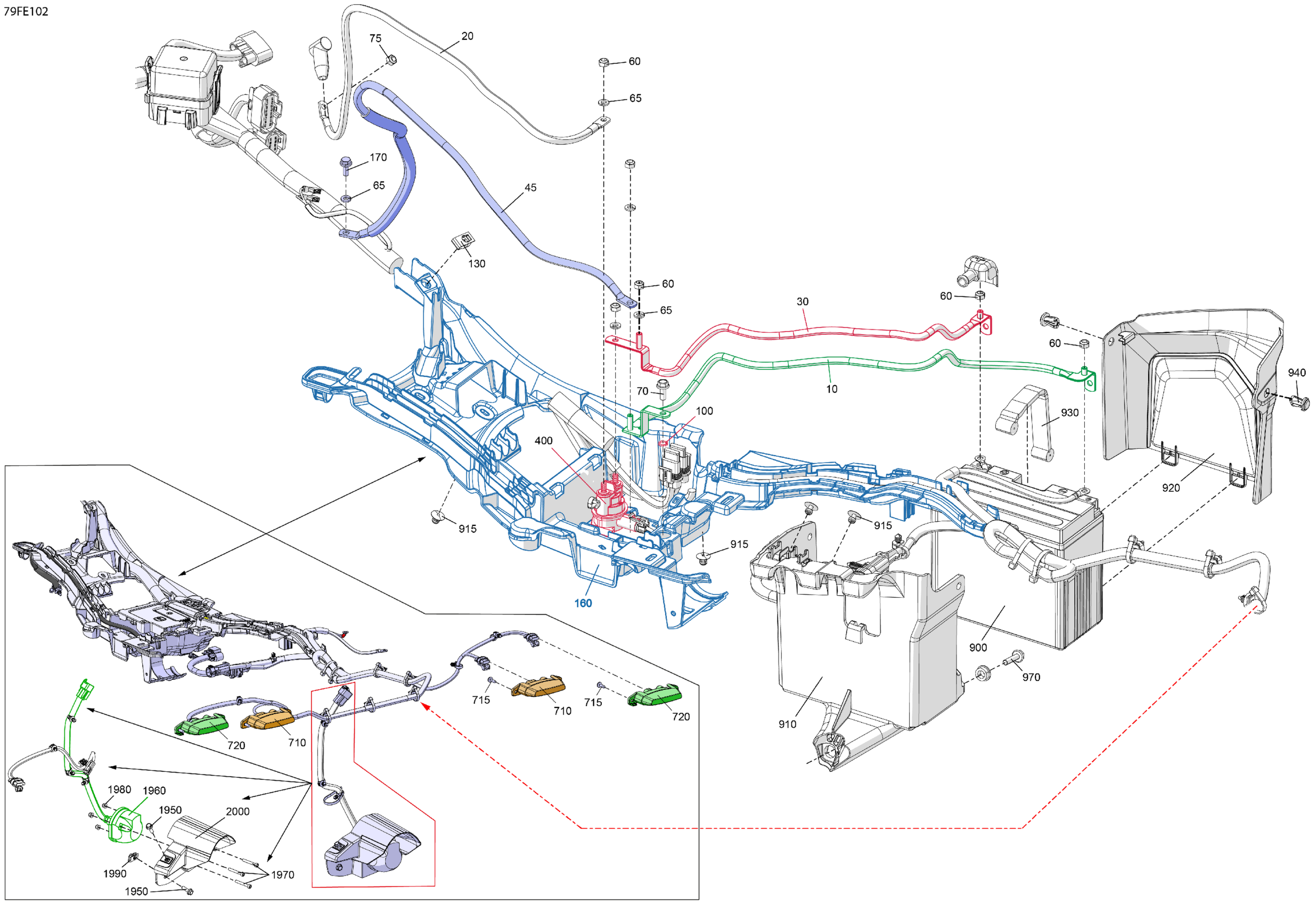

Can-Am CE - OUTLANDER - 4X4 - XT - 850 - 4ESR - Fiery Red Metallic - 2025 Electric - Rear Section Diagram

Description

Price

Screw | Not Shown

710009084

$1.48

Washer | Not Shown

710009082

$0.99

Negative Cable

710009367

$38.99

Positive Cable

710010016

$48.99

Positive Cable

710009368

$48.99

Negative Cable

710009388

$38.99

Elastic Stop Nut M6

232561434

$1.99

Lock Washer Helical M6

234161601

$1.49

Hex. Flange Screw M6 X 16

207661646

$1.49

Elastic Stop Nut M6

232561434

$1.99

100

External Serrated Lock Washer 6 mm

234461608

$1.49

130

Panel Nut M6 X 1.0

250100198

$2.19

160

Starter Relay Support

710009950

$43.99

170

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.99

400

Starter Relay

278003012

$43.99

710

Tail Light

710010031

$63.99

715

Torx Screw K50 X 16

250000720

$1.69

720

Amber, Turn Signal Light

710010032

$82.06

900

12 Volt 20ah Battery | Includes 3k to 3k1

715900973

$121.08

900a

Battery Bolt Kit

715500541

$3.39

910

Battery Support

710008195

$50.99

915

Black, Pop Rivet 3/16 X ,550

293150292

$1.49

920

Battery Cover

710008267

$15.99

930

Holding Strap

293850112

$18.49

940

Tuflok Plastic Rivet

293150230

$1.49

970

Hex. Flange Screw M6 X 25

207562544

$1.69

1950

Hex. Flange Screw M6 X 20

207662046

$2.19

1960

Trailer Harness

710005846

$229.99

1970

Socket Head Screw M5 X 35

205053588

$1.99

1980

Flange Elastic Nut M5

233251434

$2.09

1990

Panel Nut M6 X 1.0

250100198

$2.19

2000

Trailer Hitch Support

710009909

$6.30
