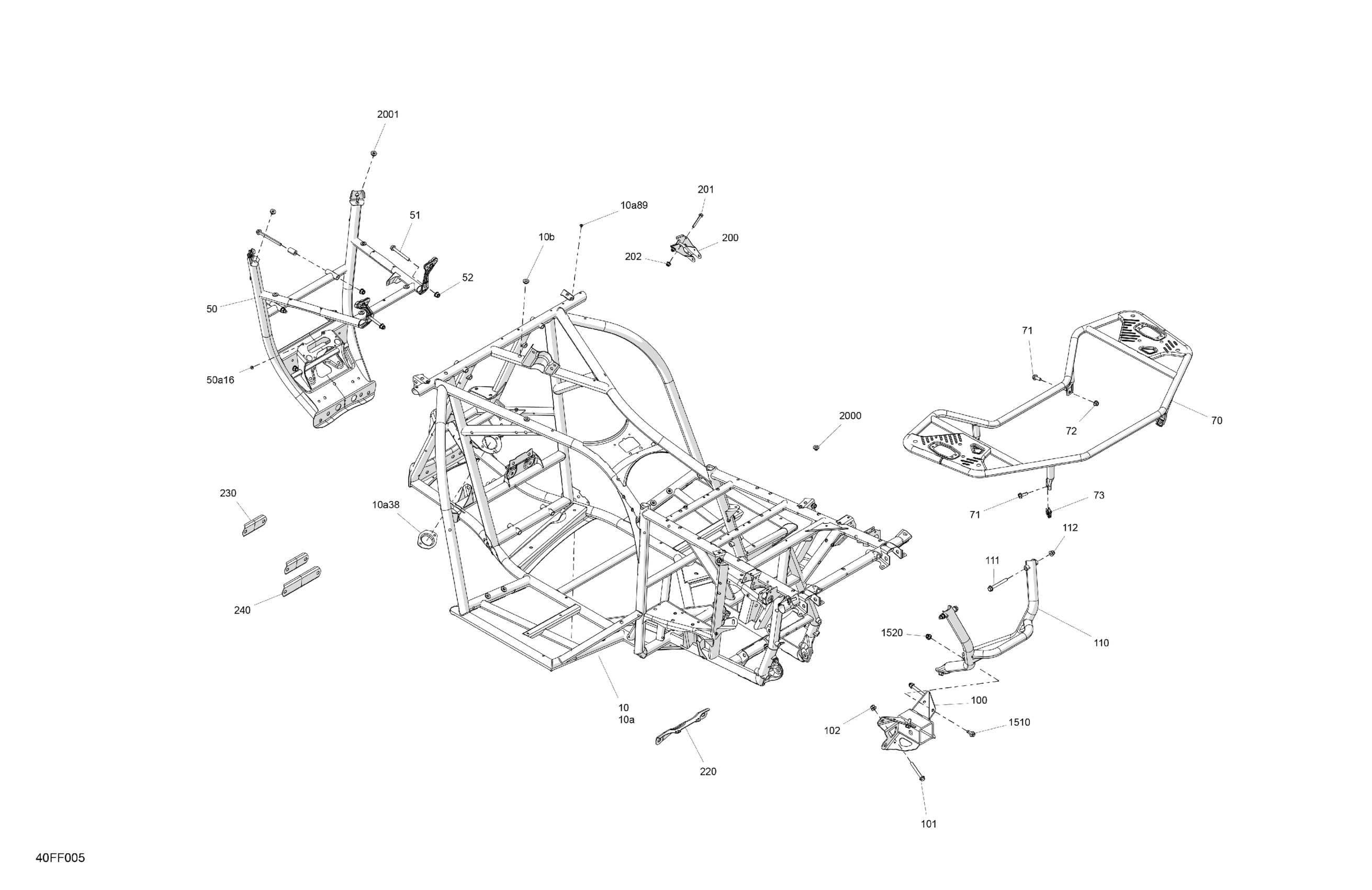

Can-Am CE - OUTLANDER - 4X4 - XMR - 700 - 1STD - Granite Grey - 2026 Frame - System Diagram

Description

Price

Chassis Ass'y | Includes 10 to 10b

715010932

$1,899.99

10a

Chassis Ass'y | Includes 10 to 10b

715010932

$1,899.99

10a38

Lower Bearing Support

709402713

$41.51

10a89

Pop Rivet 3/16 X ,425

293150293

$0.26

10b

Threaded Insert

293450383

$2.31

Front Bumper | Includes 50 to 50a16

705208429

$258.43

50a16

Pop Rivet 3/16 X ,425

293150293

$0.26

Hex. Flange Screw M8 X 70

207687044

$6.11

Hex. Flange Elastic Nut M8

233281414

$1.14

Deep Black, Rear Luggage Rack

705208247

$239.97

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Hex. Flange Nut M8

233181414

$0.91

Panel Nut M8 X 1.25

250100236

$3.43

100

Trailer Hitch | Includes 100 to 100a3

705211925

Unavailable

101

Hex. Flange Screw, M8 X 65

207686544

$9.74

102

Hex. Flange Elastic Nut M8

233281414

$1.14

110

Deep Black, Rear Chassis Reinforcement

705212173

Unavailable

111

Hex. Flange Screw M8 X 70

207687044

$6.11

112

Hex. Flange Elastic Nut M8

233281414

$1.14

200

Lever Support

705208228

$10.62

201

Hex. Flange Screw M6 X 45

207664544

$1.07

202

Hex. Flange Elastic Nut M6

233261466

$1.66

220

Rear Suspension Arm Reinforcement

705209026

$4.91

230

Front Upper Suspension Arm Reinforcement

705212296

$5.52

240

Front Lower Suspension Arm Reinforcement

705211664

$5.52

1510

Hex. Flange Screw M8 X 20

207682044

$0.92

1520

Hex. Flange Elastic Nut M8

233281414

$1.14

2000

Threaded Insert

293450383

$2.31

2001

Threaded Insert

293450383

$2.31
