02- Engine - Fuel

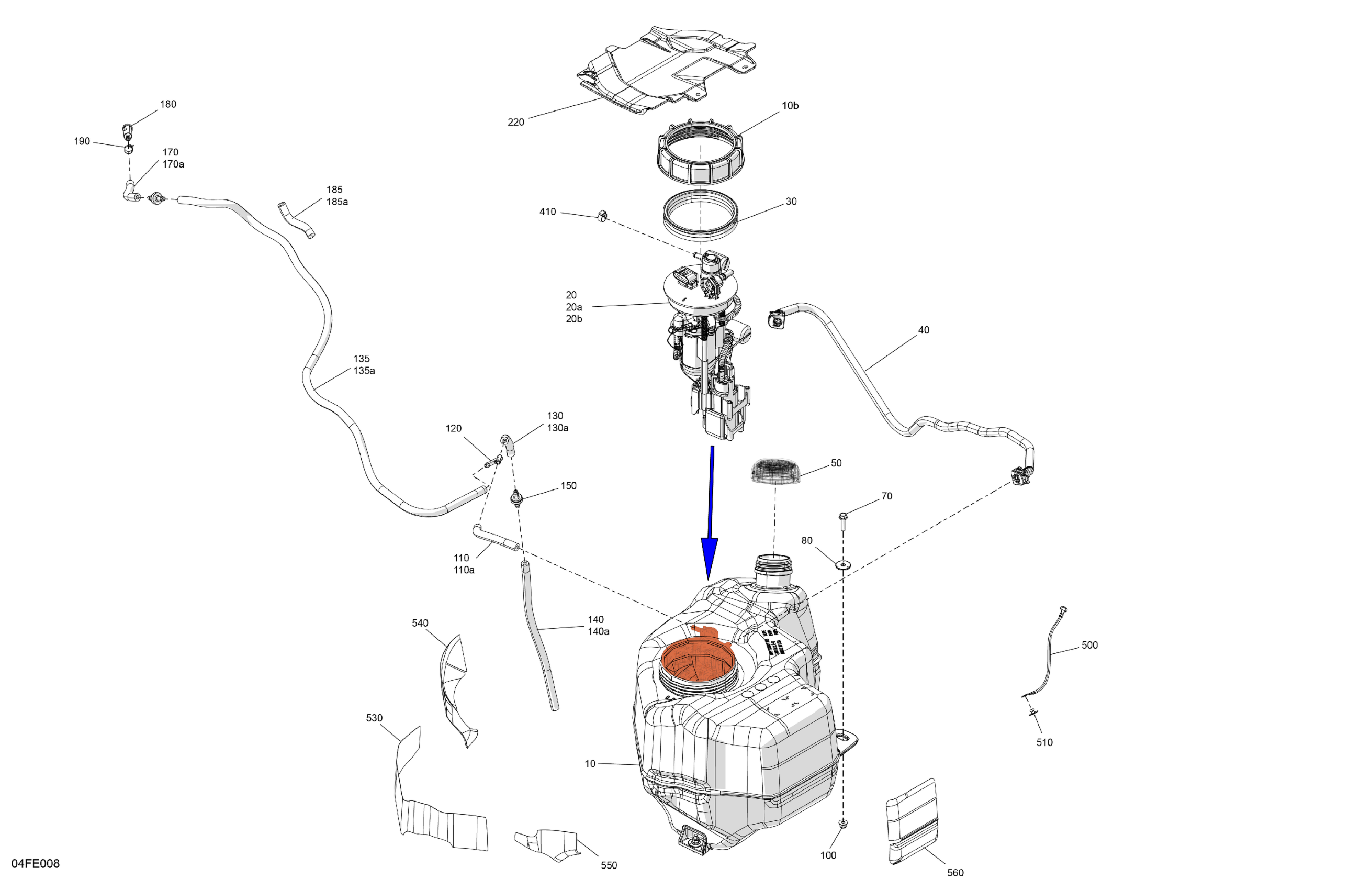

Can-Am CE - OUTLANDER - 4X4 - XMR - 700 - 1SSC - Legion Red - 2025 02- Engine - Fuel Diagram
#
10
Fuel Tank | Includes 10 to 10b
709001182
Unavailable
10b
Special Nut M130
250100062
Unavailable
20
Fuel Pump | Includes 20 to 20b
709001192
Unavailable
20a
Fuel Pre-Filter
709001390
Unavailable
20b
Fuel Level Sensor
709001391
Unavailable
30
Pump Gasket
293250514
Unavailable
40
Fuel Tank Hose
709001076
Unavailable
50
Fuel Cap
709000868
Unavailable
70
Hex. Flange Screw M6 X 25
207662554
Unavailable
80
Shouldered Bushing
709001343
Unavailable
100
Hex. Flange Elastic Nut M6
233261466
Unavailable
110
Hose 6.35MM ID
219704534
Unavailable
110a
Not Available As Spare Parts
XXX
Unavailable
120
Y-Fitting
293710059
Unavailable
130
Hose 6.35MM ID
219704534
Unavailable
130a
Not Available As Spare Parts
XXX
Unavailable
135
Hose 6.35MM ID
219704534
Unavailable
135a
Not Available As Spare Parts
XXX
Unavailable
140
Hose 6.35MM ID
219704534
Unavailable
140a
Not Available As Spare Parts
XXX
Unavailable
150
Check Valve
275500398
Unavailable
170
Hose 6.35MM ID
219704534
Unavailable
170a
Not Available As Spare Parts
XXX
Unavailable
180
Filter
709001120
Unavailable
185
Hose 6.35MM ID
219704534
Unavailable
185a
Not Available As Spare Parts
XXX
Unavailable
190
Spring Clamp
414415200
Unavailable
220
Panel
709001104
Unavailable
410
Oetiker Clamp
293650046
Unavailable
500
Ground Wire
278003272
Unavailable
510
Black, Pop Rivet 3/16 X ,425
293150291
Unavailable
530
Heat Shield
709001417
Unavailable
540
Heat Shield
709001418
Unavailable
550
Heat Shield
709001419
Unavailable
560
Heat Shield
709001563
Unavailable
