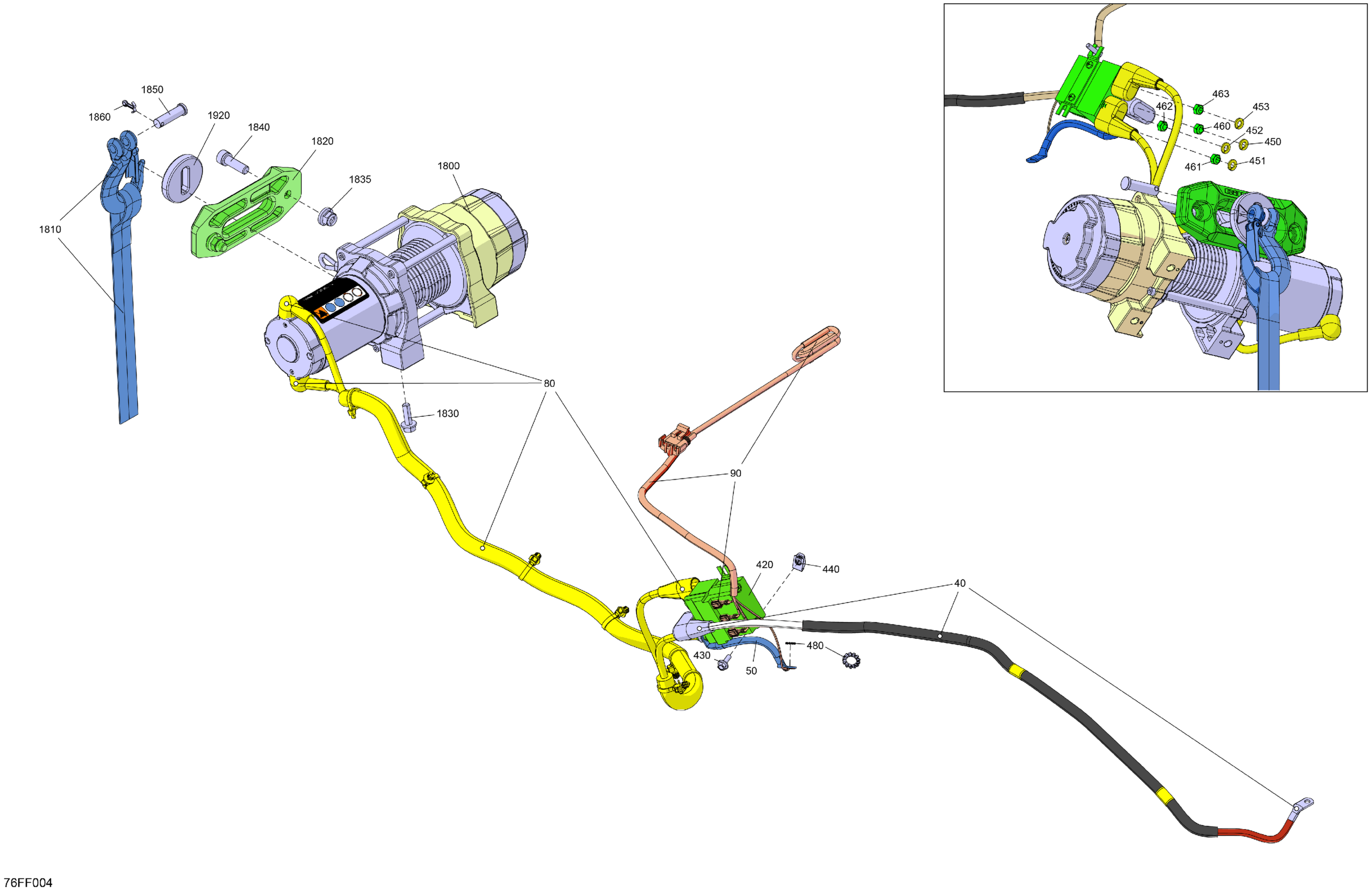

Can-Am CE - OUTLANDER - 4X4 - XMR - 1000R - 4LTC - Loft Green Satin - 2026 Electric - Winch Diagram

Description

Price

Power Cable Solenoid

710011144

$24.60

Negative Cable

710008878

$35.04

Winch Power Cable

710010156

$76.09

Winch Wiring Harness

710006833

$36.54

420

Solenoid

710009454

$49.97

430

Hex. Flange Screw M5 X 16

207651646

$2.00

440

Panel Nut M5 X 0.8

250000958

$4.00

450

Lock Washer Helical M6

234161601

$1.06

451

Lock Washer Helical M6

234161601

$1.06

452

Lock Washer Helical M6

234161601

$1.06

453

Lock Washer Helical M6

234161601

$1.06

460

Elastic Stop Nut M6

232561414

$1.78

461

Elastic Stop Nut M6

232561414

$1.78

462

Elastic Stop Nut M6

232561414

$1.78

463

Elastic Stop Nut M6

232561414

$1.78

480

External Serrated Lock Washer 6 mm

234461608

$1.06

1800

Electric Winch

710011200

$229.99

1810

Winch Hook Kit

705014949

$23.10

1820

Fairlead

710009878

$13.48

1830

Hex Flange Screw M8 X 25 S.Grip

207582554

$1.96

1835

Panel Nut M10 X 1.5

250001264

$3.94

1840

Screw Socket Head M10 X 30

205003054

$2.64

1850

Winch Hook Kit

705014949

$23.10

1860

Winch Hook Kit

705014949

$23.10

1920

Stopper

710007028

$9.88

1930

Hex. Flange Screw M6 X 16

207661646

$1.15
