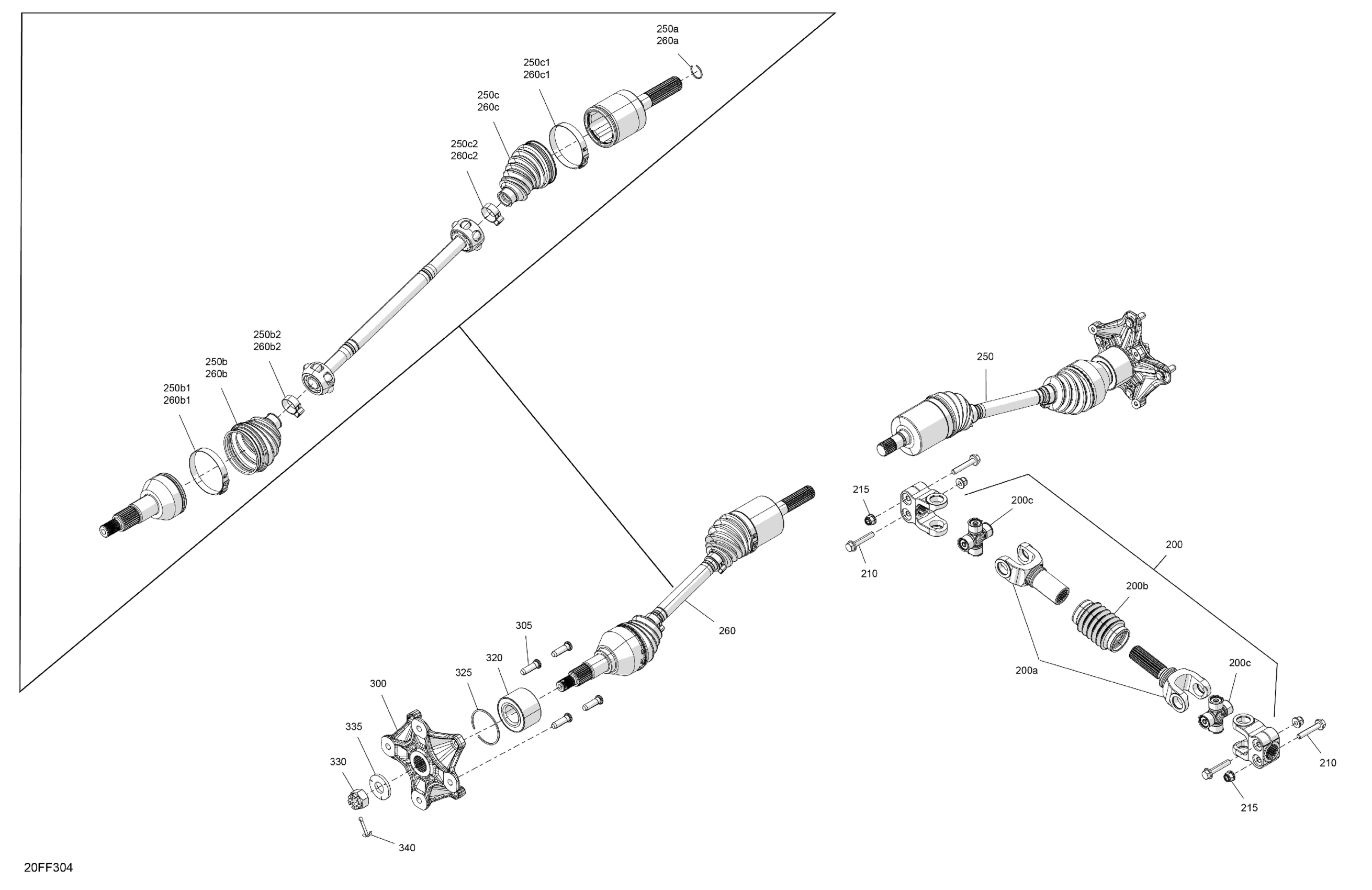

Can-Am CE - OUTLANDER - 4X4 - XMR - 1000R - 4LTC - Loft Green Satin - 2026 Drive - Front - Common Parts Diagram

Description

Price

200

Front Drive Axle

705403806

$184.58

200a

Connecting Yoke

715900998

$36.89

200b

Drive Shaft Boot Kit

715900999

$13.83

200c

Universal Joint Ass'y

715901000

$44.17

210

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.30

215

Hex. Elastic Flange Nut M8

233281416

$1.25

250

RH Front CV Joint | Includes 250 to 250c2

705403316

$231.79

250a

Circlip Joint

715500455

$5.52

250b

CV Joint Boot Kit | Includes 250b to 250b2

715500529

$41.51

250b1

Clamp, Large

715500535

$5.52

250b2

Clamp Small

715500475

$5.52

250c

CV Joint Boot Kit | Includes 250c to 250c2

715500530

$41.51

250c1

Clamp, Large

715500536

$5.52

250c2

Clamp Small

715500475

$5.52

260

LH Front CV Joint | Includes 260 to 260c2

705403317

$233.82

260a

Circlip Joint

715500455

$5.52

260b

CV Joint Boot Kit | Includes 250b to 250b2

715500529

$41.51

260b1

Clamp, Large

715500535

$5.52

260b2

Clamp Small

715500475

$5.52

260c

CV Joint Boot Kit | Includes 250c to 250c2

715500530

$41.51

260c1

Clamp, Large

715500536

$5.52

260c2

Clamp Small

715500475

$5.52

300

Wheel Hub

705503257

$96.42

305

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

320

Ball Bearing

293350150

$51.93

325

Circlip

293370019

$4.98

330

Hex. Flange Castellated Nut M18

232291413

$2.82

335

Conical Spring Washer M18

250200171

$5.28

340

Cotter Pin

250400071

$1.74
