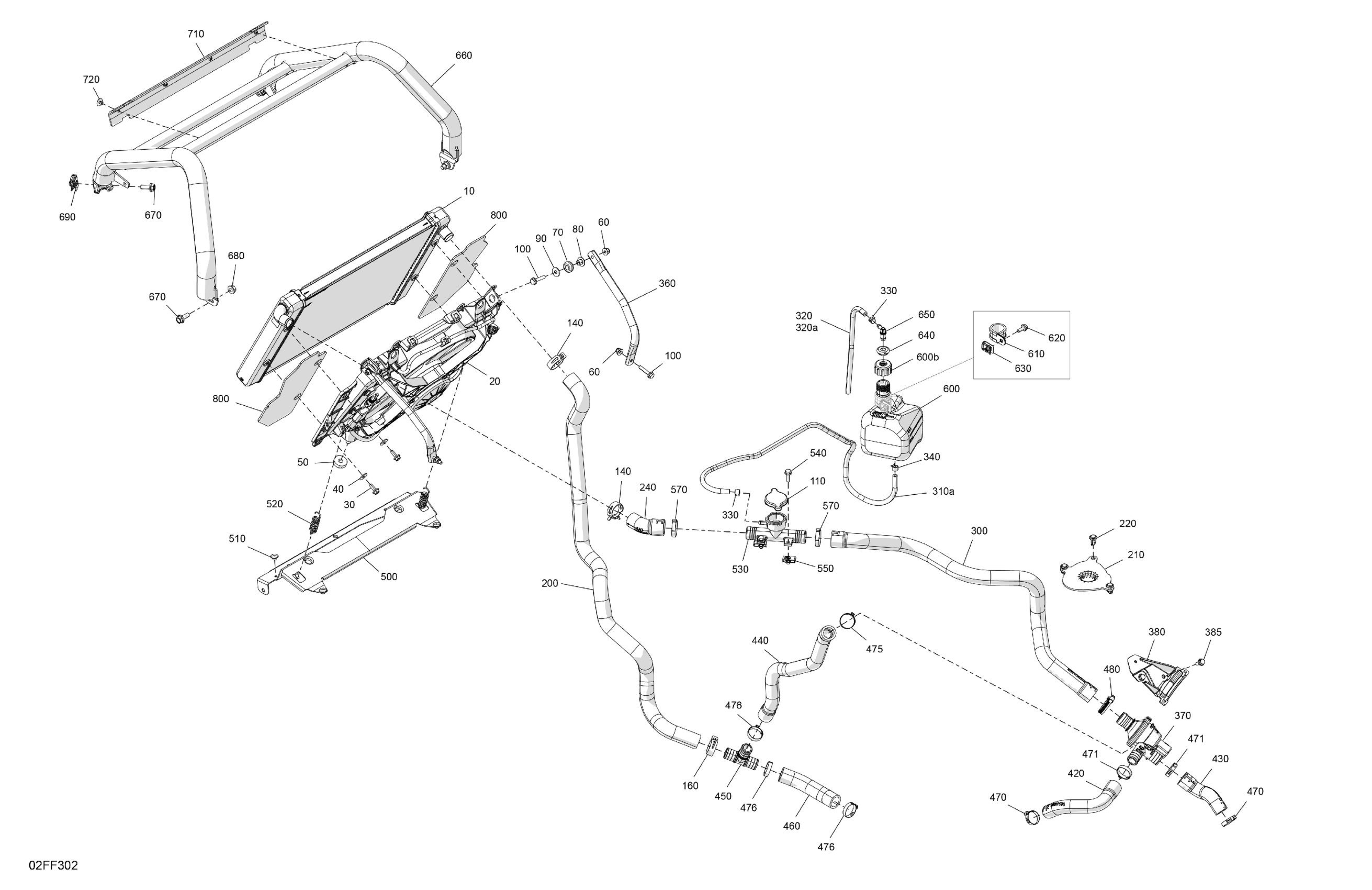

Can-Am CE - OUTLANDER - 4X4 - XMR - 1000R - 4LTC - Loft Green Satin - 2026 Engine - Cooling Diagram

#

Description
Price

10

Radiator

709201126

$409.20

20

Cooling Fan

709201622

$239.97

30

Hex Flange Screw M6 X 16

250000906

$4.39

40

Flat Washer 6 mm

234062410

$0.64

50

Grommet

709200948

$7.09

60

Hex. Flange Elastic Nut M6

233261466

$1.66

70

Overmolded Grommet

293720130

$4.38

80

Bushing

709001288

$7.71

90

Flat Washer

250200082

$0.35

100

Hex. Flange Screw M6 X 30

207663046

$1.42

110

Radiator Pressure Cap

709200207

$18.82

140

Norma Spring Clamp

293650108

$4.00

160

Norma Spring Clamp

293650108

$4.00

200

Radiator Hose

709201591

$32.28

210

Plug

709201461

$12.91

220

Tuflok Plastic Rivet

293150230

$1.21

240

Coolant Hose

709201593

$32.28

300

Hose

709201595

$32.28

310a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

320

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

320a

Not Available As Spare Parts

XXX

Unavailable

330

Spring Clamp

414554800

$0.83

340

Spring Clamp

414420700

$0.68

360

Tube

709201205

$18.43

370

Housing

709201279

$92.28

380

Thermostat Support

709201282

$4.60

385

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.56

420

Thermostat Hose

709201596

$9.29

430

Thermostat Hose

709201597

$9.29

440

Thermostat Hose

709201598

$16.12

450

T-Fitting

709201420

$15.35

460

Water Pump Hose

709201599

$16.12

470

Crimp Clamp

293650099

$3.55

471

Crimp Clamp

293650331

$4.28

475

Crimp Clamp

293650331

$4.28

476

Crimp Clamp

293650331

$4.28

480

Norma Gear Clamp

293650098

$4.28

500

Support

709201380

$36.89

510

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

520

Brake Pedal Spring

705600792

$9.22

530

Filler Neck

709200422

$17.57

540

Hex. Flange Screw M6 X 20

207662034

$1.74

550

Panel Nut M6 X 1.0

250100198

$1.73

570

Crimp Clamp

293650332

$4.90

600

Coolant Tank Ass'y | Includes 290 to 290b

703501190

$96.89

600b

Cap

709200586

$11.06

610

Hose Anchor

709200036

$10.83

620

Hex. Flange Screw M6 X 20

207662034

$1.74

630

Panel Nut M6 X 1.0

250100208

$1.07

640

Grommet

705003264

$3.43

650

Male Connector

414580700

$3.38

660

Liquid Titan, Bumper Reinforcement

705213185

$239.49

670

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

680

Hex. Flange Nut M8

233181414

$0.91

690

Panel Nut M8 X 1.25

250100236

$3.43

710

Gasket

709201191

$8.29

720

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

800

Gasket

709201192

$8.29
