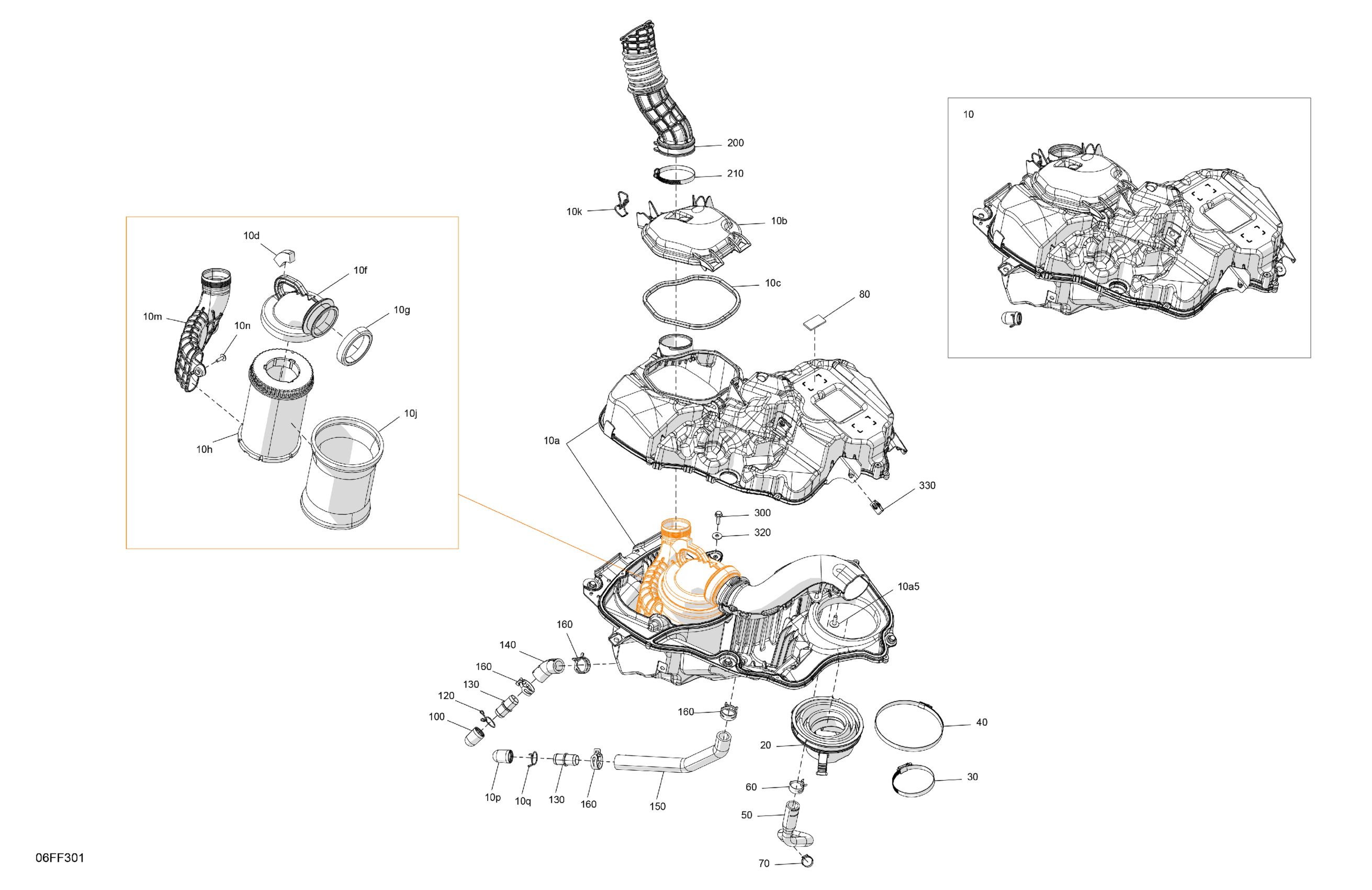

Can-Am CE - OUTLANDER - 4X4 - XMR - 1000R - 4LTC - Loft Green Satin - 2026 Engine - Air Intake Diagram

Description

Price

Intake Silencer Cover Kit | Includes 10 to 10c

715010544

$27.66

10a

Intake Silencer | Includes 10a to 10a5

707801083

$175.35

10a5

Screw PT Type K-50 X 16

250000959

$1.74

10b

Access Cover

707801087

Unavailable

10c

Neoprene Seal

293250630

$3.68

10d

Gasket

293250698

$18.43

10f

Rigid Adapter

707801092

$3.68

10g

Gasket

707801088

$18.43

10h

Air Filter With Prefilter | Includes 10h - 10j

703501249

$47.66

10j

Prefilter

707800887

$27.49

10k

Latch

293730117

$9.29

10m

Secondary Tube

707801086

$23.05

10n

Screw PT Type K-50 X 16

250000959

$1.74

10p

Cap

293000135

$7.37

10q

Spring Clamp

707801043

$12.91

Intake Boot

707801094

$18.43

Norma Clamp

293650091

$4.60

Gear Clamp (Norma)

514052861

$7.80

Crankcase Hose

707801089

$23.05

Norma Spring Clamp

293650213

$3.11

Oetiker Clamp | Europe

293650030

$4.32

RUBBER PAD - Call your local BRP dealership

293830129

Unavailable

100

Cap

293000135

$7.37

120

Spring Clamp

707801043

$12.91

130

Straight Fitting

270001073

$9.00

140

Secondary Drain Hose

707801099

$19.20

150

Primary Drain Hose

707801100

$19.20

160

Norma Spring Clamp

293650109

$4.00

200

Intake Duct

707801091

$36.89

210

Norma Gear Clamp

293650118

$9.74

300

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

320

Flat Washer 6 mm

234062410

$0.64

330

Panel Nut M6 X 1.0

250100198

$1.73
