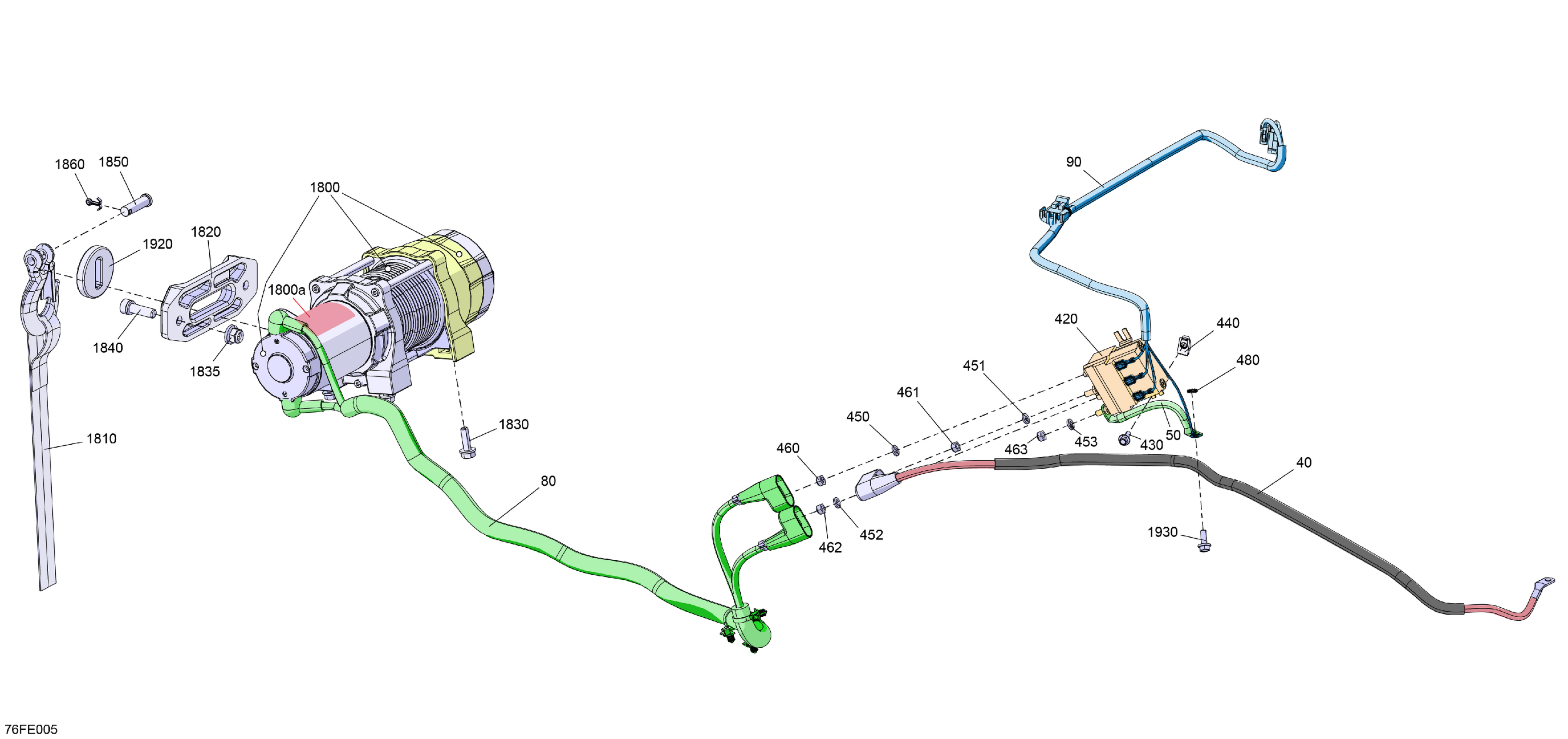

Can-Am CE - OUTLANDER - 4X4 - XMR - 1000R - 4LSC - Hyper Silver - 2025 Electric - Winch Diagram

Description

Price

Solenoid Power Cable

710006292

$27.66

Negative Cable

710008878

$36.89

Winch Power Cable

710010156

$83.05

Winch Wiring Harness

710006833

$41.51

420

Solenoid

710009454

$55.35

430

Hex. Flange Screw M5 X 16

207651646

$1.74

440

Panel Nut M5 X 0.8

250000958

$3.48

450

Lock Washer Helical M6

234161601

$0.92

451

Lock Washer Helical M6

234161601

$0.92

452

Lock Washer Helical M6

234161601

$0.92

453

Lock Washer Helical M6

234161601

$0.92

460

Elastic Stop Nut M6

232561434

$1.55

461

Elastic Stop Nut M6

232561434

$1.55

462

Elastic Stop Nut M6

232561434

$1.55

463

Elastic Stop Nut M6

232561434

$1.55

480

External Serrated Lock Washer 6 mm

234461608

$0.92

1800

Electric Winch | Includes 1800 to 1800a

710009410

$234.99

1800a

Winch Decal HD3500 S

704910136

Unavailable

1810

Winch Hook Kit

705014949

$27.66

1820

Fairlead

710009878

$14.75

1830

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

1835

Hex. Flange Elastic Nut M10

233201436

$1.74

1840

Socket Screw M10 x 30 | XT

205003044

$2.61

1850

Winch Hook Kit

705014949

$27.66

1860

Winch Hook Kit

705014949

$27.66

1920

Stopper

710007028

$10.18

1930

Hex. Flange Screw M6 X 16

207661646

$1.00
