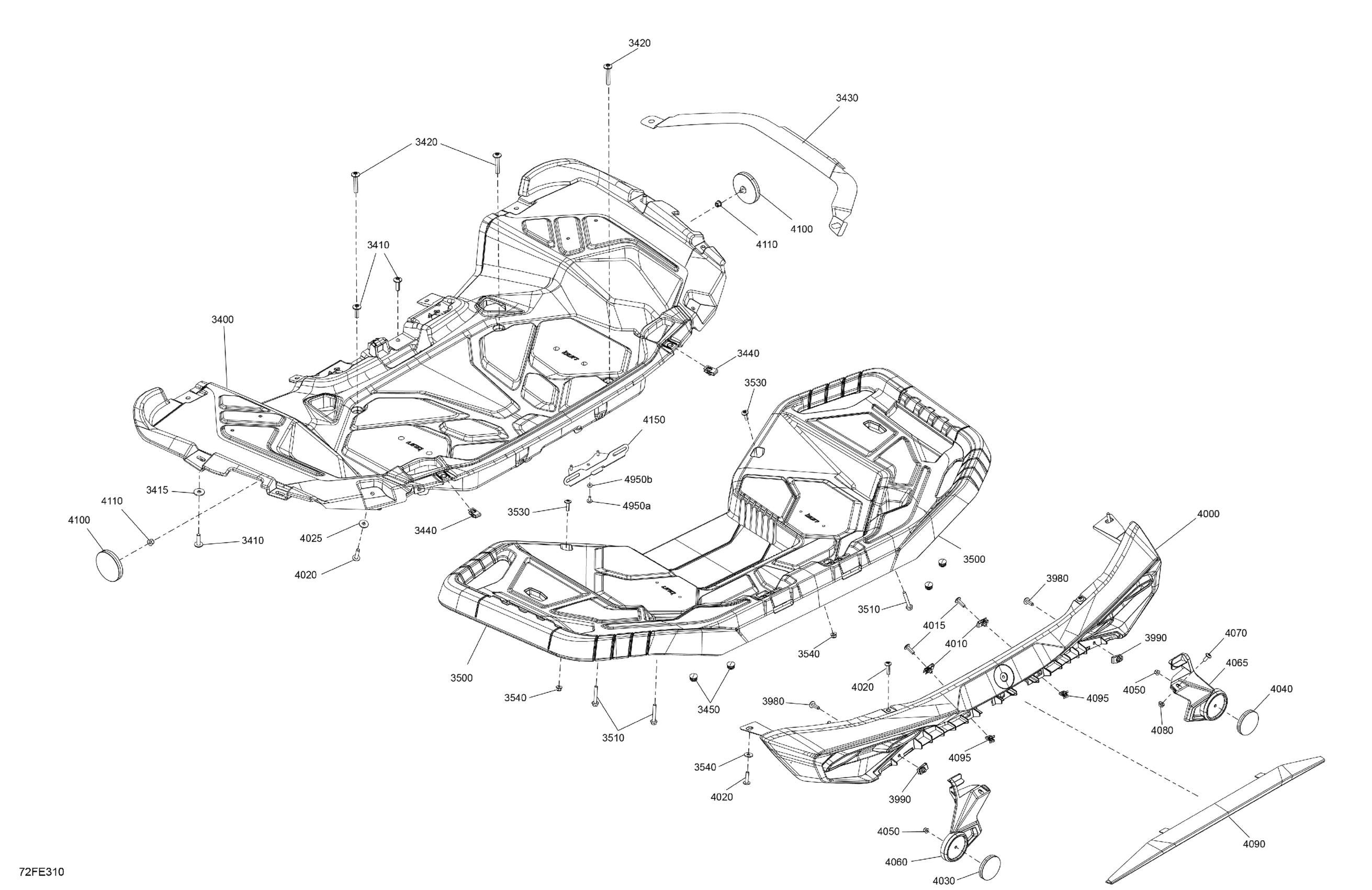

Can-Am CE - OUTLANDER - 4X4 - XMR - 1000R - 4LSC - Hyper Silver - 2025 Body - Rear Section Diagram

Description

Price

3400

Rear Multi Purpose Support

705017617

$119.99

3410

Screw Torx M6 X 20

250001257

$1.54

3415

Flat Washer 6 mm

234062410

$0.73

3420

Screw Torx M6 X 35

250001258

$2.00

3430

Heat Shield

705018564

$3.81

3440

Panel Nut M6 X 1.0

250100198

$1.99

3450

Bumper Plug, Black

291000339

$2.69

3500

ATV Luggage Rack Kit

715010217

$148.99

3510

Hex. Flange Screw M6 X 35

207663544

$0.85

3530

Screw Torx M6 X 20

250001257

$1.54

3540

Hex. Flange Elastic Nut M6

233261466

$1.91

3980

Screw Torx M6 X 20

250001257

$1.54

3990

Panel Nut M6 X 1.0

250100198

$1.99

4000

Rear Light Support

705015794

$46.24

4010

Panel Nut M6 X 1.0

250100198

$1.99

4015

Screw Torx M6 X 20

250001257

$1.54

4020

Torx-Truss M/S M6 X 25

250001000

$4.97

4025

Flat Washer 6 mm

234062410

$0.73

4030

Red, Reflector

705016982

$11.96

4040

Red, Reflector

705016982

$11.96

4050

Hex. Flange Elastic Nut M5

233251414

$1.91

4060

LH Reflector Support

705018444

$17.88

4065

RH Reflector Support

705018445

$17.88

4070

Torx Head Screw M6 X 16

250000717

$2.00

4080

Hex. Flange Nut M6

233161414

$2.00

4090

Hyper Silver, Rear Grille Trim

705018923

$80.57

4095

Edge Clip

517302785

$0.81

4100

Red, Reflector

705016982

$11.96

4110

Hex. Flange Elastic Nut M5

233251414

$1.91

4150

License Plate Support

705019552

$15.64

4950a

Torx Head Screw M6 X 16

250000717

$2.00

4950b

Stainless Steel Flat Washer

234062670

$2.00
