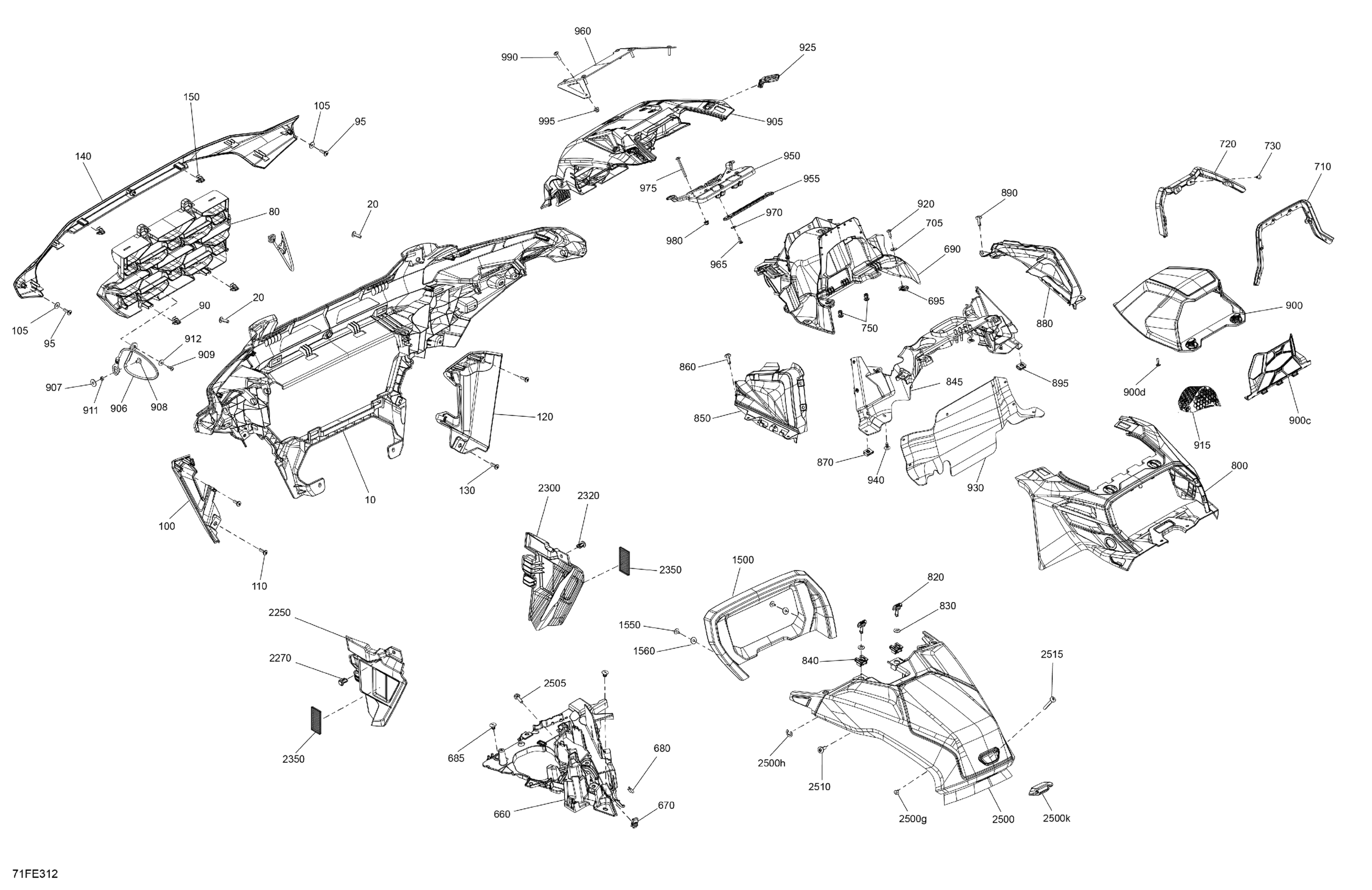

Can-Am CE - OUTLANDER - 4X4 - XMR - 1000R - 4LSC - Hyper Silver - 2025 Body - Front Section Diagram

#

Description
Price

10

Front Grille

705018771

$89.99

20

Screw Torx M6 X 20

250001257

$1.54

80

Air Inlet Grille

705017947

$23.85

90

Clip

517306478

$1.03

95

Torx Screw K50 X 16

250000720

$1.60

100

LH Grille Trim

705018179

$16.39

105

Washer M5

250200025

$0.70

110

Torx Screw K50 X 16

250000720

$1.60

120

RH Grille Trim

705018185

$16.39

130

Torx Screw K50 X 16

250000720

$1.60

140

Hyper Silver, Front Grille Trim

705018860

$108.18

150

Clip

517306478

$1.03

660

Multi Purpose Support

705018178

$13.81

670

Panel Nut M6 X 1.0

250100198

$1.99

680

Clip

414479100

$1.81

685

Black, Pop Rivet 3/16 X ,425

293150291

$0.52

690

Dashboard Support Kit

715010533

$89.52

695

Panel Nut M6 X 1.0

250100208

$1.22

705

Stainless Steel Flat Washer

234062670

$2.00

710

Front Gasket

705018851

$15.64

720

Rear Gasket

705018852

$15.64

730

BLACK DART - Call your local BRP dealership

293730076

Unavailable

750

Tuflok Plastic Rivet

293150230

$1.39

800

Dashboard

705015789

$41.76

820

Quarter Turn

708400278

$4.15

830

Washer

708400286

$3.90

840

Clip

708400285

$3.90

845

Lower Dashboard Support

705018405

$35.79

850

LH Radiator Guard

705014883

$17.88

860

Screw Torx M6 X 20

250001257

$1.54

870

Panel Nut M6 X 1.0

250100208

$1.22

880

RH Radiator Guard

705014884

$17.88

890

Screw Torx M6 X 20

250001257

$1.54

895

Panel Nut M6 X 1.0

250100208

$1.22

900

Snorkel Ass'y | Includes 900 to 900d

705018893

$92.51

900c

Filter

705019010

$49.22

900d

Torx Screw K50 X 16

250000720

$1.60

905

Hood

709201313

$89.99

906

Retaining Cable

708304440

$29.82

907

Flat Washer

250200097

$2.00

908

Torx-truss M/s M6 X 10

250000995

$4.15

909

Torx-Truss Pt K40 X 16

250000759

$2.00

911

Bushing

708300737

$4.43

912

Washer M5

250200025

$0.70

915

Air Inlet Grille

707003398

$23.85

920

Screw Torx M6 X 20

250001257

$1.54

925

Front Soft Latch

517309435

$11.79

930

Baffle

705019087

$20.12

940

Black, Dart

293730011

$0.91

950

Tool Kit Support

709201464

$47.73

955

Retaining Strap

708303885

$2.84

960

Hood Trim

709201466

$25.34

965

Torx Screw K50 X 16

250000720

$1.60

970

Washer M5

250200025

$0.70

975

Torx Screw M6 X 60

250000648

$7.06

980

Hex. Flange Elastic Nut M6

233261466

$1.91

990

Torx Screw M6 X 25

250000758

$2.00

995

Hex. Flange Elastic Nut M6

233261466

$1.91

1500

Console Trim

705017853

$41.76

1550

Plastite Screw M4 X 10

250000805

$2.00

1560

Washer M5

250200025

$0.70

2250

LH Front Radiator Deflector

705015256

$16.39

2270

Tuflok Plastic Rivet

293150230

$1.39

2300

RH Front Radiator Deflector

705015257

$16.39

2320

Tuflok Plastic Rivet

293150230

$1.39

2350

Amber, Reflector

520002680

$18.63

2500

Glove Box Ass'y | Includes 2500 to 2500k

705017885

$59.67

2500g

Plastite Screw M4 X 10

250000805

$2.00

2500h

Circlip

293370050

$0.45

2500k

Insulating Pad

293830251

$7.81

2505

Hex. Flange Screw M6 X 20

207662046

$2.00

2510

Torx Screw M6 X 20

250000722

$1.54

2515

Torx Screw K50 X 16

250000720

$1.60
