03- Mechanic - Steering

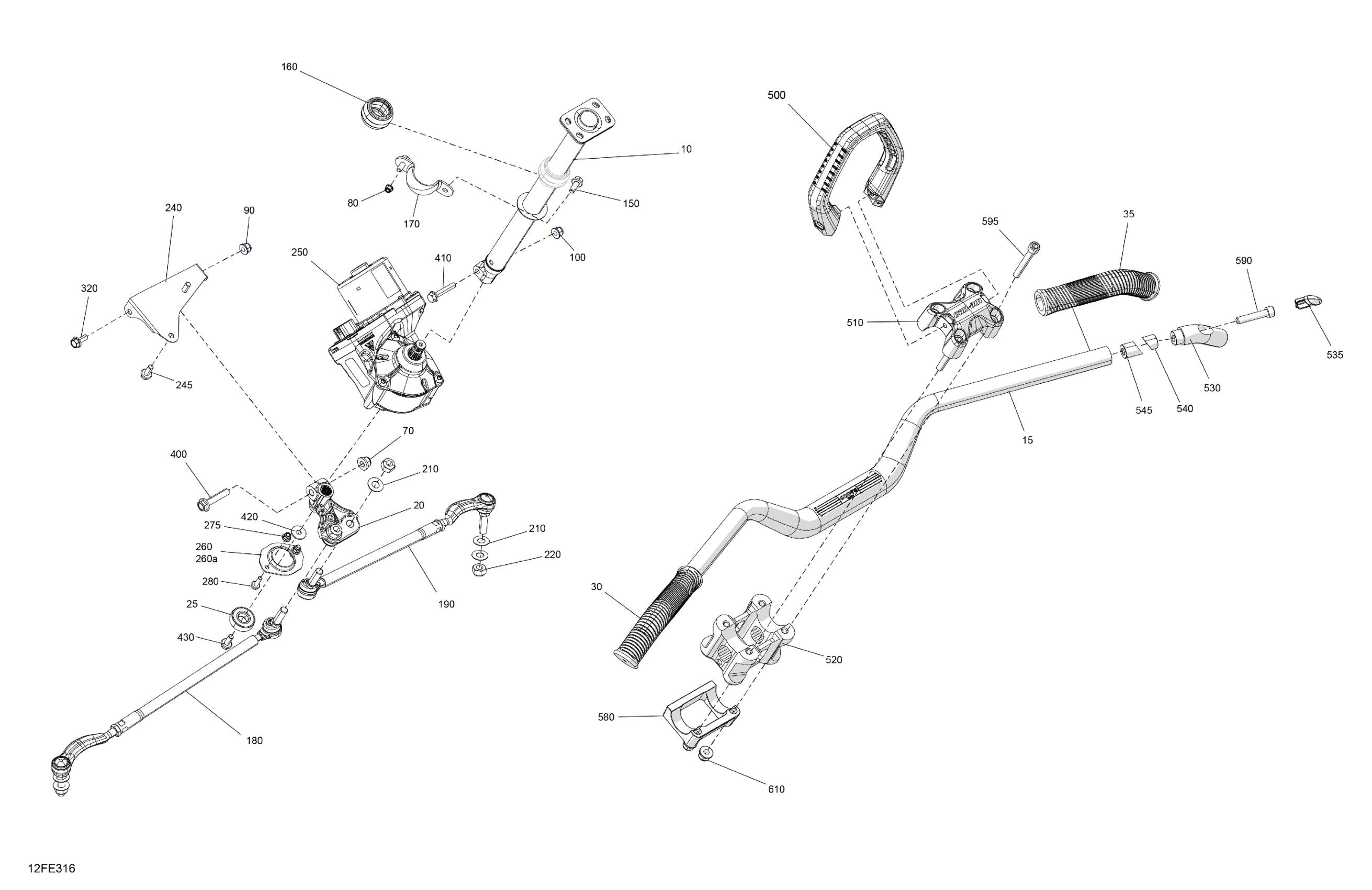

Can-Am CE - OUTLANDER - 4X4 - XMR - 1000R - 4LSC - Hyper Silver - 2025 03- Mechanic - Steering Diagram
#
10
Steering Column
709402739
Unavailable
15
Black, Anodized Handlebar
709403063
Unavailable
20
Pitman Arm
709403065
Unavailable
25
Ball Bearing
709402499
Unavailable
30
LH Handlebar Grip
709403095
Unavailable
35
RH Handlebar Grip
709403096
Unavailable
70
Hex. Flange Elastic Nut M10
233201436
Unavailable
80
Hex. Elastic Flange Nut M8
233281416
Unavailable
90
Hex. Elastic Flange Nut M8
233281416
Unavailable
100
Hex. Elastic Flange Nut M8
233281416
Unavailable
150
Hex. Flange Screw M8 X 20
207682044
Unavailable
160
Spherical Bushing
709402169
Unavailable
170
Upper Column Attachment
709400827
Unavailable
180
LH Tie Rod Ass'y
709402737
Unavailable
190
RH Tie Rod Ass'y
709402738
Unavailable
210
Hardened Washer
706200281
Unavailable
220
Hex. Elastic Hex. Nut M12
250100089
Unavailable
240
Power Steering Support
709402182
Unavailable
245
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
250
Power Steering Ass'y
709402974
Unavailable
260
Lower Bearing Support | Includes 260 to 260a
709402360
Unavailable
260a
Lower Bearing Support
709402713
Unavailable
275
Hex. Flange Elastic Nut M6
233261466
Unavailable
280
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
Unavailable
320
Hex. Flange Screw M8 X 20
207682044
Unavailable
400
Hex. Flange Screw M10 X 50, Scotch Grip
207505046
Unavailable
410
Hex. Flange Screw M8 X 45 Scotch Grip
250001133
Unavailable
420
Flat Washer 8 mm
234082410
Unavailable
430
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
500
Strap Buckle Kit
709403318
Unavailable
510
Flange
709402887
Unavailable
520
Handlebar Riser Block
709402885
Unavailable
530
Handlebar End Piece
709403051
Unavailable
535
Plug
709403179
Unavailable
540
Expansion Plug
709403128
Unavailable
545
Expansion Plug
709403130
Unavailable
580
Handlebar Support
709403012
Unavailable
590
Socket Head Screw M8 X 1.25 X 40
205084044
Unavailable
595
Socket Head Screw S.Grip M8 X 35
250001297
Unavailable
610
Hex Screw Washer Head M8 X 20
207582054
Unavailable
