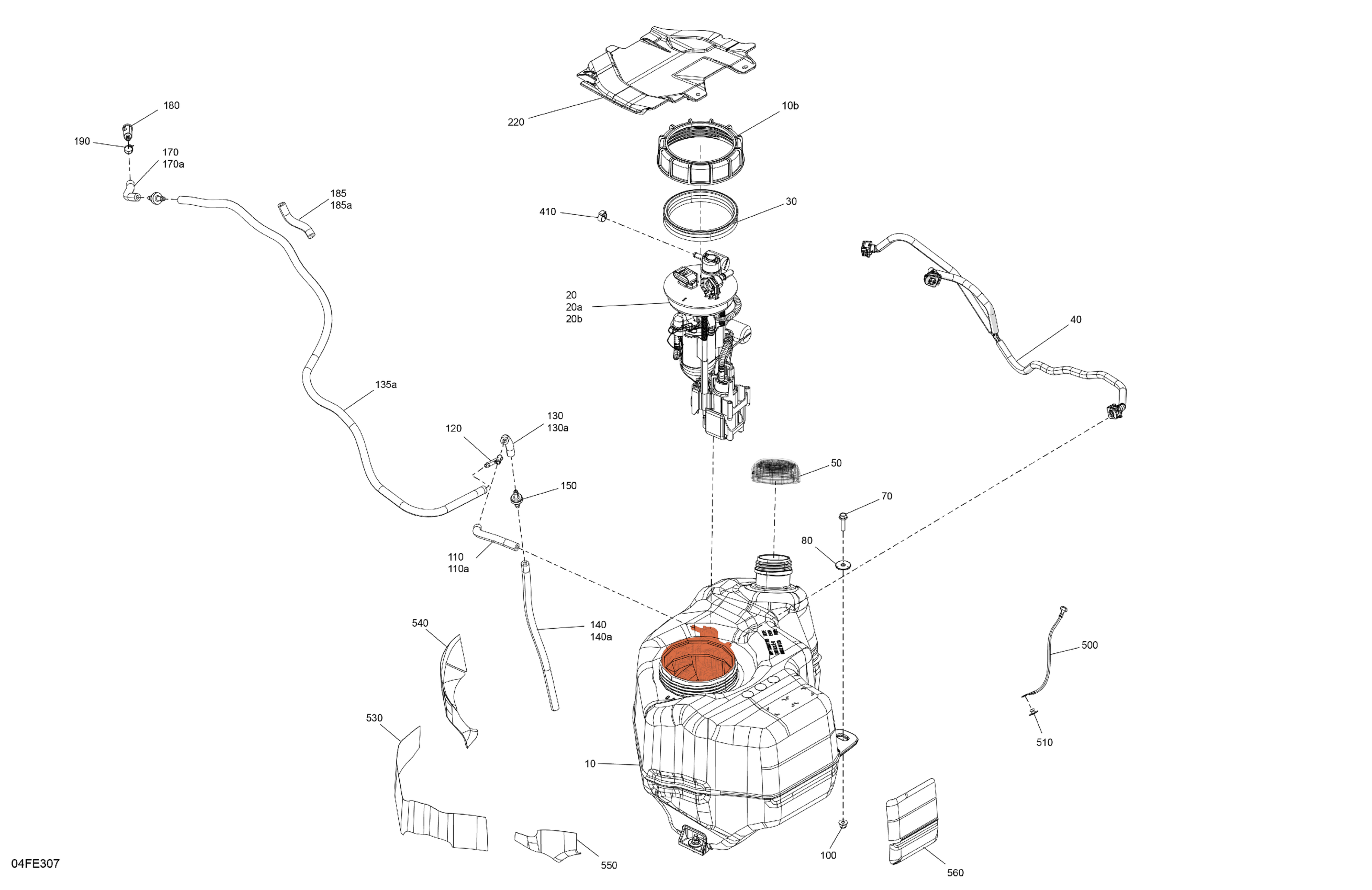

Can-Am CE - OUTLANDER - 4X4 - XMR - 1000R - 4LSC - Hyper Silver - 2025 Engine - Fuel Diagram

Description

Price

Fuel Tank | Includes 10 to 10b

709001182

$309.99

10b

Special Nut M130

250100062

$21.99

Fuel Pump | Includes 20 to 20b

709001192

$372.49

20a

Fuel Pre-Filter

709001390

$79.49

20b

Fuel Level Sensor This part replaces 709001391.

709001695

Unavailable

Pump Gasket

293250514

$19.49

Fuel Tank Hose

709001369

$39.49

Fuel Cap

709000868

$32.99

Hex. Flange Screw M6 X 25

207662554

$1.48

Shouldered Bushing

709001343

$2.69

100

Hex. Flange Elastic Nut M6

233261466

$2.00

110

Hose 6.35MM ID

219704534

$25.99

110a

Not Available As Spare Parts

XXX

Unavailable

120

Y-Fitting

293710059

$9.69

130

Hose 6.35MM ID

219704534

$25.99

130a

Not Available As Spare Parts

XXX

Unavailable

135a

Hose 6.35MM ID

219704534

$25.99

140

Hose 6.35MM ID

219704534

$25.99

140a

Not Available As Spare Parts

XXX

Unavailable

150

Check Valve

275500398

$10.99

170

Hose 6.35MM ID

219704534

$25.99

170a

Not Available As Spare Parts

XXX

Unavailable

180

Filter

709001120

$8.05

185

Hose 6.35MM ID

219704534

$25.99

185a

Not Available As Spare Parts

XXX

Unavailable

190

Spring Clamp

414415200

$0.88

220

Panel

709001104

$18.49

410

Oetiker Clamp

293650046

$2.89

500

Ground Wire

278003272

$20.99

510

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

530

Heat Shield

709001417

$6.99

540

Heat Shield

709001418

$6.99

550

Heat Shield

709001419

$6.99

560

Heat Shield

709001563

$6.99
