- CE - OUTLANDER - 4X4 - XMR - 1000R - 4LSC - Hyper Silver - 2025
02- Engine - Cooling

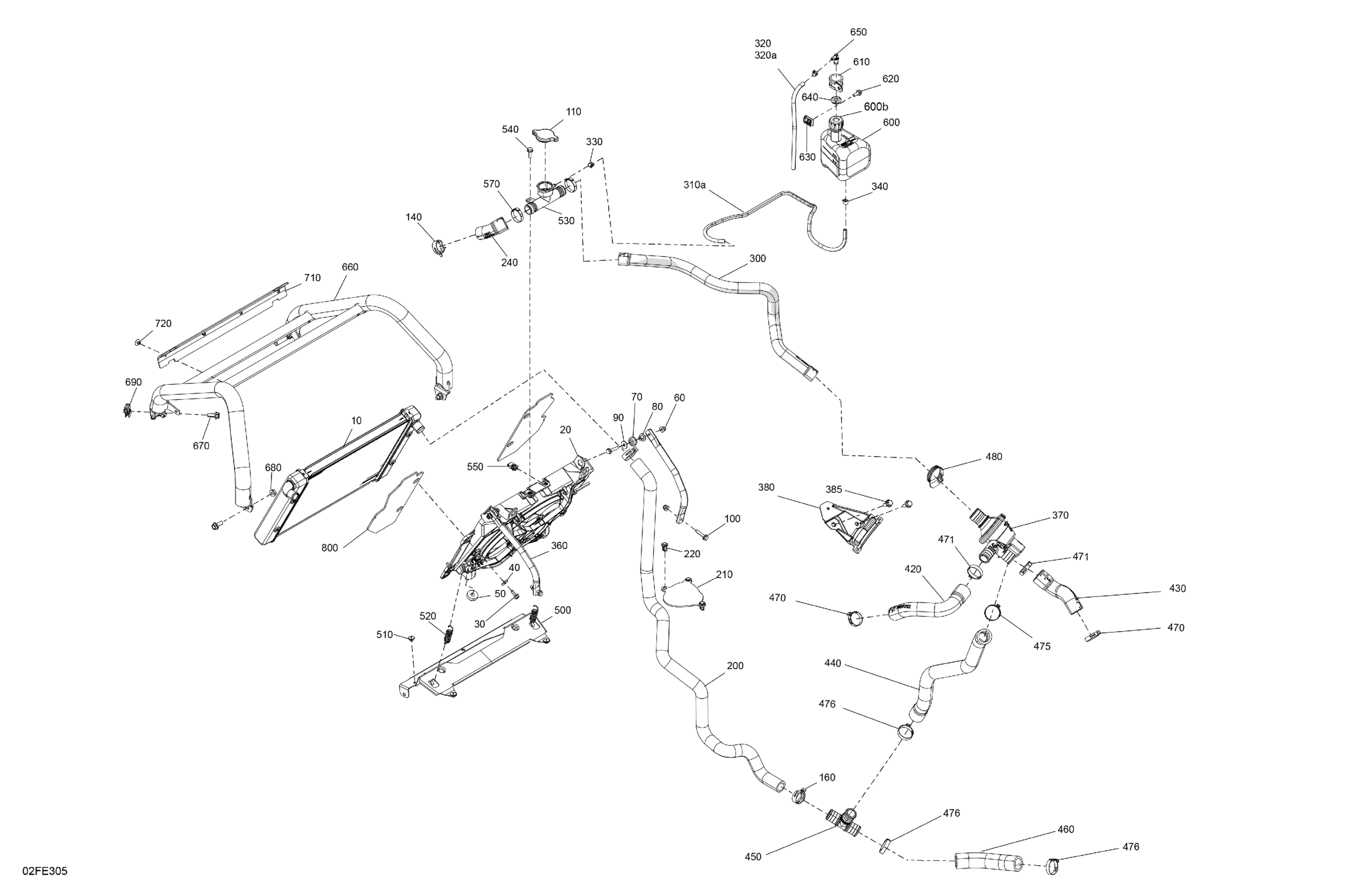

Can-Am CE - OUTLANDER - 4X4 - XMR - 1000R - 4LSC - Hyper Silver - 2025 02- Engine - Cooling Diagram
#
10
Radiator
709201126
Unavailable
20
Cooling Fan
709201622
Unavailable
30
Hex Flange Screw M6 X 16
250000906
Unavailable
40
Flat Washer 6 mm
234062410
Unavailable
50
Grommet
709200948
Unavailable
60
Hex. Flange Elastic Nut M6
233261466
Unavailable
70
Overmolded Grommet
293720130
Unavailable
80
Bushing
709001288
Unavailable
90
Flat Washer
250200082
Unavailable
100
Hex. Flange Screw M6 X 30
207663046
Unavailable
110
Radiator Pressure Cap
709200207
Unavailable
140
Norma Spring Clamp
293650108
Unavailable
160
Norma Spring Clamp
293650108
Unavailable
200
Radiator Hose
709201130
Unavailable
210
Plug
709201461
Unavailable
220
Tuflok Plastic Rivet
293150230
Unavailable
240
Coolant Hose
709201593
Unavailable
300
Hose
709201595
Unavailable
310a
Not Available As Spare Parts
XXX
Unavailable
320
Polyurethane Hose 4000MM Long | Includes 250 to 250a
219704389
Unavailable
320a
Not Available As Spare Parts
XXX
Unavailable
330
Spring Clamp
414554800
Unavailable
340
Spring Clamp
414420700
Unavailable
360
Tube
709201205
Unavailable
370
Housing
709201279
Unavailable
380
Thermostat Support
709201282
Unavailable
385
Hex. Flange Screw M6 X 16, Scotch Grip
207561646
Unavailable
420
Thermostat Hose
709201262
Unavailable
430
Thermostat Hose
709201263
Unavailable
440
Thermostat Hose
709201264
Unavailable
450
T-Fitting
709201420
Unavailable
460
Water Pump Hose
709201265
Unavailable
470
Crimp Clamp
293650099
Unavailable
471
Crimp Clamp
293650331
Unavailable
475
Crimp Clamp
293650331
Unavailable
476
Crimp Clamp
293650331
Unavailable
480
Norma Gear Clamp
293650098
Unavailable
500
Support
709201380
Unavailable
510
Black, Pop Rivet 3/16 X ,425
293150291
Unavailable
520
Brake Pedal Spring
705600792
Unavailable
530
Filler Neck
709200422
Unavailable
540
Hex. Flange Screw M6 X 20
207662034
Unavailable
550
Panel Nut M6 X 1.0
250100198
Unavailable
570
Crimp Clamp
293650332
Unavailable
600
Coolant Tank Ass'y | Includes 290 to 290b
703501190
Unavailable
600b
Cap
709200586
Unavailable
610
Hose Anchor
709200036
Unavailable
620
Hex. Flange Screw M6 X 16
207661646
Unavailable
630
Panel Nut M6 X 1.0
250100208
Unavailable
640
Grommet
705003264
Unavailable
650
Male Connector
414580700
Unavailable
660
Legion Red, Bumper Reinforcement
705212637
Unavailable
670
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
680
Hex. Flange Nut M8
233181414
Unavailable
690
Panel Nut M8 X 1.25
250100236
Unavailable
710
Gasket
709201191
Unavailable
720
Black, Pop Rivet 3/16 X ,425
293150291
Unavailable
800
Gasket
709201192
Unavailable
