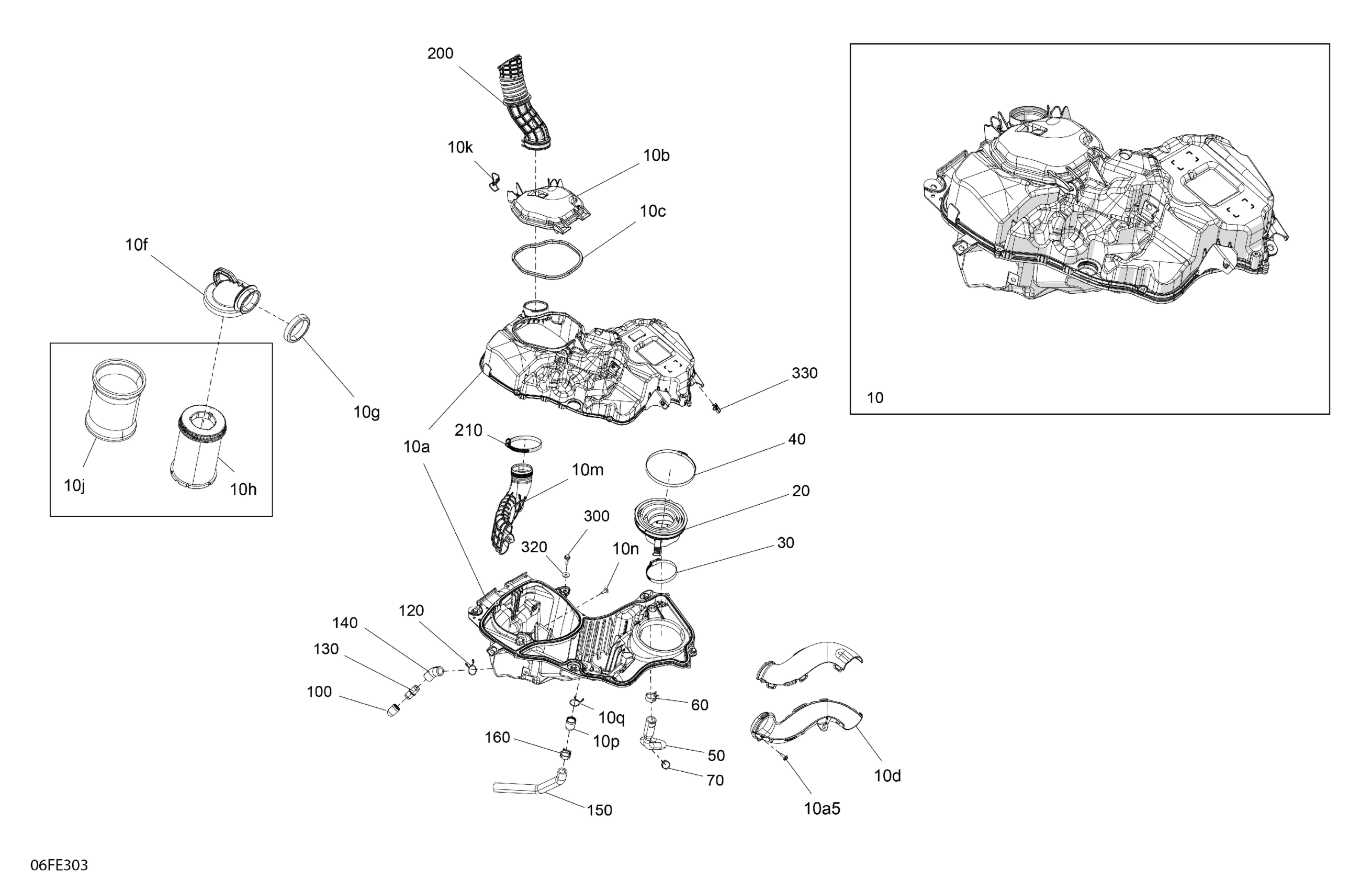

Can-Am CE - OUTLANDER - 4X4 - XMR - 1000R - 4LSC - Hyper Silver - 2025 Engine - Air Intake Diagram

Description

Price

Not Available As Spare Parts - Intake Silencer Ass'y

707801186

Unavailable

10a

Intake Silencer | Includes 10a to 10a5

707801083

$166.39

10a5

Screw PT Type K-50 X 16

250000959

$2.00

10b

Access Cover

707801087

Unavailable

10c

Neoprene Seal

293250630

$3.22

10d

Gasket

293250698

$17.88

10f

Rigid Adapter

707801092

$3.24

10h

Air Filter With Prefilter | Includes 10h - 10j

703501249

$46.24

10j

Prefilter

707800887

$26.84

10g

Gasket

707801088

$17.88

10k

Latch

293730117

$8.48

10m

Secondary Tube

707801086

$20.12

10n

Screw PT Type K-50 X 16

250000959

$2.00

10p

Cap

293000135

$6.99

10q

Spring Clamp

707801043

$12.30

Intake Boot

707801094

$17.88

Norma Clamp

293650091

$10.54

Gear Clamp (Norma)

514052861

$7.57

Crankcase Hose

707801089

$22.36

Norma Spring Clamp

293650213

$3.01

Oetiker Clamp | Europe

293650030

$4.96

100

Cap

293000135

$6.99

120

Spring Clamp

707801043

$12.30

130

Straight Fitting

270001073

$10.33

140

Secondary Drain Hose

707801099

$17.88

150

Primary Drain Hose

707801100

$17.88

160

Norma Spring Clamp

293650109

$3.88

200

Intake Duct

707801091

$34.30

210

Norma Gear Clamp

293650118

$11.18

300

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

320

Flat Washer 6 mm

234062410

$0.73

330

Panel Nut M6 X 1.0

250100198

$1.99
