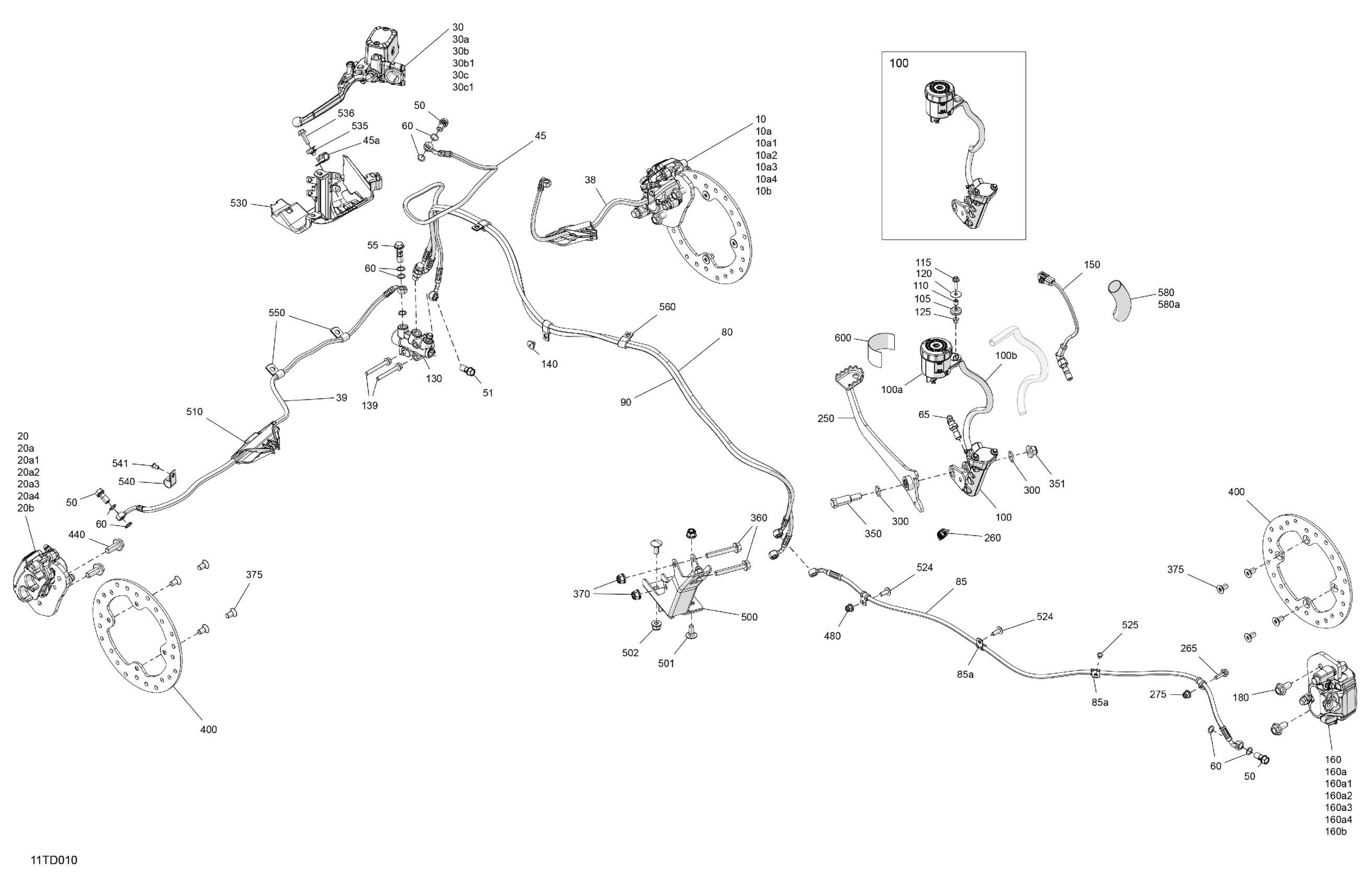

Can-Am CE - Outlander 1000R EFI 4X4 - 5KRD - X MR Package - Hyper Silver, 2024 Mechanic - Brake System Diagram

#

Description
Price

10

RH Front Caliper Ass'y | Model XMR

703500967

$299.99

10a

RH Front Caliper Ass'y | Includes 1 to 5

705600861

$270.49

10a1

RH Organic Brake Pad Kit

705601014

$42.49

10a2

Pin Set

705601016

$9.26

10a3

Bleeding Screw

705601017

$6.35

10a4

Retaining Spring

705601018

$7.55

10b

RH Metallic Brake Pad Kit | Model XMR

715900249

$51.99

20

LH Front Caliper Ass'y | Model XMR

703500968

$299.99

20a

LH Front Caliper Ass'y | Includes 6 to 10

705600862

$270.49

20a1

Pin Set

705601016

$9.26

20a2

Bleeding Screw

705601017

$6.35

20a3

Retaining Spring

705601018

$7.55

20a4

LH Organic Brake Pad Kit

705601015

$42.49

20b

LH Metallic Brake Pad Kit | Model XMR

715900248

$51.99

30

LH Front Master Cylinder | Includes 11 to 14

705601430

$259.99

30a

Lever Set

705601013

$63.99

30b

Clamp And Screw Kit

507032477

$23.99

30b1

Hex. Flange Screw M6 X 25

250000447

$2.19

30c

Cap Set

219800096

$21.99

30c1

Screw M4 X 20

415129356

$2.29

38

RH Brake Line | Package XMR

705601690

$45.49

39

LH Brake Line | Package XMR

705601692

$45.49

45

Brake Handle Line | Includes 17 to 18

705600967

$48.49

45a

Clamp

293650256

$5.59

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$1.49

51

Banjo Bolt (M10 x 1.25 thread)

705600609

$1.49

55

Double Banjo Bolt

705601723

$7.90

60

Washer

414920600

$1.90

60

Washer

414920600

$1.90

65

Bleeding Screw

705601051

$12.16

80

Outlet Hose, Master Cylinder

705601518

$69.99

85

RH Rear Hose

705601324

$49.99

85a

Clamp

293650256

$5.59

90

Inlet Hose, Master Cylinder

705600973

$63.49

100

Rear Master Cylinder Ass'y | Includes 28 to 30

705601776

$229.99

100a

Oil Tank

705601020

$39.99

100b

Oil Housing Hose

705601019

$15.87

105

Grommet

414036300

$2.89

110

Bushing

293900112

$10.06

115

Hex.Flange Screw M5 X 20

207652044

$1.99

120

Flat Washer

224060201

$1.49

125

Flange Elastic Nut M5

233251434

$2.09

130

Splitter

705600994

$153.49

139

Hex. Flange Screw M6 X 50 | Model Europe, T3

210265040

$2.19

140

Pop Rivet 3/16"

390406500

$1.49

150

Brake Switch

705601251

$51.99

160

RH Rear Caliper Ass'y | Includes 175 to 175d, Model XMR

703500969

$299.99

160a

RH Rear Brake Caliper | Includes 41 to 45

705602190

$229.99

160a1

Pin Set

705601016

$9.26

160a2

Bleeding Screw

705601017

$6.35

160a3

Retaining Spring

705601018

$7.55

160a4

RH Organic Brake Pad Kit

705601014

$42.49

160b

RH Metallic Brake Pad Kit | Model XMR

715900249

$51.99

180

Hex. Flange Screw M10 X 20

207502046

$2.19

250

Deep Black, Brake Pedal

705602163

$154.99

260

Brake Pedal Spring

705600792

$9.10

265

Hex. Flange Screw M6 X 20

207662044

$2.09

275

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

300

O-Ring

293300144

$3.82

350

Shoulder Screw M10

250000513

$6.89

351

Hex. Flange Elastic Nut M10

233201436

$2.19

360

Hex. Flange Screw M8 X 55

207685544

$5.49

370

Hex. Flange Elastic Nut M8

233281414

$1.49

375

Torx Screw M8 X 16, Scotch Grip

235381646

$2.59

400

Disc Brake

705601997

$89.99

440

Hex. Flange Screw M10 X 25

207502546

$2.19

480

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

500

Brake Pedal Bracket

705202000

$38.99

501

Carriage Bolt, M8 X 20

207782044

$1.99

502

Hex. Flange Elastic Nut M8

233281414

$1.49

510

Front Hose Guard

705602016

$4.55

524

Torx Screw M6 X 16

250000755

$1.49

525

Pop Rivet 3/16"

390402400

$1.49

530

Front Hose Bracket

705600983

$13.71

535

Panel Nut M6 X 1.0

250100198

$2.19

536

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.19

540

Open Clamp

518321570

$7.89

541

Pop Rivet 3/16"

390402300

$1.49

550

Clamp

293650219

$1.49

560

Clamp

293650220

$1.49

580

Tubing 25 MM 1000MM Long

219704402

$16.49

580a

Tubing 25 MM 1000MM Long

219704402

$16.49

600

Heat Shield

705601311

$4.29
