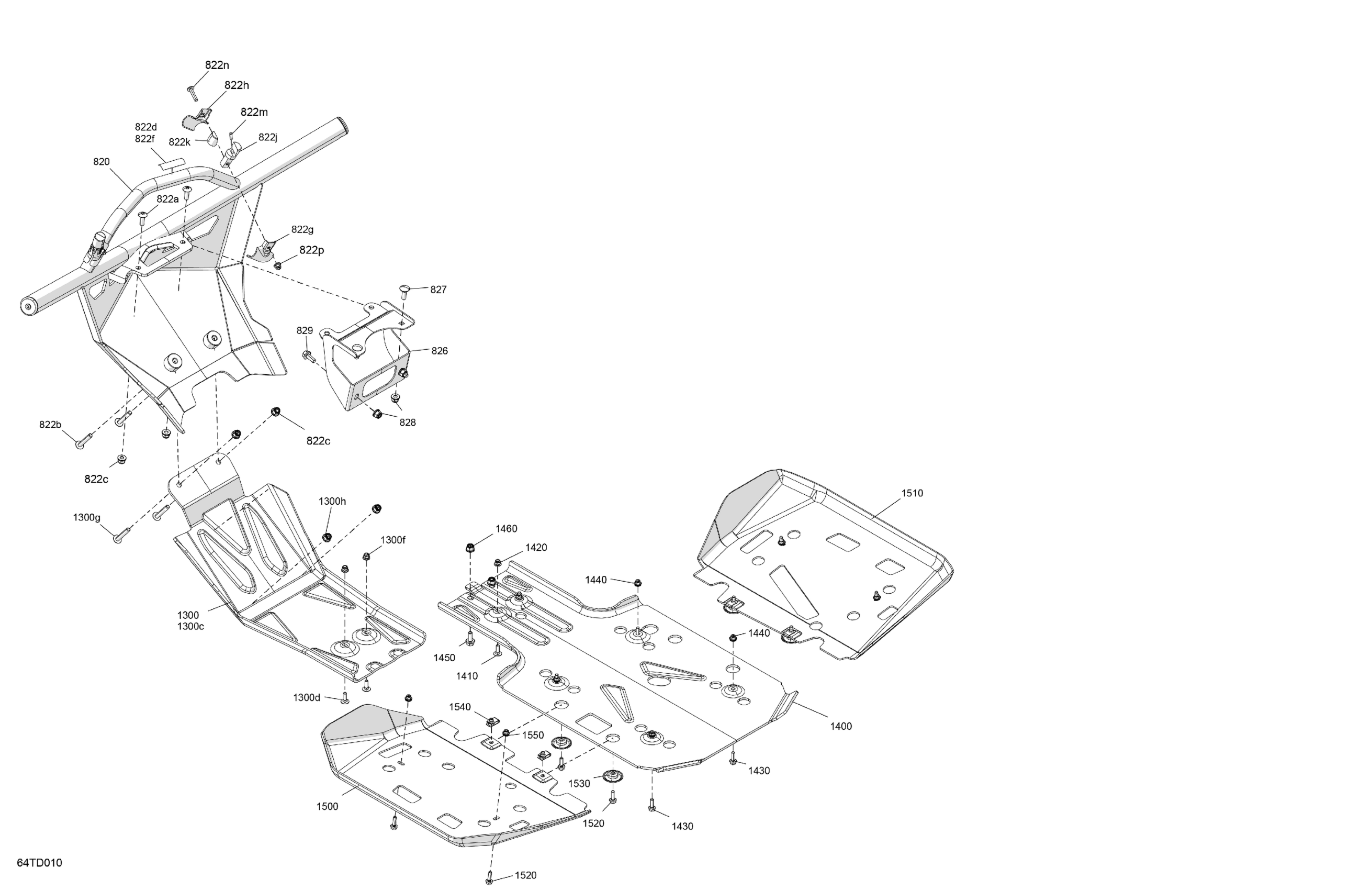

Can-Am CE - Outlander 1000R EFI 4X4 - 4MRB - X XC Package - Chalk, 2024 Body - Skid Plate and Bumper Diagram

Description

Price

820

Front Bumper Ass'y | Model XXC

715007687

$779.97

822a

Torx Truss M8 X 25

250000874

$1.74

822b

Torx Truss Screw M8 X 50

250000761

$6.18

822c

Hex. Flange Elastic Nut M8

233281414

$1.14

822d

Warning Decal Bumper

704906938

Unavailable

822f

Bumper Warning Label

704909081

Unavailable

822g

Clamp_Mounting Lh B-282

705018280

$41.51

822h

Clamp_Mounting Rh B-282

705018287

$41.51

822j

End Piece

705016578

$27.66

822k

Sliding Block

705016579

$19.99

822m

Socket Set Screw M5 X 20 | Europe

206252044

$1.25

822n

Stainless, Torx Screw M6 X 30

250000842

$1.74

822p

Hex. Flange Elastic Nut M6

233261494

$1.26

826

Bumper Support

705012722

$73.82

827

Carriage Bolt, M8 X 25 | XXC

207782544

$1.31

828

Hex. Flange Elastic Nut M8

233281414

$1.14

829

Hex. Flange Screw M8 X 25

207682544

$0.90

1300

Front Skid Plate | Package Hunter

715000926

$104.99

1300b

Decal "Can-Am" | Not Shown

704904566

$9.25

1300c

Front Skid Plate | Package Hunter

715000926

$104.99

1300d

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.26

1300f

Flange Elastic Nut M6

233261434

$3.61

1300g

Hex Torx Truss M8 X30

250000745

$3.05

1300h

Hex. Flange Elastic Nut M8

233281414

$1.14

1400

Central Skid Plate | Package-XXC

705204031

$166.12

1410

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.26

1420

Flange Elastic Nut M6

233261434

$3.61

1430

Hex. Flange Screw M6 X 20

207662054

$0.83

1440

Insert Half Hex Body M6 x 1.0

250100199

$2.54

1450

Hex. Flange Screw M8 X 25

207682544

$0.90

1460

Hex. Flange Elastic Nut M8

233281414

$1.14

1500

LH Skid Plate | Package Hunter

705010659

$115.35

1510

RH Skid Plate | Package Hunter

705010660

$115.35

1520

Hex. Flange Screw M6 X 20

207662054

$0.83

1530

Cup | Package Hunter

705007171

$6.18

1540

Panel Nut M6 X 1.0

250100198

$1.73

1550

Insert Half Hex Body M6 x 1.0

250100199

$2.54
