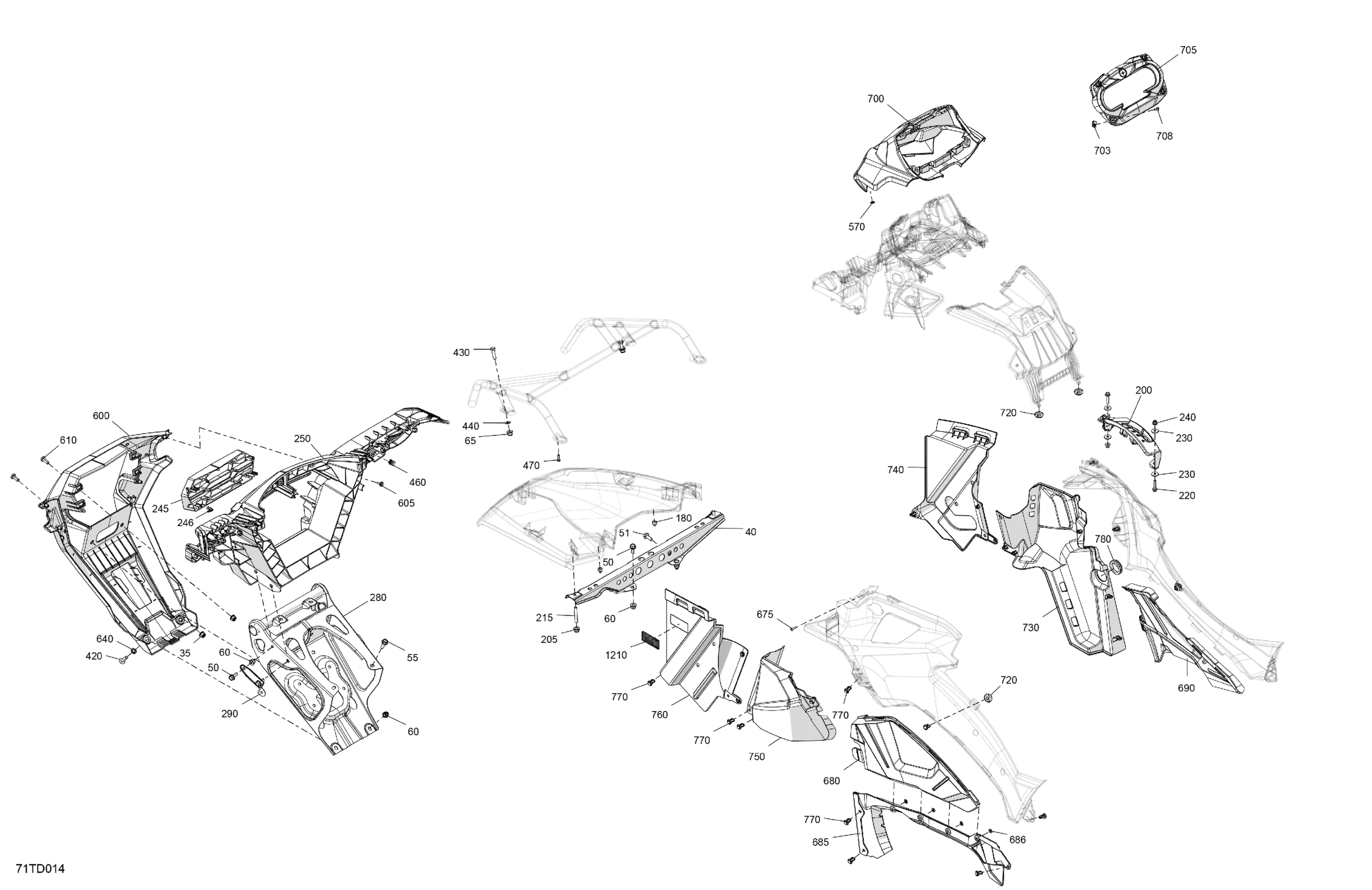

Can-Am CE - Outlander 1000R EFI 4X4 - 4MRB - X XC Package - Chalk, 2024 Body - Front Section Diagram

#

Description
Price

35

Hex. Flange Elastic Nut M8

233281414

$1.14

40

Cargo Rack Center Support

705006812

$59.97

50

Hex. Flange Screw M8 X 20

207682044

$0.92

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

55

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

60

Hex. Flange Elastic Nut M8

233281414

$1.14

65

Elastic Flange Nut M8

233281464

$0.83

180

Rubber Bumper

293830005

$5.33

200

Shift Lever Grille Kit

715008677

$27.66

205

Hex. Flange Elastic Nut M8

233281414

$1.14

215

Socket Set Screw M8 x 50

206285044

$3.81

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

230

Flat Washer

224061201

$1.11

240

Flange Elastic Nut M6

233261434

$3.61

245

Air Inlet Grille

705016613

$24.58

246

Clip

517306478

$1.37

250

Fascia

705016526

$111.51

280

Front Bumper Support

705016893

$324.58

290

Lower Fender Support

705004565

$6.45

420

Torx Screw M8 X 30

250000886

$1.74

430

Hex. Cap Screw M8 X 30

207183054

$3.61

440

Stainless Steel Flat Washer 8 mm

234081670

$0.56

460

Edge Clip

517302785

$0.70

470

Hex. Flange Screw, Scotch Grip

207551634

$1.66

570

Push Nut

732610072

$1.72

600

Front Skid Plate

705016527

$50.74

605

Screw M4 X 16

250000725

$2.87

610

Hex. Screw M8 X 20

236282054

$1.45

640

Ring

705004497

$3.98

675

Phillips Screw K40 X 16

250000723

$0.81

680

Deflector Body Panel Kit

715007294

$51.51

685

Deflector Body Panel

705014061

$39.97

686

Push Nut

732610072

$1.72

690

Engine Cover

705003444

$20.74

700

Gauge Support

705013984

$18.43

703

Extruded Panel Nut M4 X 0.7

250100143

$6.77

705

Front Gauge Trim

705013985

$20.74

708

Torx Head Screw M4 X 16

250000797

$1.63

720

Grommet

705003264

$3.43

730

RH Wheel Arch Protector

705013925

$16.89

740

RH Front Wheel Arch Protector

705017002

$15.22

750

LH Wheel Arch Protector

705013924

$16.89

760

LH Front Wheel Arch Protector

705017001

$15.22

770

Tuflok Plastic Rivet

293150230

$1.21

780

Rubber Cover

293250242

$5.38

1210

Amber, Reflector

520002680

$19.20
