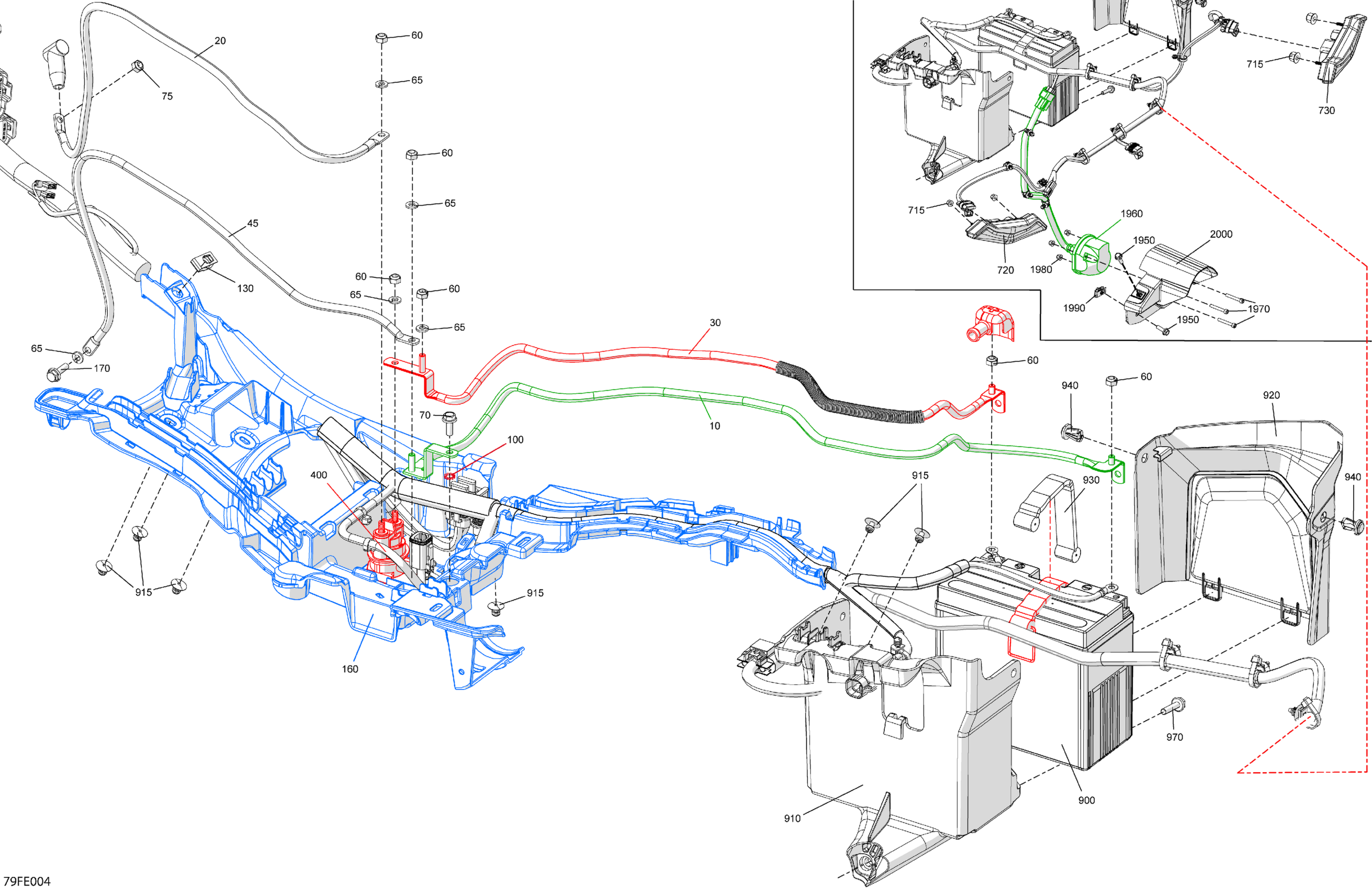

Can-Am CE - OUTL-PRO-MAX - 4X4 - XU - HD7 - 2BSB - Compass Green - 2025 Electric - Rear Section Diagram

Description

Price

Screw | Not Shown

710009084

$1.52

Washer | Not Shown

710009082

$1.02

Negative Cable

710009369

$36.89

Positive Cable

710010016

$46.12

Positive Cable

710009370

$46.12

Negative Cable

710007321

$36.89

Elastic Stop Nut M6

232561434

$1.55

Lock Washer Helical M6

234161601

$0.92

Hex. Flange Screw M6 X 16

207661646

$1.00

Elastic Stop Nut M6

232561434

$1.55

100

External Serrated Lock Washer 6 mm

234461608

$0.92

130

Panel Nut M6 X 1.0

250100198

$1.73

160

Starter Relay Support

710009950

$39.97

170

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

400

Starter Relay

278003012

$35.07

715

Flange Elastic Nut M5

233251434

$1.66

720

LH Rear Tail Light

710008427

$87.66

730

RH Rear Tail Light

710008428

$87.66

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

910

Battery Support

710008195

$46.12

915

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

920

Battery Cover

710008267

$15.35

930

Holding Strap

293850112

$14.27

940

Tuflok Plastic Rivet

293150230

$1.21

970

Hex. Flange Screw M6 X 25

207562544

$1.39

1950

Hex. Flange Screw M6 X 20

207662046

$1.74

1960

Trailer Harness

710005846

$212.28

1970

Socket Head Screw M5 X 35

205053588

$1.56

1980

Flange Elastic Nut M5

233251434

$1.66

1990

Panel Nut M6 X 1.0

250100198

$1.73

2000

Trailer Hitch Support

710009909

$6.99
