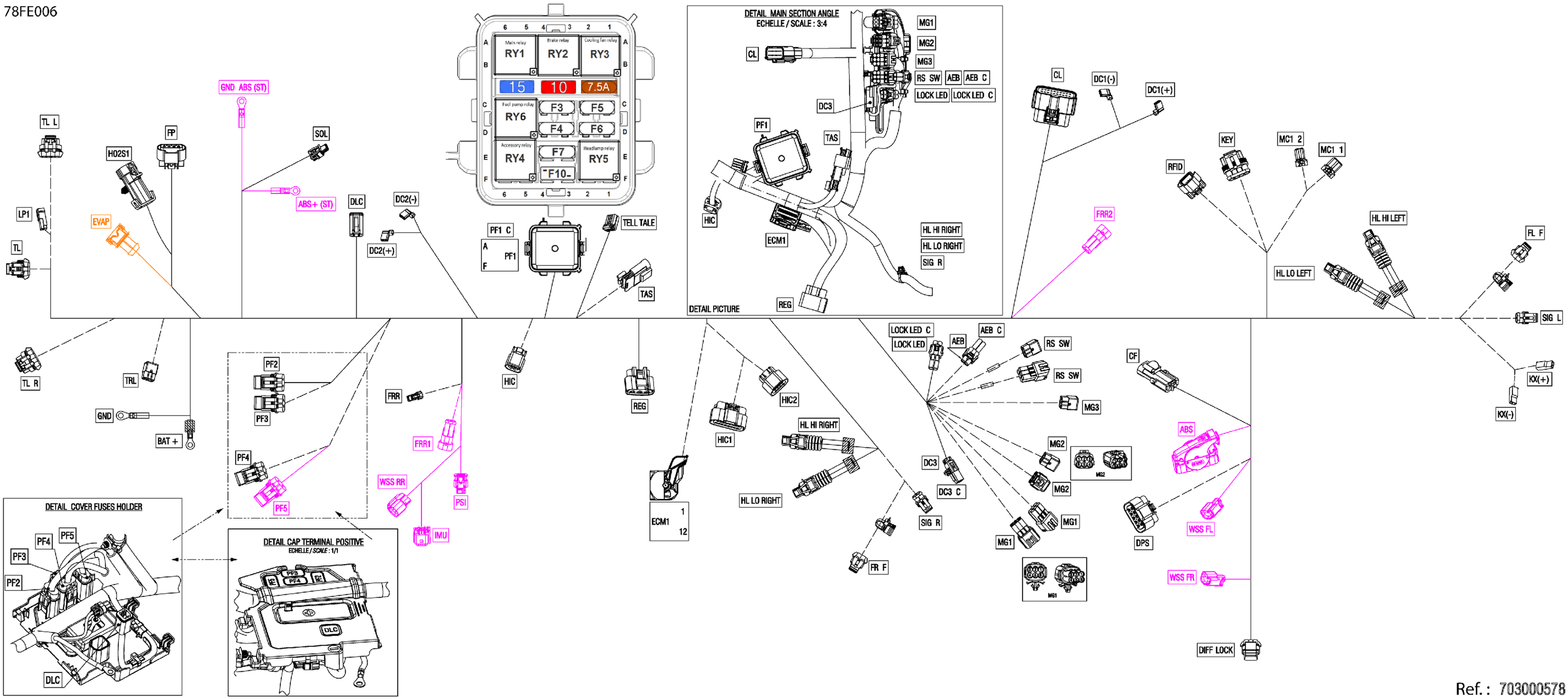

Can-Am CE - OUTL-PRO-MAX - 4X4 - XU - HD7 - 2BSB - Compass Green - 2025 Electric - Main Harness - 710010290 Diagram

#

Description
Price

200

Main Wiring Harness

710010290

$913.82

AEB

Sumitomo Female Connector 2 Cavities

710008152

$9.29

AEB

Wire Seal

710000402

$4.42

AEB

Female Terminal

409012100

$3.73

AEB C

Connector Sumitomo Male 2 Cavities

710008151

$7.60

AEB C

Cap

710000080

$6.48

BAT (+)

Open Barrel Terminal

278001392

$4.12

CF

Clip

710001038

$5.11

CF

Female Housing, 2 Circuits

278000217

$7.59

CF

Wire Seal

278000218

$3.48

CF

Male Terminal

409004300

$5.46

CL

Female Housing 20 Circuits

278002858

$20.12

CL

Sealing Cap

278002860

$1.42

CL

Female Terminal

515178018

$0.78

D2

Diode

409012700

$10.83

DC1

Female Terminal

409010300

$4.12

DC2

Female Terminal

409010300

$4.12

DC3

Female Housing, 2 Circuits

515175658

$15.35

DC3

Female Terminal

515175231

$4.12

DC3 C

Male Housing, 2 Circuits

710000667

$7.48

DIFF LOCK

Connector Delphi Female 6 Cavities

710006038

$78.43

DIFF LOCK

Lock Connector

710006039

$4.22

DIFF LOCK

Seal

278001482

$2.55

DIFF LOCK

Female Terminal

278001481

$3.02

DLC

Female Housing 6 Circuits

710002706

$16.22

DLC

Lock

710002705

$3.61

DLC

Female Terminal

710005438

$4.00

DLC

Female Terminal

710005439

$4.28

DPS

Female Housing

710004989

$7.22

DPS

Lock

710001222

$1.68

DPS

Lock | PACKARD 15430900

710005098

$1.54

DPS

Plug

710002075

$2.47

DPS

Wire Seal

278002186

$4.51

DPS

Seal

710003153

$0.94

DPS

Female Terminal

278002187

$5.04

DPS

Terminal

710001873

$2.02

ECM1

Cover

515178601

$14.27

ECM1

Housing 56 Circuits

515178595

$24.02

ECM1

Plate

515178604

$3.63

ECM1

Plug

515178599

$2.60

ECM1

Plug

515178600

$2.60

ECM1

Plate

515178603

$3.63

ECM1

Terminal

515178596

$3.30

ECM1

Terminal

515178598

$3.21

ECM1

Terminal

515178597

$12.65

FL F

Housing

710002177

$3.61

FL F

Lock

710002043

$0.85

FL F

Seal

278001482

$2.55

FL F

Female Terminal

710001134

$6.03

FP

Male Housing, 4 Circuits

278002185

$5.86

FP

Lock

710001222

$1.68

FP

Wire Seal

278002186

$4.51

FP

Seal

710003153

$0.94

FP

Female Terminal

278002187

$5.04

FP

Terminal

710001873

$2.02

FR F

Housing

710002177

$3.61

FR F

Lock

710002043

$0.85

FR F

Seal

278001482

$2.55

FR F

Female Terminal

710001134

$6.03

FRR

Female Housing, 2 Circuits

515175658

$15.35

FRR

Female Terminal

710003896

$1.75

GND

Open Barrel Terminal

278001392

$4.12

HIC

Housing

515177205

$19.20

HIC

Seal Wire

710001332

$2.72

HIC

Terminal

710001228

$2.72

HL HI LEFT

Housing

710007660

$7.74

HL HI LEFT

Lock

710001152

$3.48

HL HI LEFT

Wire Seal

710001163

$5.10

HL HI LEFT

Female Terminal

710001164

$5.92

HL HI RIGHT

Housing

710007660

$7.74

HL HI RIGHT

Lock

710001152

$3.48

HL HI RIGHT

Wire Seal

710001163

$5.10

HL HI RIGHT

Female Terminal

710001164

$5.92

HL LO LEFT

Female Housing, 2 Circuits

515177192

$6.32

HL LO LEFT

Lock

710001152

$3.48

HL LO LEFT

Wire Seal

710001163

$5.10

HL LO LEFT

Female Terminal

710001164

$5.92

HL LO RIGHT

Female Housing, 2 Circuits

515177192

$6.32

HL LO RIGHT

Lock

710001152

$3.48

HL LO RIGHT

Wire Seal

710001163

$5.10

HL LO RIGHT

Female Terminal

710001164

$5.92

HO2S1

Housing

710002466

$2.98

HO2S1

Lock

515178661

$4.28

HO2S1

Seal

278001482

$2.55

HO2S1

Gold Terminal

710002597

$2.98

HO2S1

Terminal

710000736

$5.35

KX

Female Terminal Housing, 1 Circuit

409010400

$7.48

KX

Female Terminal

409010100

$5.46

LOCK LED

Wire Seal

710000402

$4.42

LOCK LED

Male Terminal

409011300

$5.78

LOCK LED

Male Terminal

409011300

$5.78

LOCK LED C

Cap

710000080

$6.48

LP1

Male Terminal Housing, 2 Circuits

515175654

$7.48

LP1

Male Terminal

515175232

$1.49

MC1 1

Female Housing

710004047

$13.83

MC1 1

Terminal

710002315

$4.60

MC1 2

Female Housing

710004048

$14.75

MC1 2

Terminal

710002315

$4.60

MG1

Connector

710007097

$19.97

MG1

Wire Seal

710000402

$4.42

MG1

Male Terminal

409011300

$5.78

MG2

Connector

710007098

$10.98

MG2

Cap

710000080

$6.48

MG2

Seal

409012300

$4.38

MG2

Wire Seal

710000402

$4.42

MG2

Female Terminal

409012100

$3.73

MG3

Female Housing 6 Circuits

710001445

$7.60

MG3

Wire Seal

710000402

$4.42

MG3

Female Terminal

409012100

$3.73

PF1

Fuse Base Ass'y

278003448

$26.62

PF1

Wire Seal

278001065

$6.03

PF1

Wire Seal

278000218

$3.48

PF1

Female Terminal

710000918

$5.10

PF1

Female Terminal

278002578

$0.86

PF1 C

Fuse Cover

278003553

$3.79

PF1 C

Fuses Decal

710006782

Unavailable

PF1 C SP1

Little Fuse, 7.5 Amperes

710000743

$8.02

PF1 C SP2

Little Fuse, 10 Amperes

710000744

$7.24

PF1 C SP3

Little Fuse, 15 Ampere

710000745

$6.77

PF1 F1

Little Fuse, 15 Ampere

710000745

$6.77

PF1 F10

Fuse 15 AMPS

710008009

$18.43

PF1 F2

Little Fuse, 15 Ampere

710000745

$6.77

PF1 F3

Little Fuse, 7.5 Amperes

710000743

$8.02

PF1 F4

Little Fuse, 10 Amperes

710000744

$7.24

PF1 F5

Little Fuse, 10 Amperes

710000744

$7.24

PF1 F6

Little Fuse, 10 Amperes

710000744

$7.24

PF1 F7

Little Fuse, 15 Ampere

710000745

$6.77

PF1 RY1

Relay

715900824

$16.22

PF1 RY2

Relay

715900824

$16.22

PF1 RY3

Relay

715900824

$16.22

PF1 RY4

Relay

715900824

$16.22

PF1 RY5

Relay

715900824

$16.22

PF2

Fuse

710001613

$7.24

PF2

Fuse Holder

278001325

$8.57

PF2

Female Terminal

710000357

$6.03

PF3

Fuse

710001613

$7.24

PF3

Fuse Holder

278001325

$8.57

PF3

Female Terminal

710000357

$6.03

PF3

Female Terminal

710000113

$6.03

R1

Resistor

710005179

$2.75

R2

Resistor

710006155

$2.75

R3

Resistor

710007300

$2.75

REG

Female Housing, 3 Circuits

710000879

$21.42

REG

Cap

710000882

$9.19

REG

Seal

710001932

$3.15

REG

Terminal

710001934

$4.51

RFID

Female Delphi Connector 5 Cavities

710007151

$13.62

RFID

Lock

710007243

$4.60

RFID

Wire Seal

710001163

$5.10

RFID

Female Terminal

710001164

$5.92

RS SW

Male Terminal Housing, 6 Circuits

710000835

$16.89

RS SW

Wire Seal

710000402

$4.42

RS SW

Male Terminal

409011300

$5.78

SIG L

Female Housing, 2 Circuits

409209500

$13.48

SIG L

Wire Seal

515176621

$7.00

SIG L

Female Terminal

710001340

$5.11

SIG R

Female Housing, 2 Circuits

409209500

$13.48

SIG R

Wire Seal

515176621

$7.00

SIG R

Female Terminal

710001340

$5.11

SOL

Female Housing, 2 Circuits

515177192

$6.32

SOL

Lock

710001152

$3.48

SOL

Seal Wire

710001153

$1.79

SOL

Terminal

710000925

$2.55

TAS

Clip Bracket Connector (edge)

409210100

$2.00

TAS

Housing

710001231

$12.05

TAS

Lock 6 Positions

710005296

$0.77

TAS

Seal

710001233

$2.55

TAS

Terminal

710001224

$3.02

TELL TALE

Female Terminal Housing, 4 Circuits

515175845

$8.02

TELL TALE

Female Terminal

515175231

$4.12

TL L

Housing-Female

710005392

$4.62

TL L

Lock

710005394

$3.68

TL L

Seal

278001482

$2.55

TL L

Female Terminal

710001134

$6.03

TL R

Housing-Female

710005392

$4.62

TL R

Lock

710005394

$3.68

TL R

Seal

278001482

$2.55

TL R

Female Terminal

710001134

$6.03

TRL

Female Housing, 6 Circuits

710000081

$8.29

TRL

Wire Seal

710000402

$4.42

TRL

Female Terminal

409012100

$3.73
