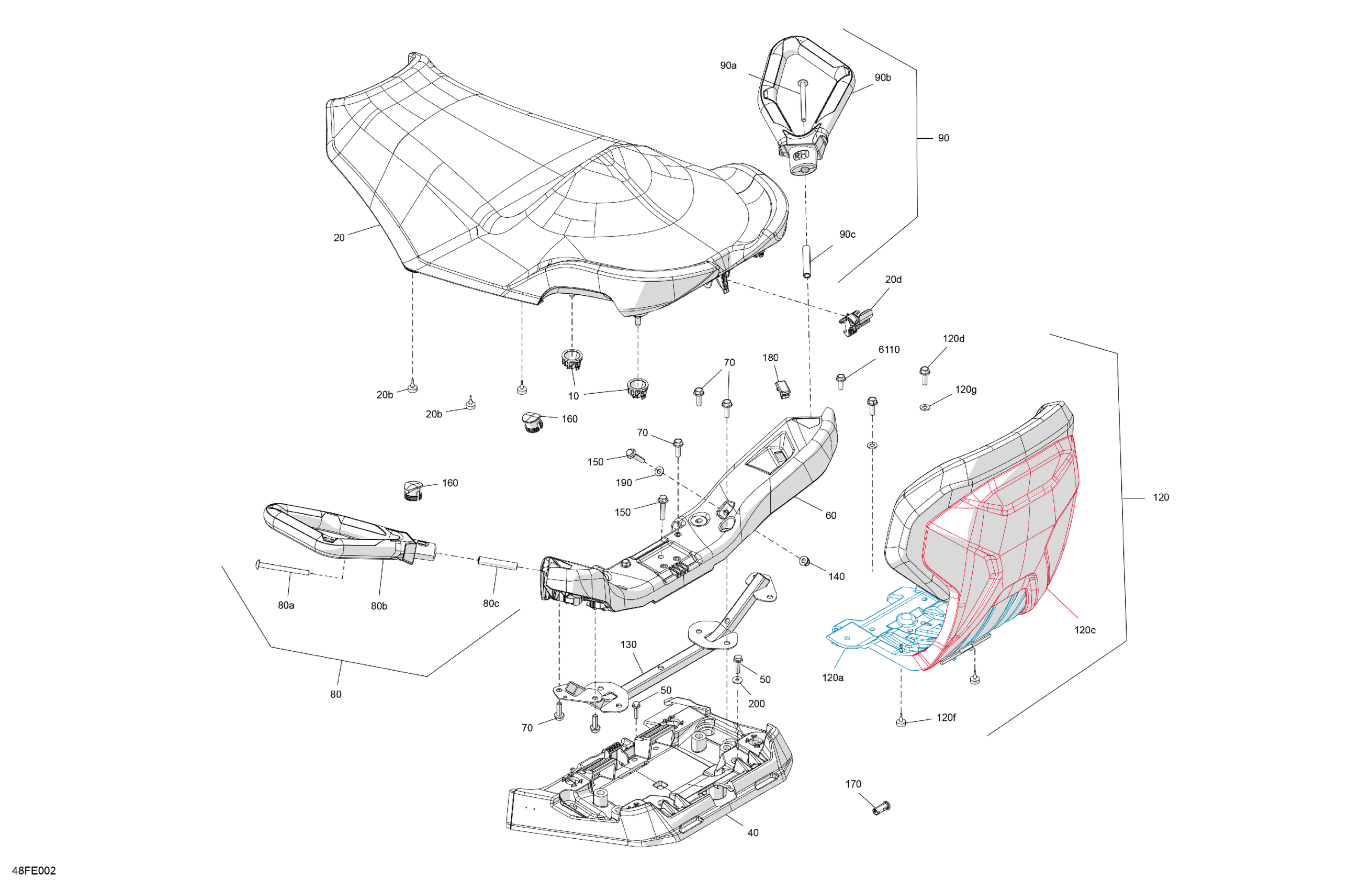

Can-Am CE - OUTL-PRO-MAX - 4X4 - XU - HD7 - 2BSB - Compass Green - 2025 Body - Seat Diagram

Seat Stopper

708003609

$9.11

2 Places Seat | Includes 30 to 30b

708003927

$323.05

Seat Stopper

708003866

$3.61

Seat Latch

708003926

$6.45

Seat Anchorage

708003811

$106.12

Hex. Flange Screw M6 X 25

207662544

$0.53

Handle Support This part replaces 708003812.

708003812

$69.20

Hex. Flange Screw M8 X 25

207682544

$0.90

LH Passenger Seat Handle Kit | Includes 28, 44

703500806

$63.17

Torx Truss M8 X 90

250000806

$6.15

LH Passenger Seat Handle Kit | Includes 28, 44

703500806

$63.17

Sleeve

705006129

$14.75

RH Passenger Seat Handle Kit | Includes 28, 44

703500807

$63.17

Torx Truss M8 X 90

250000806

$6.15

RH Passenger Seat Handle Kit | Includes 28, 44

703500807

$63.17

Sleeve

705006129

$14.75

Backrest Support Ass'y | Includes 120 to 120g

708004004

$433.82

Backrest Support

708003937

$184.58

Backrest Trim

708003191

$221.51

Hex. Flange Screw M8 X 25

207682544

$0.90

Seat Stopper

708003866

$3.61

Flat Washer 8 mm

234081410

$0.69

Handle Support Reinforcement Ass'y

708004010

$36.89

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex. Flange Screw M8 X 40

207684054

$2.06

Cap

708003592

$1.37

Pilot Lamp Cap

710003910

$3.85

Insert

708001511

$3.85

Flat Washer 8 mm

234081410

$0.69

Flat Washer 6 mm

234062410

$0.64

Hex. Flange Screw M8 X 25

207682544

$0.90
