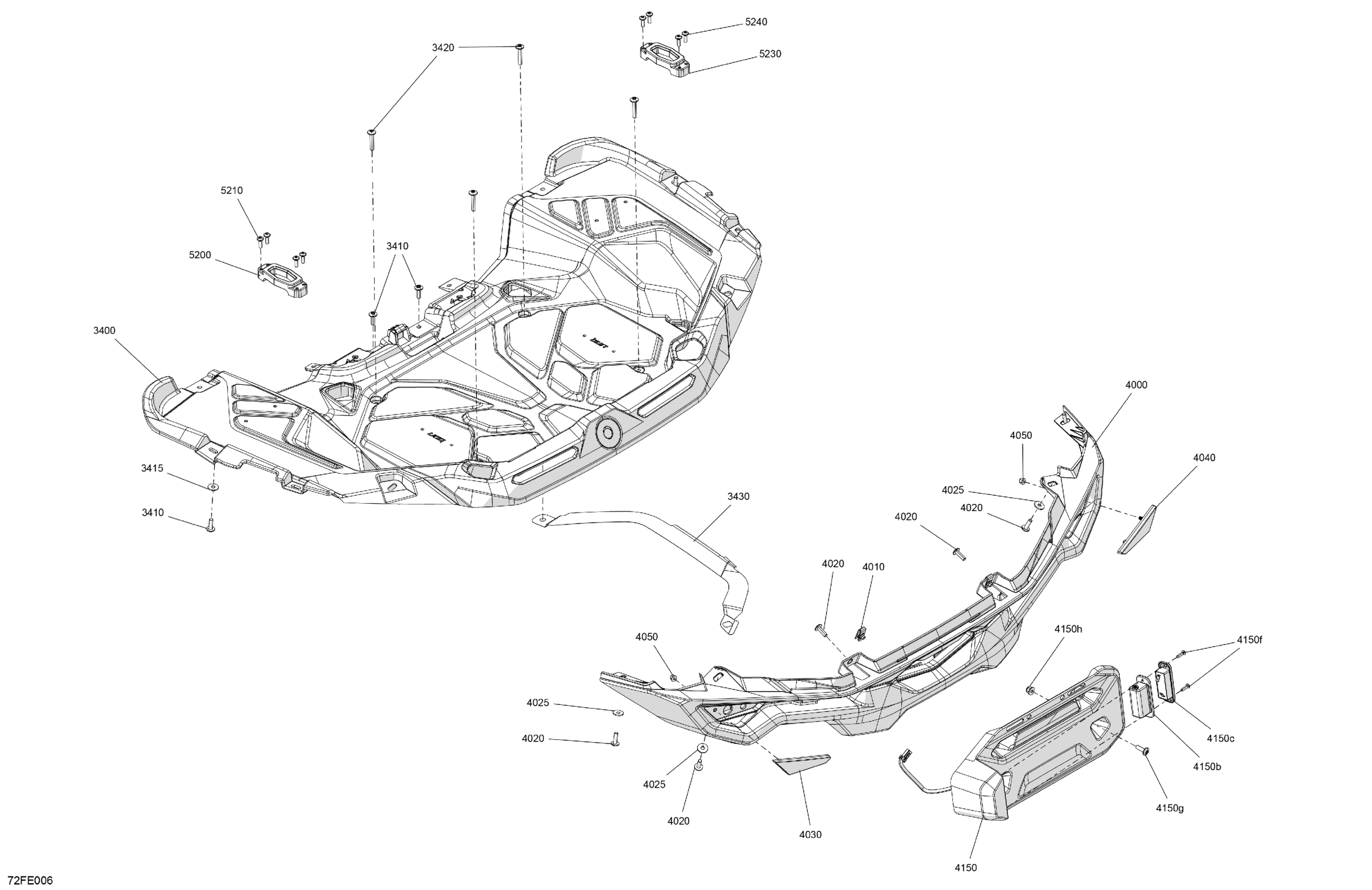

Can-Am CE - OUTL-PRO-MAX - 4X4 - XU - HD7 - 2BSB - Compass Green - 2025 Body - Rear Section Diagram

Description

Price

3400

Rear Multi Purpose Support Kit

715009542

$139.97

3410

Screw Torx M6 X 20

250001257

$1.34

3415

Flat Washer 6 mm

234062410

$0.64

3420

Screw Torx M6 X 35

250001258

$1.74

3430

Heat Shield

705018564

$3.98

4000

Rear Light Support

705014833

$50.74

4010

Panel Nut M6 X 1.0

250100198

$1.73

4020

Torx-Truss M/S M6 X 25

250001000

$4.33

4025

Flat Washer 6 mm

234062410

$0.64

4030

Red, LH Rear Reflector

705014922

$7.86

4040

Red, RH Rear Reflector

705014923

$7.86

4050

Hex. Flange Elastic Nut M5

233251414

$1.66

4150

License Plate Support Kit | Includes 4150 to 4150h

710008955

$134.99

4150b

Rear Connector Guard

710008469

$9.23

4150c

License Light

710005501

$56.89

4150f

Flange Torx Screw K40 X 16

250000287

$1.74

4150g

Torx Screw M6 X 20

250000722

$1.34

4150h

Hex. Flange Elastic Nut M6

233261466

$1.66

5200

Linq Base Kit

715002350

$21.42

5210

Torx Screw K50 X 16

250000720

$1.39

5230
