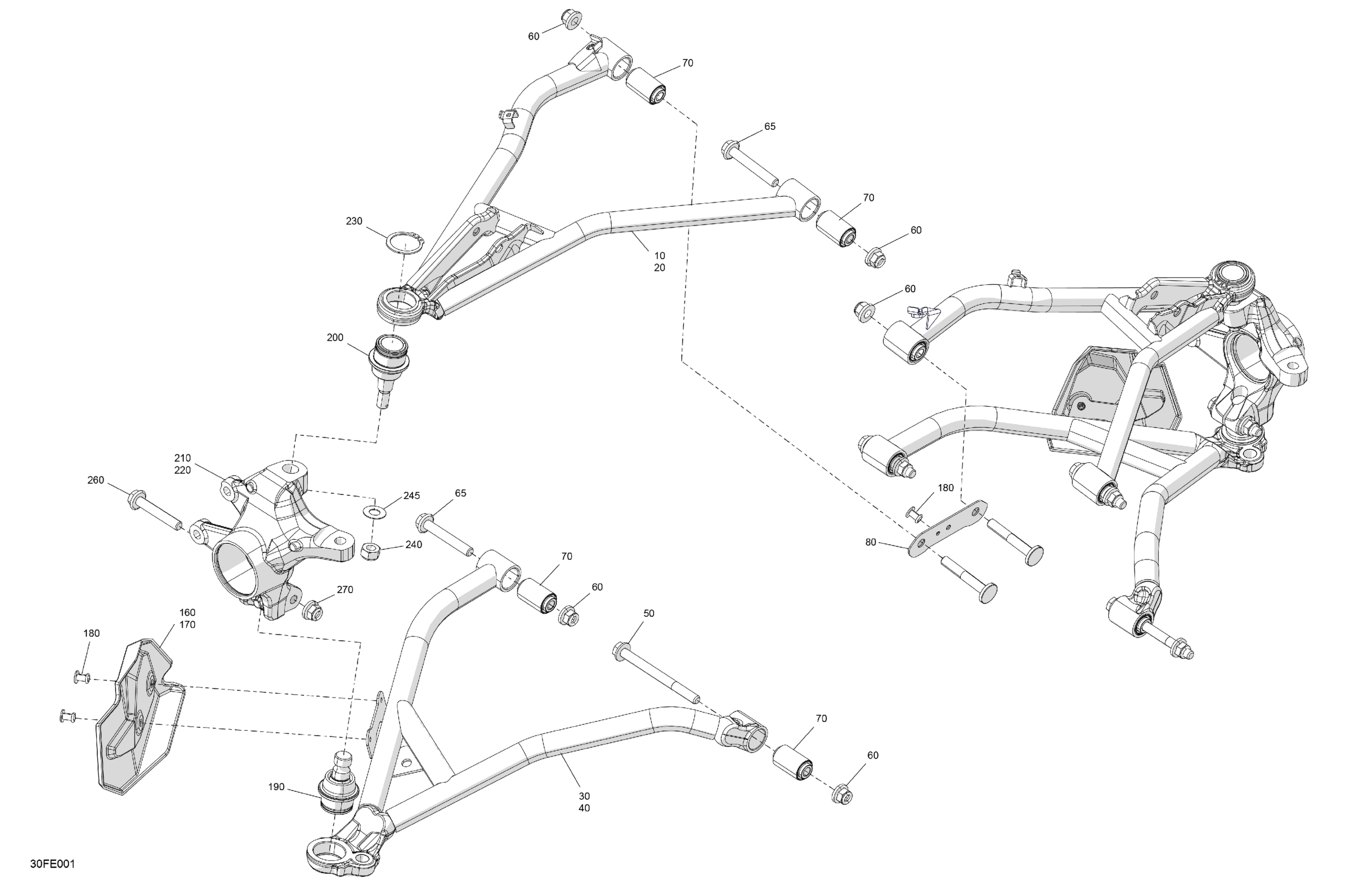

Can-Am CE - OUTL-PRO-MAX - 4X4 - XU - HD7 - 2BSB - Compass Green - 2025 Suspension - Front Components Diagram

Description

Price

LH Upper Suspension Arm

706206099

$147.73

RH Upper Suspension Arm

706206100

$147.73

LH Lower Suspension Arm

706203187

$147.73

RH Lower Suspension Arm

706203188

$147.73

Hex Flange Screw DIN.6921

230601046

$2.52

Hex. Flange Elastic Nut M10

233201436

$2.00

Hex. Flange Screw M10 X 65

207606536

$4.15

Suspension Arm Bushing

706004511

$11.87

Suspension Arm Anchorage

705208352

$117.88

160

LH CV joint Guard

706202134

$8.48

170

RH CV joint Guard

706202135

$8.48

180

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

180

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

190

Ball Joint

706202045

$34.30

200

Ball Joint

706202044

$34.30

210

LH Knuckle

706203212

$164.15

220

RH Knuckle

706203213

$164.15

230

Circlip

293370035

$2.48

240

Hex. Elastic Hex. Nut M12

250100089

$0.45

245

Hardened Washer

706200281

$2.69

260

Hex. Flange Screw M10 X 60

207606044

$3.19

270

Hex. Flange Elastic Nut M10

233201436

$2.00
