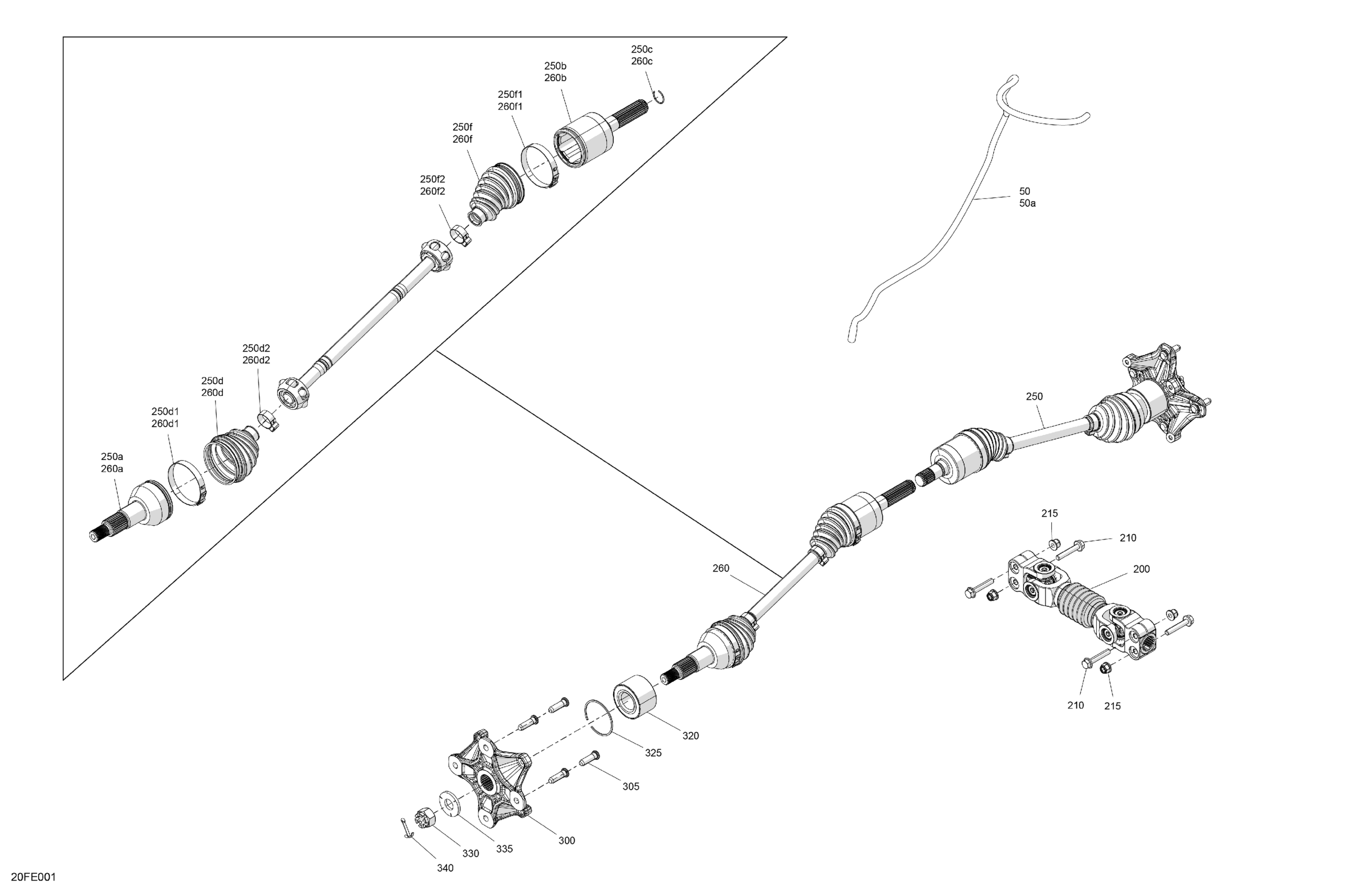

Can-Am CE - OUTL-PRO-MAX - 4X4 - XU - HD7 - 2BSB - Compass Green - 2025 Drive - Front - Common Parts Diagram

Description

Price

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

50a

Not Available As Spare Parts

XXX

Unavailable

200

Front Drive Axle

705403806

$175.34

210

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.79

215

Hex. Elastic Flange Nut M8

233281416

$1.43

250

RH Front CV Joint | Includes 250 to 250f

705402250

$226.84

250a

JOINT CV FIX - Call your local BRP dealership

715500453

Unavailable

250b

PLUNGING JOINT - Call your local BRP dealership

715500454

Unavailable

250c

Circlip Joint

715500455

$4.19

250d

CV Joint Boot Kit | Includes 250d to 250d2

715500456

$39.52

250d1

Clamp Large

715500472

$4.94

250d2

Clamp Small

715500473

$4.45

250f

CV Joint Boot Kit | Includes 250f to 250f2

715500457

$39.52

250f1

Clamp Large

715500474

$4.94

250f2

Clamp Small

715500473

$4.45

260

LH Front CV Joint | Includes 260 to 260f

705402251

$226.84

260a

JOINT CV FIX - Call your local BRP dealership

715500453

Unavailable

260b

Plunging Joint

715500458

$240.27

260c

Circlip Joint

715500455

$4.19

260d

CV Joint Boot Kit | Includes 250d to 250d2

715500456

$39.52

260d1

Clamp Large

715500472

$4.94

260d2

Clamp Small

715500473

$4.45

260f

CV Joint Boot Kit | Includes 250f to 250f2

715500457

$39.52

260f1

Clamp Large

715500474

$4.94

260f2

Clamp Small

715500473

$4.45

300

Wheel Hub

705503257

$94.00

305

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.18

320

Ball Bearing

293350150

$50.34

325

Circlip

293370019

$4.68

330

Hex. Flange Castellated Nut M18

232291413

$3.24

335

Conical Spring Washer M18

250200171

$6.06

340

Cotter Pin

250400071

$2.00
