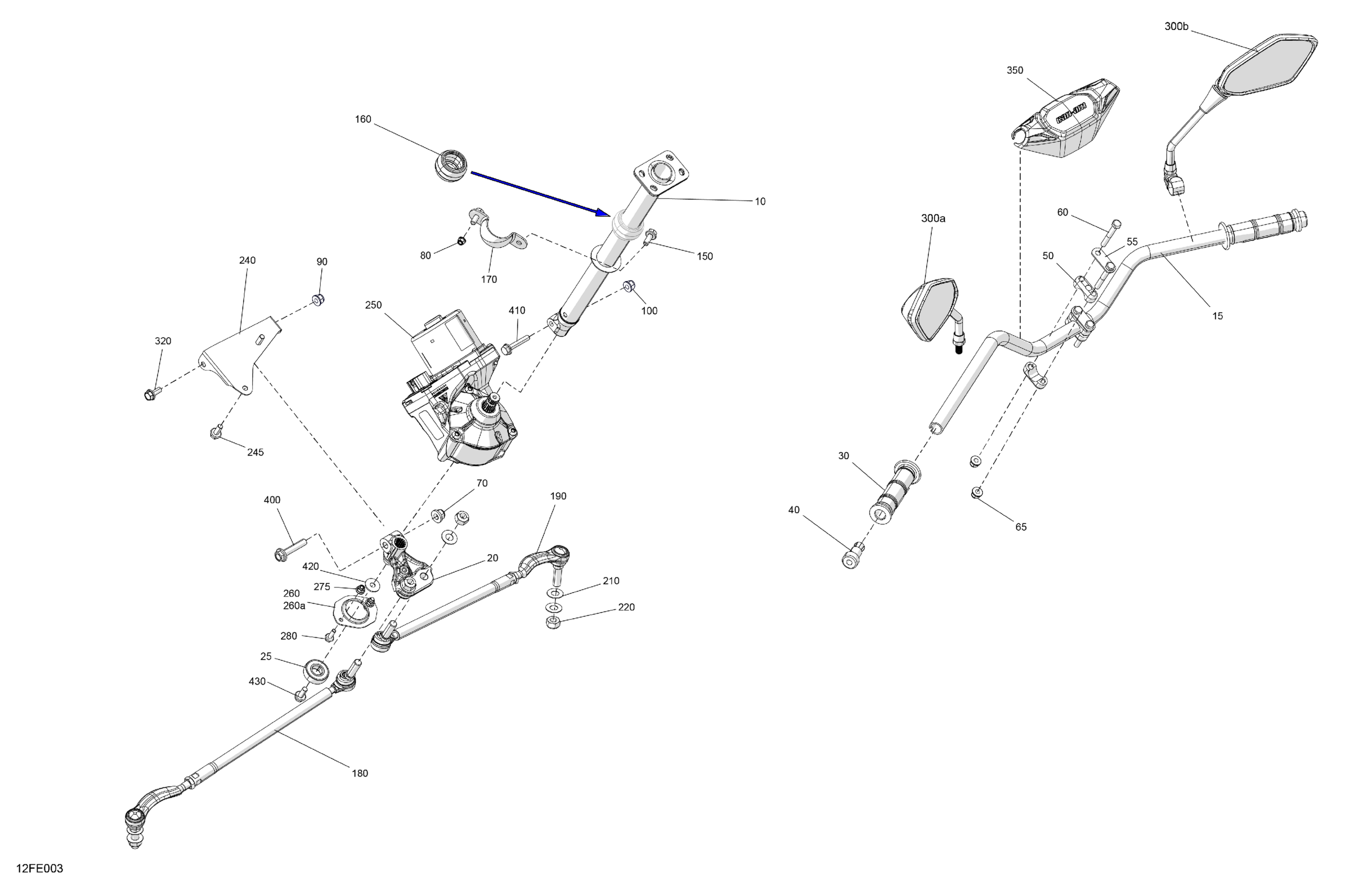

Can-Am CE - OUTL-PRO-MAX - 4X4 - XU - HD7 - 2BSB - Compass Green - 2025 Mechanic - Steering Diagram

#

Description
Price

10

Steering Column

709402739

$110.74

15

Handlebar

709402551

$59.99

20

Pitman Arm

709402991

$50.74

25

Ball Bearing

709402499

$16.89

30

Handle Grip

709400493

$14.09

40

End Piece

709400449

$8.29

50

Steering Support

709401799

$20.74

55

Stiffner

709400509

$4.43

60

Hex. Screw M8 X 60

207086046

$2.30

65

Hex. Elastic Flange Nut M8

233281416

$1.25

70

Hex. Flange Elastic Nut M10

233201436

$1.74

80

Hex. Elastic Flange Nut M8

233281416

$1.25

90

Hex. Elastic Flange Nut M8

233281416

$1.25

100

Hex. Elastic Flange Nut M8

233281416

$1.25

150

Hex. Flange Screw M8 X 20

207682044

$0.92

160

Spherical Bushing

709402169

$6.14

170

Upper Column Attachment

709400827

$1.00

180

LH Tie Rod | Includes 180 to 180a

709402826

$59.37

190

RH Tie Rod | Includes 190 to 190a

709402827

$59.97

210

Hardened Washer

706200281

$2.34

220

Hex. Elastic Hex. Nut M12

250100089

$0.39

240

Power Steering Support

709402182

$16.89

245

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

250

Power Steering Ass'y | Model With DPS

709403187

$1,158.04

260

Lower Bearing Support | Includes 260 to 260a

709402360

$10.98

260a

Lower Bearing Support

709402713

$41.51

275

Hex. Flange Elastic Nut M6

233261466

$1.66

280

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

300a

LH Rearview Mirror

708200963

$34.19

300b

RH Rearview Mirror

708201092

$46.12

320

Hex. Flange Screw M8 X 20

207682044

$0.92

350

Handlebar Trim

709402570

$23.05

400

Hex. Flange Screw M10 X 50, Scotch Grip

207505046

$7.20

410

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.30

420

Flat Washer 8 mm

234082410

$1.11

430

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39
