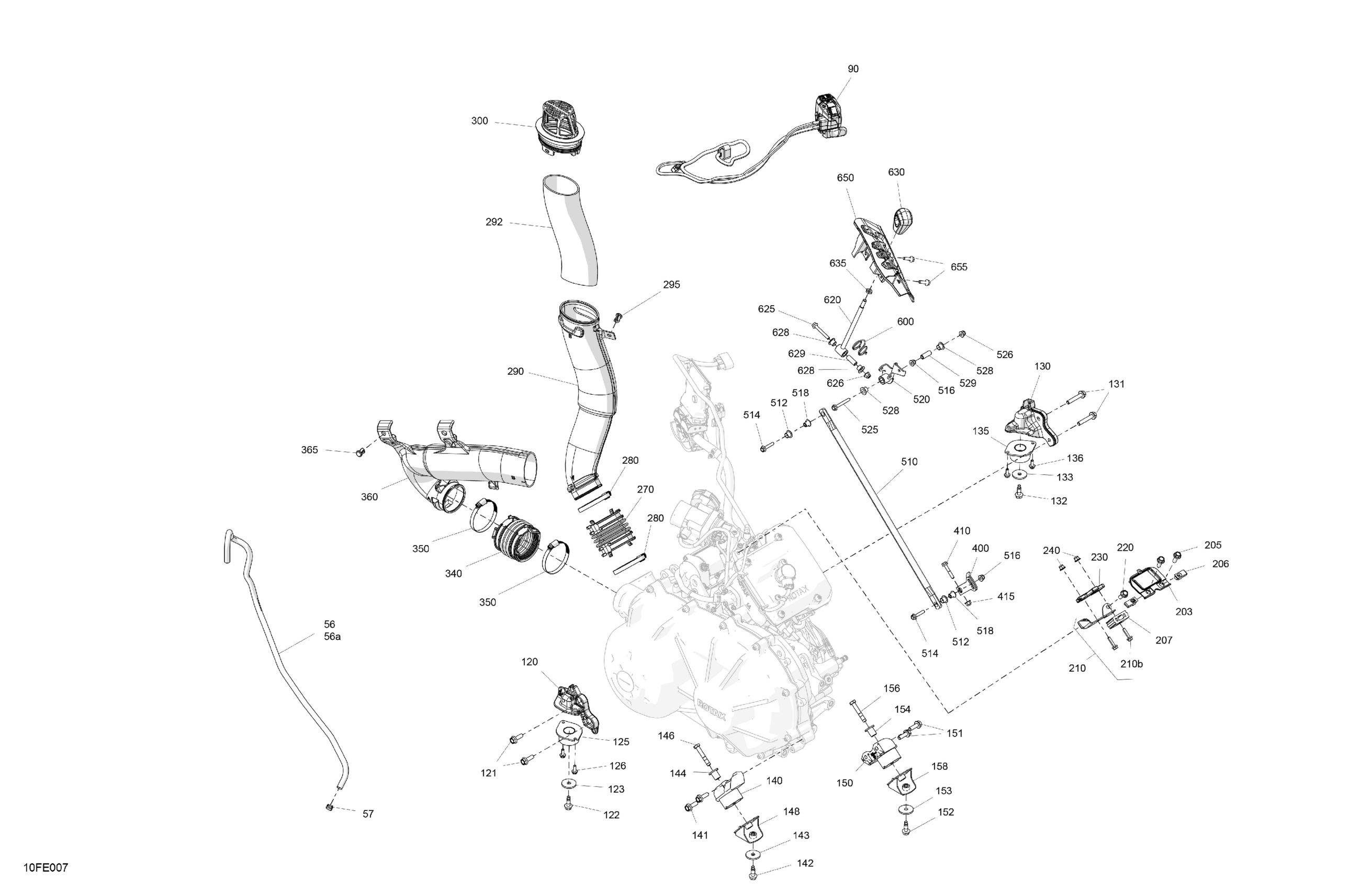

Can-Am CE - OUTL-PRO-MAX - 4X4 - XU - HD7 - 2BSB - Compass Green - 2025 Engine - System Diagram

#

Description
Price

56

Hose 709001424 - 0.880M | Includes 56 to 56a

707003598

Unavailable

56a

Hose 6.35MM ID

219704534

$25.99

57

Spring Clamp

414415200

$0.88

90

Hand Lever Accelerator

707003088

$204.99

120

LH Front Engine Support

707003100

$13.99

121

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

122

Hex Screw M8 S.Grip

250001085

$1.68

123

Washer

250200203

$2.11

125

Vibration Damper

512061508

$58.49

126

Hex. Flange Screw M6 X 16

210261640

$2.11

130

RH Front Engine Support

707003099

$13.99

131

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$7.20

132

Hex Screw M8 S.Grip

250001085

$1.68

133

Washer

250200203

$2.11

135

Vibration Damper

512061508

$58.49

136

Hex. Flange Screw M6 X 16

210261640

$2.11

140

Engine Support Ass'y

707003102

$80.99

141

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

142

Hex Screw M8 S.Grip

250001085

$1.68

143

Washer

250200203

$2.11

144

Flanged Bushing

707003104

$5.08

146

Hex. Screw M8 X 50, Scotch Grip

207285060

$2.11

148

Support

707003105

$10.49

150

Engine Support Ass'y

707003102

$80.99

151

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

152

Hex Screw M8 S.Grip

250001085

$1.68

153

Washer

250200203

$2.11

154

Flanged Bushing

707003104

$5.08

156

Hex. Screw M8 X 50, Scotch Grip

207285060

$2.11

158

Support

707003105

$10.49

203

Stopper

707003420

$13.99

205

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

206

Panel Nut M8 X 1.25

250100118

$2.09

207

Rubber Stopper

707003419

$7.29

210

Engine Stopper | Includes 210 to 210b

707003517

$22.99

210b

Hex.Flange Screw M6 X 25

207662504

$4.44

220

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

230

Engine Stopper

705212811

$22.99

240

Hex. Flange Elastic Nut M6

233261466

$2.00

270

Duct Fitting

707002414

$19.99

280

Norma Clamp

293650096

$3.17

290

CVT Cooling Duct IN

707002797

$46.49

292

Acoustic Insulation

706600408

$44.99

295

Tuflok Plastic Rivet

293150230

$1.47

300

End Piece

707002886

$19.49

340

Duct Fitting

707002573

$20.99

350

Norma Clamp

293650091

$11.12

360

CVT Cooling Duct OUT

707003572

$49.99

365

Tuflok Plastic Rivet

293150230

$1.47

400

Clutch Lever

707002505

$22.49

410

Hex. Flange Screw M6 X 35

207663544

$0.90

415

Hex. Flange Elastic Nut M6

233261466

$2.00

510

Link Rod

707003444

$30.99

512

Flanged Bushing

707003072

$1.25

514

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

516

Hex. Flange Elastic Nut M6

233261466

$2.00

518

Flanged Bushing

707002672

$7.73

520

Clutch Lever

707002809

$22.49

525

Hex. Flange Screw

207664554

$2.11

526

Hex. Flange Elastic Nut M6

233261466

$2.00

528

Flanged Bushing

707003072

$1.25

529

Bushing

707002803

$5.24

600

Torsion Spring

707002804

$2.68

620

Gearshift Lever

707002805

$22.49

625

Hex. Flange Screw

207664554

$2.11

626

Hex. Flange Elastic Nut M6

233261466

$2.00

628

Flanged Bushing

707003072

$1.25

629

Bushing

707002803

$5.24

630

Shift Lever Tip

707003177

$9.59

635

Hex. Jam Nut M8

232180491

$7.51

650

Shift Lever Grille

707002808

$28.99

655

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11
