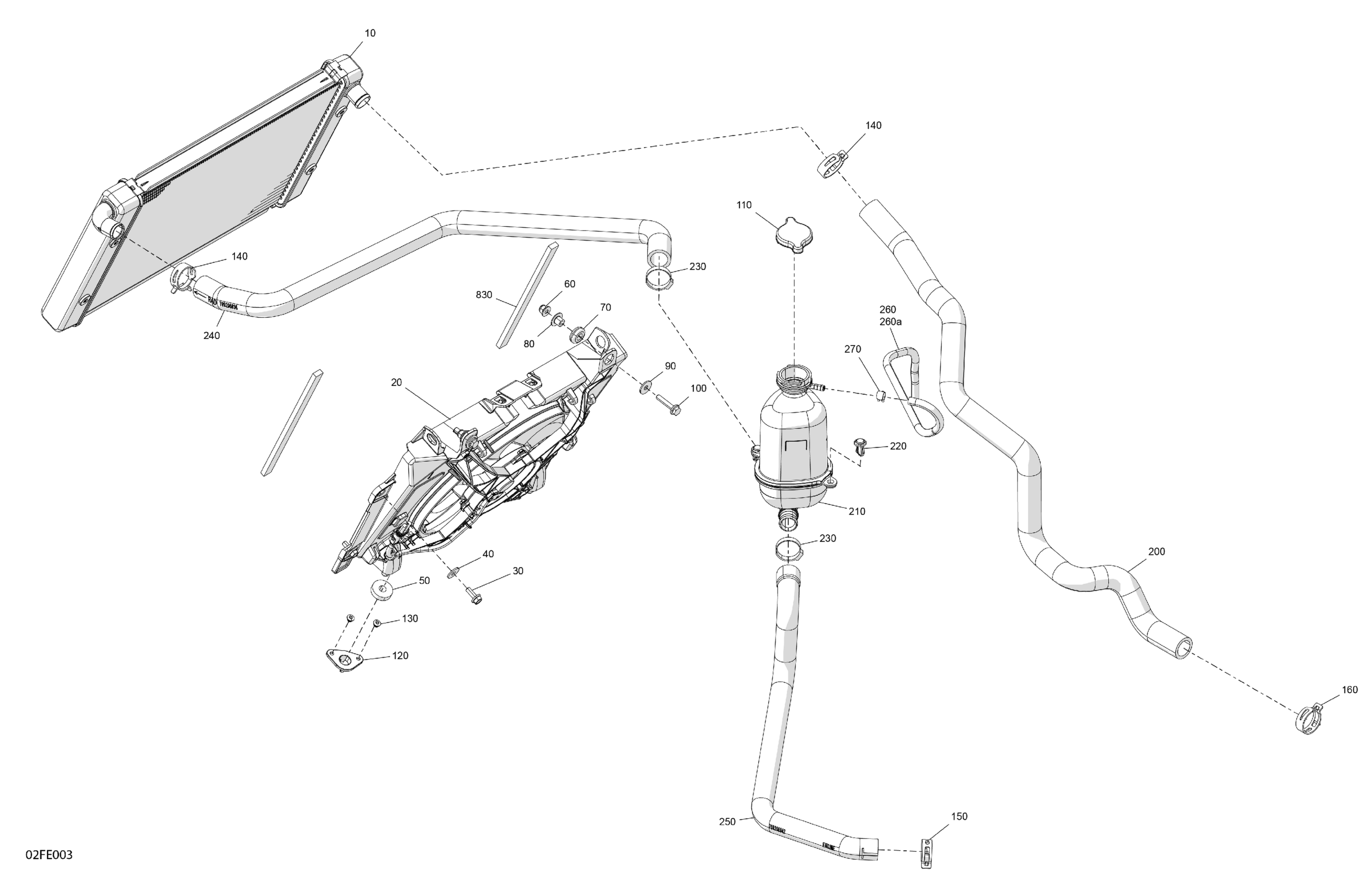

Can-Am CE - OUTL-PRO-MAX - 4X4 - XU - HD7 - 2BSB - Compass Green - 2025 Engine - Cooling Diagram

Description

Price

Radiator

709200762

$383.05

Cooling Fan

715009561

$239.97

Hex Flange Screw M6 X 16

250000906

$4.39

Flat Washer 6 mm

234062410

$0.64

Grommet

709200948

$7.09

Hex. Flange Elastic Nut M6

233261466

$1.66

Overmolded Grommet

293720130

$4.38

Bushing

709001288

$7.71

Flat Washer

250200082

$0.35

100

Hex. Flange Screw M6 X 30

207663046

$1.42

110

Radiator Pressure Cap

709200207

$18.82

120

Radiator Support

709201149

$7.37

130

Pop Rivet 3/16 X ,425

293150293

$0.26

140

Norma Spring Clamp

293650108

$4.00

150

Norma Spring Clamp

293650109

$4.00

160

Norma Spring Clamp

293650108

$4.00

200

Coolant Hose

709201483

$32.28

210

Coolant Tank

715009560

$96.89

220

Tuflok Plastic Rivet

293150230

$1.21

230

Crimp Clamp

293650331

$4.28

240

Coolant Hose

709201481

$32.28

250

Coolant Hose

709201482

$32.28

260

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

260a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

270

Spring Clamp

414554800

$0.83

830

Seal 3000MM Long

219704386

$27.07
