Partiron

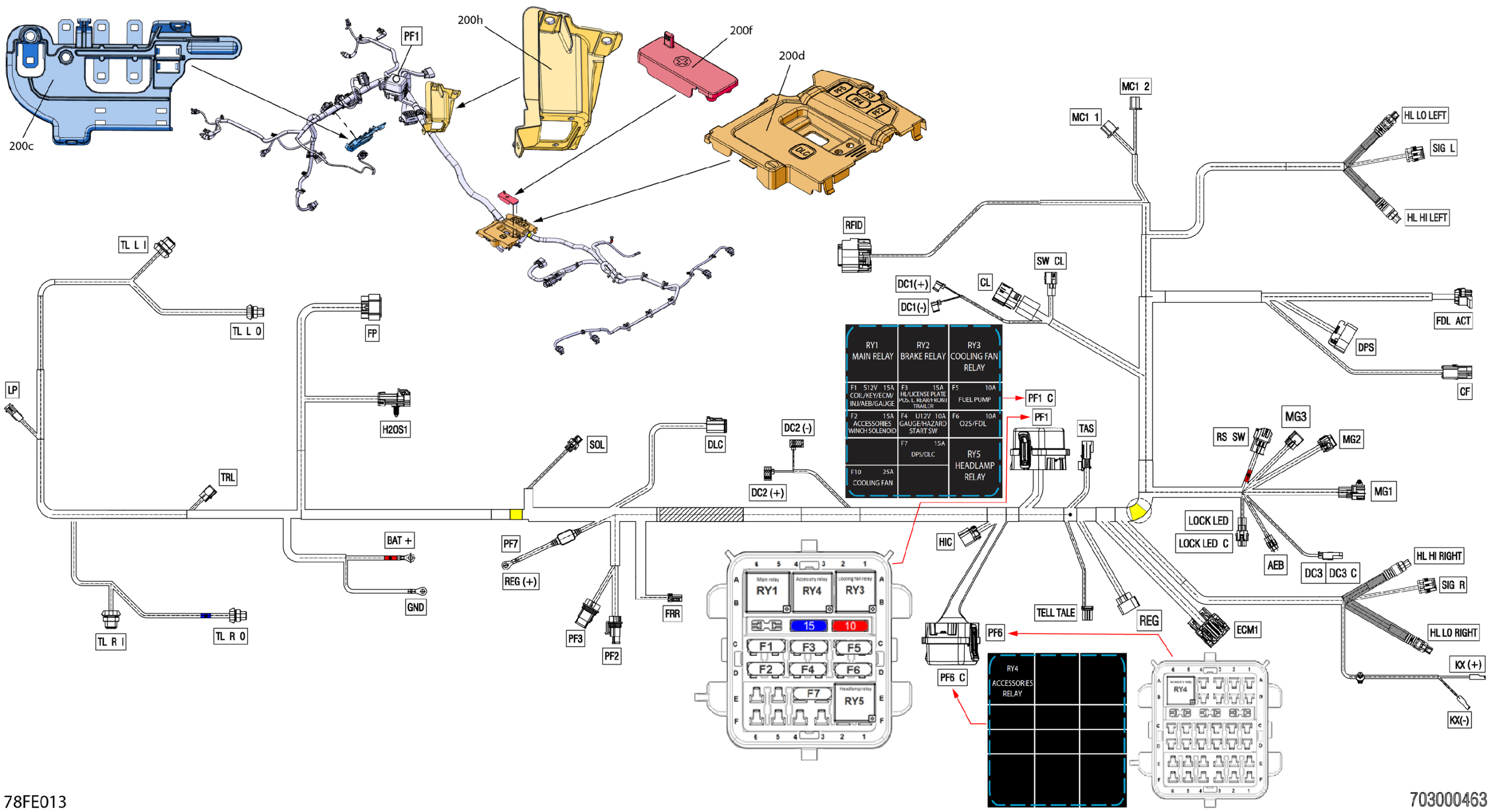

Can-Am CE - OUTL-PRO-MAX - 4X4 - XU - 850 - 4YSA - Granite Grey - 2025 Electric - Main Harness - 710009383 Diagram

#

Description
Price

200

Main Wiring Harness

710009383

$879.99

200c

Connector Support

710007290

$19.99

200d

Fuse Holder Cover

710007296

$47.49

200f

Positive Terminal Cap

710008598

$11.49

200h

Fuse Box Support

710009930

$8.81

AEB

Sumitomo Female Connector 2 Cavities

710008152

$10.33

AEB

Wire Seal

710000402

$4.55

AEB

Female Terminal

409012100

$4.55

BAT (+)

Open Barrel Terminal

278001392

$4.79

CF

Clip

710001038

$5.39

CF

Female Housing, 2 Circuits

278000217

$9.59

CF

Wire Seal

278000218

$4.39

CF

Male Terminal

409004300

$5.61

CL

Female Housing 20 Circuits

278002858

$22.49

CL

Sealing Cap

278002860

$1.79

CL

Female Terminal

515178018

$1.19

D2

Diode

409012700

$11.12

DC1

Female Terminal

409010300

$4.39

DC2

Female Terminal

409010300

$4.39

DC3

Female Housing, 2 Circuits

515175658

$16.18

DC3

Female Terminal

515175231

$4.39

DC3 C

Male Housing, 2 Circuits

710000667

$8.32

DLC

Female Housing 6 Circuits

710002706

$20.49

DLC

Lock

710002705

$4.44

DLC

Female Terminal

710005438

$4.29

DLC

Female Terminal

710005439

$4.44

DPS

Female Housing

710004989

$7.41

DPS

Lock

710001222

$2.09

DPS

Lock | PACKARD 15430900

710005098

$2.09

DPS

Plug

710002075

$3.09

DPS

Wire Seal

278002186

$5.50

DPS

Seal

710003153

$0.99

DPS

Female Terminal

278002187

$6.39

DPS

Terminal

710001873

$2.09

ECM1

Cover

515178601

$18.49

ECM1

Housing 56 Circuits

515178595

$29.49

ECM1

Plate

515178604

$4.59

ECM1

Plug

515178599

$3.17

ECM1

Plug

515178600

$3.17

ECM1

Plate

515178603

$4.59

ECM1

Terminal

515178596

$3.72

ECM1

Terminal

515178598

$3.61

ECM1

Terminal

515178597

$15.36

FDL ACT

Connector Delphi Female 6 Cavities

710006038

$80.49

FDL ACT

Lock Connector

710006039

$4.59

FDL ACT

Seal

278001482

$3.19

FDL ACT

Female Terminal

278001481

$3.49

FP

Male Housing, 4 Circuits

278002185

$7.90

FP

Lock

710001222

$2.09

FP

Wire Seal

278002186

$5.50

FP

Seal

710003153

$0.99

FP

Female Terminal

278002187

$6.39

FP

Terminal

710001873

$2.09

FRR

Female Housing, 2 Circuits

515175658

$16.18

FRR

Female Terminal

710003896

$2.19

GND

Open Barrel Terminal

278001392

$4.79

HIC

Housing

515177205

$20.49

HIC

Seal Wire

710001332

$3.28

HIC

Terminal

710001228

$3.28

HL HI LEFT

Housing

710007660

$7.94

HL HI LEFT

Lock

710001152

$4.39

HL HI LEFT

Wire Seal

710001163

$7.69

HL HI LEFT

Female Terminal

710001164

$8.89

HL HI RIGHT

Housing

710007660

$7.94

HL HI RIGHT

Lock

710001152

$4.39

HL HI RIGHT

Wire Seal

710001163

$7.69

HL HI RIGHT

Female Terminal

710001164

$8.89

HL LO LEFT

Female Housing, 2 Circuits

515177192

$9.12

HL LO LEFT

Lock

710001152

$4.39

HL LO LEFT

Wire Seal

710001163

$7.69

HL LO LEFT

Female Terminal

710001164

$8.89

HL LO RIGHT

Female Housing, 2 Circuits

515177192

$9.12

HL LO RIGHT

Lock

710001152

$4.39

HL LO RIGHT

Wire Seal

710001163

$7.69

HL LO RIGHT

Female Terminal

710001164

$8.89

HO2S1

Housing

710002466

$3.19

HO2S1

Lock

515178661

$4.44

HO2S1

Seal

278001482

$3.19

HO2S1

Gold Terminal

710002597

$3.19

HO2S1

Terminal

710000736

$5.50

KX

Female Terminal Housing, 1 Circuit

409010400

$7.62

KX

Female Terminal

409010100

$5.61

LOCK LED

Wire Seal

710000402

$4.55

LOCK LED

Male Terminal

409011300

$5.93

LOCK LED

Male Terminal

409011300

$5.93

LOCK LED C

Cap

710000080

$8.29

LP

Male Terminal Housing, 2 Circuits

515175654

$9.12

LP

Male Terminal

515175232

$1.58

MC1 1

Female Housing

710004047

$1.49

MC1 1

Terminal

710002315

$4.55

MC1 2

Female Housing

710004048

$1.49

MC1 2

Terminal

710002315

$4.55

MG1

Connector

710007097

$19.49

MG1

Wire Seal

710000402

$4.55

MG1

Male Terminal

409011300

$5.93

MG2

Connector

710007098

$12.11

MG2

Cap

710000080

$8.29

MG2

Seal

409012300

$4.54

MG2

Wire Seal

710000402

$4.55

MG2

Female Terminal

409012100

$4.55

MG3

Female Housing 6 Circuits

710001445

$8.54

MG3

Wire Seal

710000402

$4.55

MG3

Female Terminal

409012100

$4.55

PF1

Fuse Base Ass'y

278003448

$31.99

PF1

Wire Seal

278000216

$3.19

PF1

Wire Seal

278001065

$7.69

PF1

Wire Seal

278000218

$4.39

PF1

Female Terminal

710000918

$7.69

PF1

Female Terminal

278002578

$1.04

PF1 C

Fuse Cover

278003553

$3.72

PF1 C

Fuses Decal

710009389

$0.01

PF1 C-SP1

Little Fuse, 10 Amperes

710000744

$8.79

PF1 C-SP2

Little Fuse, 15 Ampere

710000745

$8.49

PF1

Little Fuse, 25 Ampere

278002389

$4.55

PF1-F1

Little Fuse, 15 Ampere

710000745

$8.49

PF1

Little Fuse, 25 Ampere

278002389

$4.55

PF1-F2

Little Fuse, 15 Ampere

710000745

$8.49

PF1-F3

Little Fuse, 15 Ampere

710000745

$8.49

PF1-F4

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F5

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F6

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F7

Little Fuse, 15 Ampere

710000745

$8.49

PF1-RY1

Relay

715900824

$21.99

PF1-RY2

Relay

715900824

$21.99

PF1-RY3

Relay

715900824

$21.99

PF1-RY5

Relay

715900824

$21.99

PF2

Fuse

710001613

$8.79

PF2

Fuse Holder

278001325

$8.79

PF2

Female Terminal

710000357

$7.69

PF3

Fuse

710001613

$8.79

PF3

Fuse Holder

278001325

$8.79

PF3

Female Terminal

710000357

$7.69

PF3

Female Terminal

710000113

$6.99

PF6

Fuse Base Ass'y

278003448

$31.99

PF6

Wire Seal

278000216

$3.19

PF6

Wire Seal

710000504

$4.39

PF6

Wire Seal

278001065

$7.69

PF6

Female Terminal

710000918

$7.69

PF6

Female Terminal

278002578

$1.04

PF6 C

Fuse Cover

278003553

$3.72

PF6 C

Fuses Decal

710009390

$0.01

PF6-RY4

Relay

715900824

$21.99

PF7

Fuse, 50 AMP

710001048

$5.08

PF7

Fusebox 60 Amp

710002243

$25.99

R1

Resistor

710005179

$2.24

R2

Resistor

710006155

$2.24

R3

Resistor

710007300

$2.24

R4

Resistor

710008735

$3.28

REG

Female Housing, 3 Circuits

710000879

$25.99

REG

Cap

710000882

$11.49

REG

Seal

710001932

$3.27

REG

Terminal

710001934

$5.50

REG (+)

Terminal

710000913

$5.61

RFID

Female Delphi Connector 5 Cavities

710007151

$17.04

RFID

Lock

710007243

$4.39

RFID

Wire Seal

710001163

$7.69

RFID

Female Terminal

710001164

$8.89

RS SW

Male Terminal Housing, 6 Circuits

710000835

$17.04

RS SW

Wire Seal

710000402

$4.55

RS SW

Male Terminal

409011300

$5.93

SIG L

Female Housing, 3 Circuits

409209600

$35.99

SIG L

Wire Seal

515176621

$7.49

SIG L

Female Terminal

710001340

$5.89

SIG R

Female Housing, 3 Circuits

409209600

$35.99

SIG R

Wire Seal

515176621

$7.49

SIG R

Female Terminal

710001340

$5.89

SOL

Female Housing, 2 Circuits

515177192

$9.12

SOL

Lock

710001152

$4.39

SOL

Seal Wire

710001153

$2.21

SOL

Terminal

710000925

$3.19

SW CL

Wire Seal

710000402

$4.55

SW CL

Male Terminal

409011300

$5.93

TAS

Housing

710001231

$13.99

TAS

Lock 6 Positions

710005296

$1.09

TAS

Seal

710001233

$3.19

TAS

Terminal

710001224

$3.19

TELL TALE

Female Terminal Housing, 4 Circuits

515175845

$8.49

TELL TALE

Female Terminal

515175231

$4.39

TL L I

Housing

710000645

$15.36

TL L I

Lock

710000642

$4.59

TL L I

Seal

278001482

$3.19

TL L I

Female Terminal

710001134

$7.69

TL L O

Housing

710002177

$3.19

TL L O

Lock

710002043

$0.90

TL L O

Seal

278001482

$3.19

TL L O

Female Terminal

710001134

$7.69

TL R I

Housing

710000645

$15.36

TL R I

Lock

710000642

$4.59

TL R I

Seal

278001482

$3.19

TL R I

Female Terminal

710001134

$7.69

TL R O

Housing

710002177

$3.19

TL R O

Lock

710002043

$0.90

TL R O

Seal

278001482

$3.19

TL R O

Female Terminal

710001134

$7.69

TRL

Female Housing, 6 Circuits

710000081

$8.79

TRL

Wire Seal

710000402

$4.55

TRL

Female Terminal

409012100

$4.55
