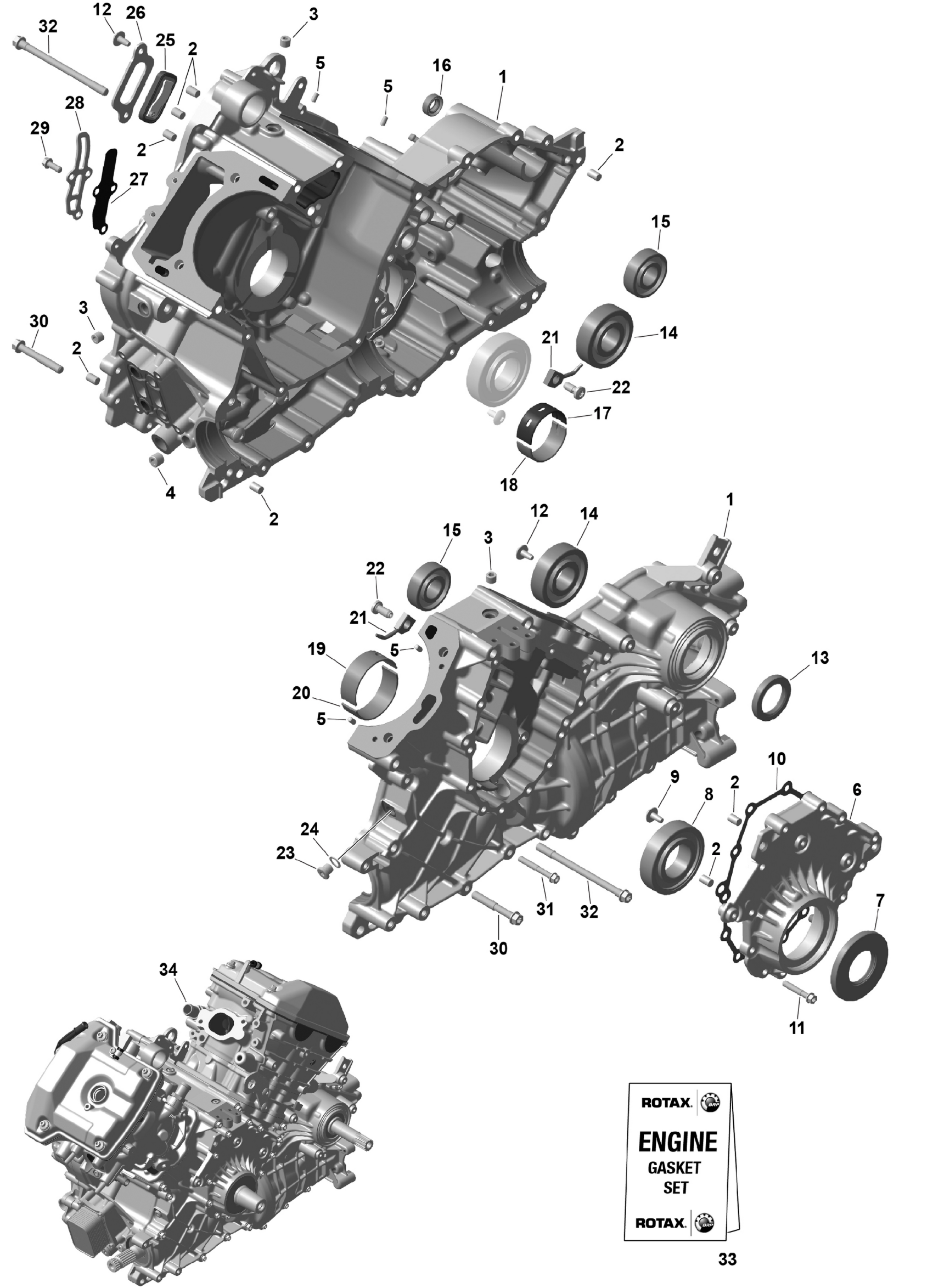

Can-Am CE - OUTL-PRO-MAX - 4X4 - XU - 850 - 4YSA - Granite Grey - 2025 ROTAX - Crankcase Diagram

#

Description
Price

1

Not Available As Spare Parts

XXX

Unavailable

2

Center Pin 8 X 12

420632010

$4.01

3

Plug Screw M10 X 1

420641323

$14.28

4

Plug Screw M12x1,5

420840658

$7.51

5

Drive Pin 5 X 10

420929650

$1.68

6

PTO Cover Ass'y | Includes no. 6-9

420212471

$280.99

7

Oil Seal

420431402

$19.49

8

Ball Bearing

420632749

$10.33

9

Torx Screw M6X13

420240051

$0.90

10

PTO Cover Gasket | Included in gasket set

420230071

$14.28

11

Torx Flange Screw M6 X 35

420440274

$1.01

12

Torx Screw M6X13

420240051

$0.90

13

Oil Seal

420950089

$19.49

14

Ball Bearing

420932822

$30.49

15

Ball Bearing

420932435

$56.99

16

Oil Seal

420250455

$17.38

17

Bearing Sleeve

420933494

$26.49

18

Half Bushing

420933499

$15.87

19

Bearing Sleeve

420233372

$23.99

20

Bearing Sleeve

420233377

$4.65

21

Oil Spray Nozzle

420956856

$35.99

22

Banjo Bolt M8X1 Ass'y

420641283

$24.49

23

Plug Screw M10 X 1.5

420641326

$14.22

24

Oil Seal

420230154

$3.06

25

Reed Valve Ass'y | Included in gasket kit

420224771

$46.49

26

Reed Valve Membrane

420612085

$11.65

27

Reed Valve

420224721

$19.19

28

Reed Valve Stop

420224725

$11.63

29

Torx Flange Screw M6 X 16

420440164

$2.19

30

Torx Flange Screw M8 X 55

420641213

$7.41

31

Torx Flange Screw M6 X 45

420440324

$0.98

32

Flanged Torx Screw M8 X 115

420941571

$6.13

33

Engine Gasket Set

420684161

$476.99

34

Long Block

420100001

$5,615.99
