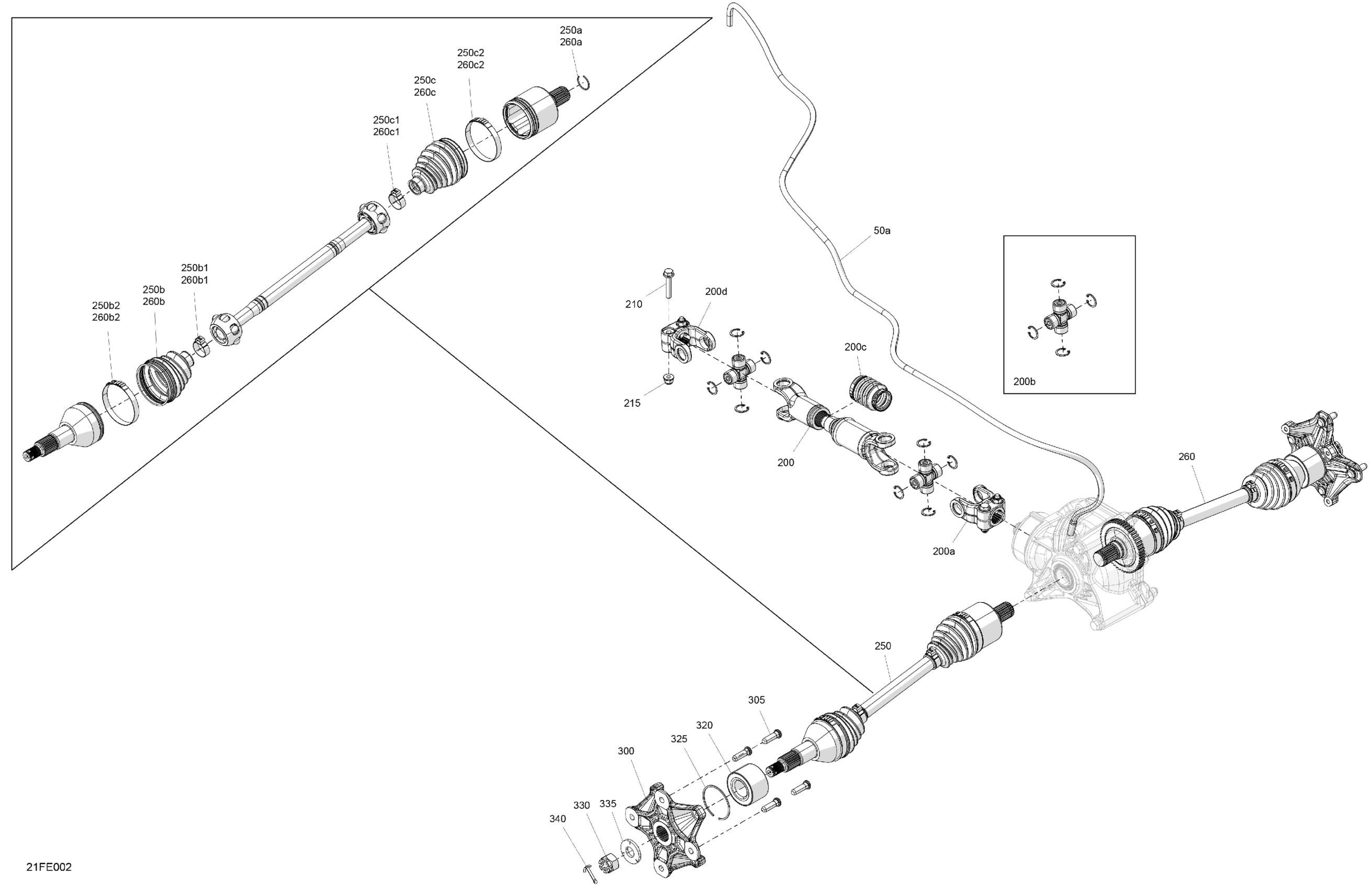

Can-Am CE - OUTL-PRO - 4X4 - XU - HD7 - 1MSF - Compass Green - 2025 Drive - Rear - Common Parts Diagram

Description

Price

50a

Hose 6.35MM ID

219704534

$23.05

200

Rear Drive Axle

705502927

$253.82

200a

Connecting Yoke 18Th

715900938

$23.05

200b

Universal Joint Ass'y

715900911

$46.12

200c

Ball Joint Boot ( 927, 982 )

715900942

$13.83

200d

Connecting Yoke 20Th

715900939

$23.05

210

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.30

215

Hex. Elastic Flange Nut M8

233281416

$1.25

250

CV Joint | Includes 250 to 250c2

705503679

$233.82

250a

Circlip Joint

715500463

$5.52

250b

CV Boot Joint Kit | Includes 250d to 250d2

715500464

$41.51

250b1

Clamp Small

715500475

$5.52

250b2

Clamp Large

715500476

$4.60

250c

CV Boot Joint Kit | Includes 250f to 250f2

715500465

$40.37

250c1

Clamp Small

715500475

$5.52

250c2

Clamp Large

715500477

$5.52

260

CV Joint | Includes 260 to 260c2

705503680

$263.82

260a

Circlip Joint

715500463

$5.52

260b

CV Boot Joint Kit | Includes 250d to 250d2

715500464

$41.51

260b1

Clamp Small

715500475

$5.52

260b2

Clamp Large

715500476

$4.60

260c

CV Boot Joint Kit | Includes 250f to 250f2

715500465

$40.37

260c1

Clamp Small

715500475

$5.52

260c2

Clamp Large

715500477

$5.52

300

Wheel Hub

705503257

$96.42

305

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

320

Ball Bearing

293350150

$51.93

325

Circlip

293370019

$4.98

330

Hex. Flange Castellated Nut M18

232291413

$2.82

335

Conical Spring Washer M18

250200171

$5.28

340

Cotter Pin

250400071

$1.74
